RC4 WIRELESS LUMENDIM M2 Micro Dimmer

The LumenDimM2micro is a battery-powered 2-channel wireless DMX dimmer that combines the best RC4 Harmonized Design™ features with a genuine LumenRadio TiMo radio transceiver. The LumenDimM2micro includes a built-in radio receiver and two pulse-width-modulation (PWM) dimmers. Additionally, any number of RC4 LumenDim devices can be used in a LumenRadio wireless DMX system.

• Wired and Wireless RDM Implementation
• RC4 Digital Persistence™
• RC4 ColorMatch
• RC4 Flkr Effects Engine™
• DMX data in and out
• RC4 HotPatch™
• high-efficiency 6V – 35VDC voltage input range
• 16-bit dimming with multiple PWM frequencies

Spesifications

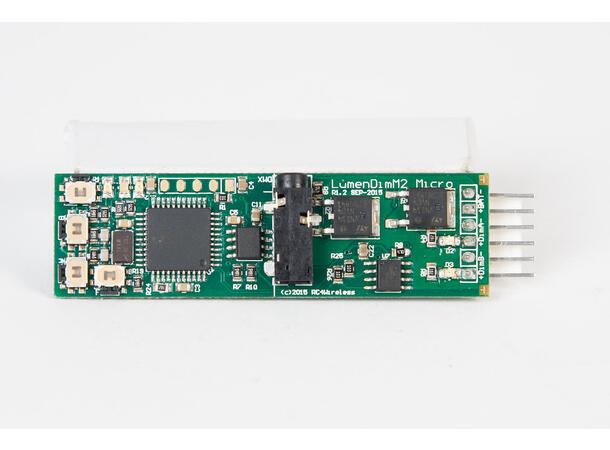

• Dimensions: 2.91" x .779" x .433" (75mm x 20mm x 10mm), unenclosed circuit board assembly
• Weight: 0.40 oz

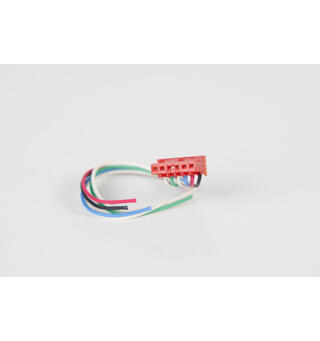

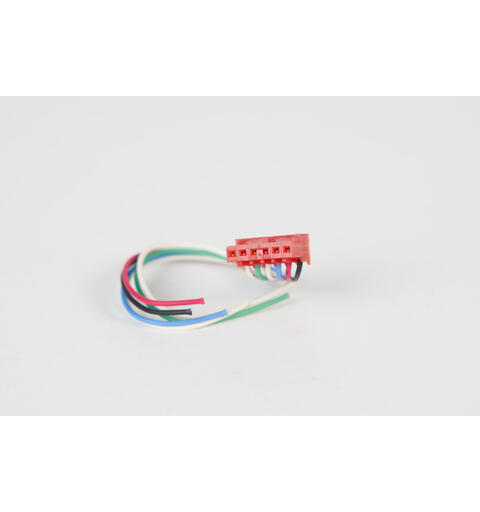

• Connections: Tyco/Amp MTA-100 6-pin
• Power Input: 6VDC – 35VDC, 0.5W
• Dimmer Outputs: 2 low-voltage DC dimmers, 19-bit resolution PWM (524,00 steps)
• Output Power, per Dimmer: 6A non-continuous, 3A continuous
• Multiple PWM Frequencies: 77Hz (high power), 615Hz (flicker free), 5kHz (artifact free for video), 20kHz (noise free for audio),
• 40kHz (super-slow-motion video)
• Multiple Dimmer Curves: Non-Dim, Non-Dim Inverted, Linear, Linear Inverted, Inverse-Square-Law (ISL), ISL inverted, servo
• motor pulse clockwise (CW), servo motor pulse counter-clockwise (CCW), AC wave (ring telephone bells)
• DMX Input/Output: RC4 3.5mm mini, USITT DMX512/1990 data, non-standard port, connector adaptors available. RDM E1.20 and E1.37 (dimmer configuration) support
• Wireless DMX Protocol: LumenRadio CRMX

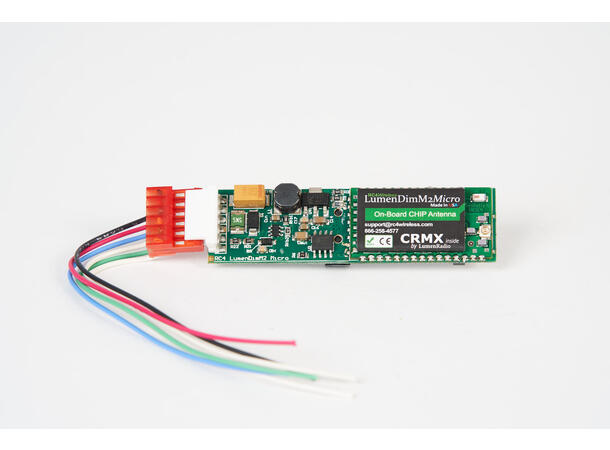

• RF Antenna: On-board omnidirectional chip antenna. Optional external antenna via u.fl connector
