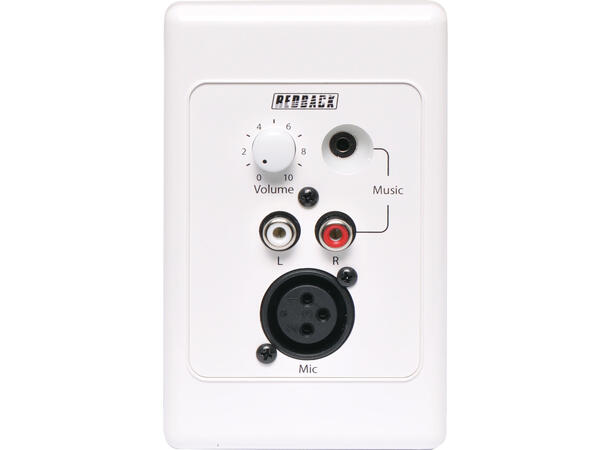

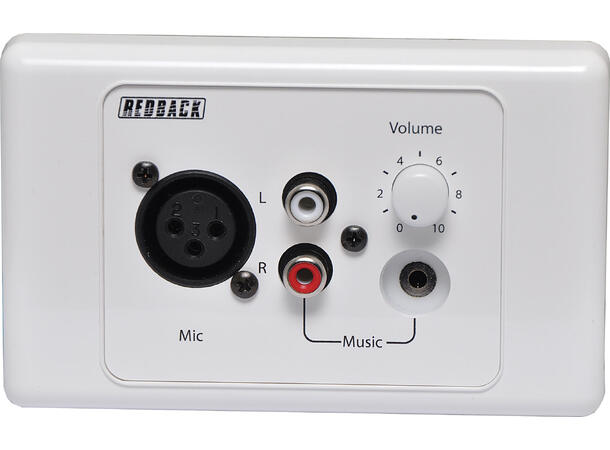

This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output.
The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4930 Hub. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. The wallplates receive power down the Cat5e cable from A 4930.
Compatibility with other Redback Products
This wallplate is also part of the accessories for the following Redback Products:
A 4480A 8x8 Audio matrix system.
A 4928 Single output microphone/line hub (for stand alone use).
A 4432 4+4 Channel Mixer With Wallplate Source Control
Specifications
Input Mic Level Sensitivity: 3mV
Input Line Level Sensitivity: 1V
Music Input Level Sensitivity: 500mV
Output Connector: RJ45 8P8C
Input Connectors: Audio: 3 pin XLR balanced 2 x RCA, 3.5mm JACK
*Specifications are subject to change without notice.
