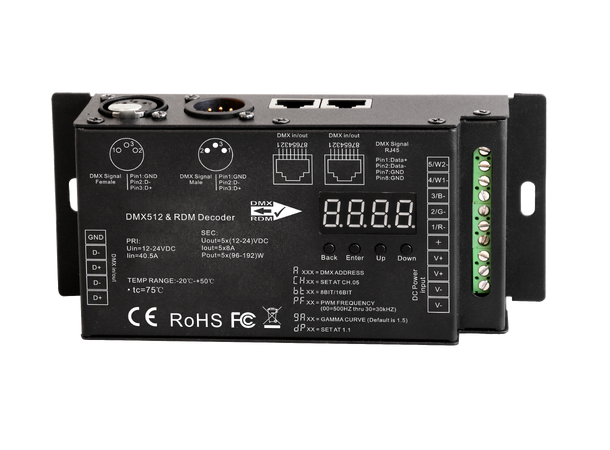

SBL LED-driver, 5 kanaler

This DMX 512 decoder/RDM controller can control up to 5 different single-color 12-24 VDC LED products, 1 RGBW + CCT light strip, or any 1 RGB or RGBW LED light bar along with 1 or 2 additional single-color products. The decoder can run under DMX512 digital control signals using XLR-5, or RJ45 DMX512 input/output interfaces or in RDM mode using a device or computer with RDM software. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit or 16-bit gray scale output per channel. RDM mode allows 2-way communication between the controller and computer or smart devices. Meets RDM 2009 protocol. Maximum load is 8 amps per channel.

Spesifications:

• Ambient Operating Temperature -20~+50 °C (-4~+122 °F)
• Amps 40 Amps
• Amps Per Channel 8 Amps/CH
• Certifications/Compliance CE, FCC, RoHS Compliant
• Channels 5 Channels
• Control Type DMX
• DMX In/Out 5 pin XLR, RJ45, Screw Terminals
• Dimensions
• View Dimensional Drawings
• Electrical Connection Screw Terminals
• Environmental Rating  Non-Waterproof IP20
• Input Voltage Range 12 VDC
• Operating Voltage 12~24 VDC
• Package Weight: 15oz (0.43kg)Package Dimensions: 7" (18cm) x 3" (8cm) x 1.5" (4cm)
