1. Designed with 5 channels output, and Max. 5A per channel, up to 600W output.
2. Easy operation with OLED display and the touch buttons.
3. 5 modes optional: dimming, CT, RGB, RGBW, RGBWY.
4. 5-pin XLR, RJ45 DMX interface with photoelectric isolation.
5. With RDM remote management protocol, the operations can be completed via the RDM editor, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
6. With firmware upgrade function.
7. With short circuit, over current and over-heat protection, as well as warning function when fault.
8. With power-on state management and fast self-testing function. 9. 16bit (65536 levels) / 8bit (256 levels) grey level optional.?10. Optional for standard, liner, LOG or custom 0.1-9.9 dimming curve
Technical specs:

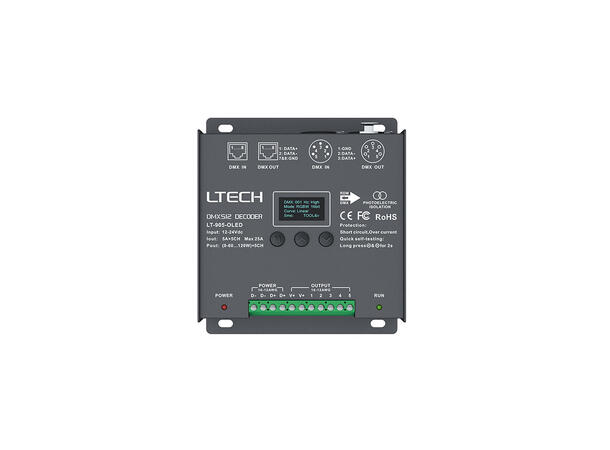

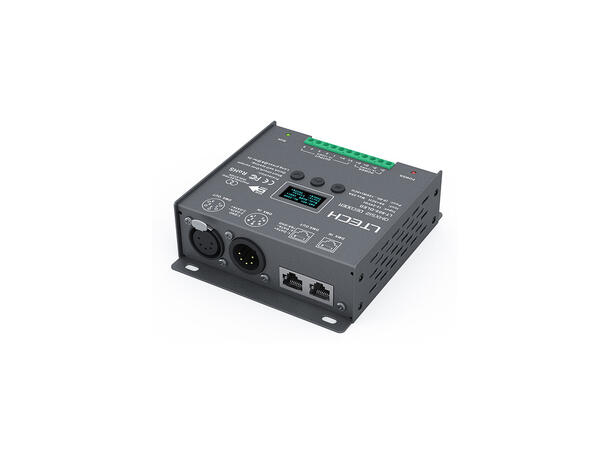

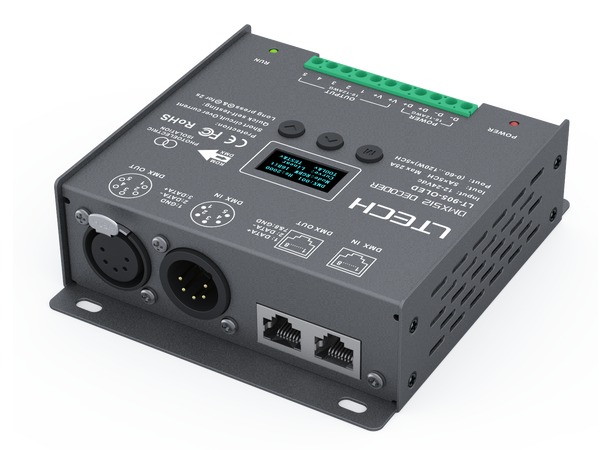

LT-905-OLED
DMX512/RDM
12~24Vdc
Photoelectric Yes isolation:
Working temp.: -30°C~65°C Dimensions: L122×W110×H37mm
OLEDdisplay
5A×5CH Max.25A (0~60W...120W) × 5CH Max. 600W
Package size: L127×W123×H41mm
Weight (G.W.): 550g
5-pin XLR RJ45
Dimming/CT/RGB/RGBW/RGBWY 0.1~9.9
8bit (256 levels) /16bit (65536 levels) Short circuit / Over load / Over-heat
DMX/RDM
