We use the notch-resistant and dirt-repellent...
TRANSFER AMCK (single insulated wire pairs, cross-braided screen, highly flexible PUR-Blend jacket). As connectors we use two TOURLOCK multipin sockets (with protective caps). All multipairs shown here are equipped with separate grounding as standard. We have fitted a 10 cm unshrunk transparent shrink-on tube at both cable ends for your personal labelling. For the QM-versions we use our highly fl exible QUANTUM tailored for use in stage areas (stage sub-distributions). This cable can be reeled easily on your hand and fi ts nicely into every corner on stage.
By using the optionally available extension adapters (also nicknamed “spookies”), 2 x female-female cables can be linked as well.
We gladly accept your written orders for other confi gurations and special designs
by fax or e-mail under support@sommercable.com.
Complete with multipin protective bag!
Configuration:
70,00 m Multipair SC-Transfer AMCK; PUR Master-Blend; black | 2 x 0,14 mm² x number of pairs 32 (100-0401-32)
1 x SCHILL Kabeltrommel, HT582-SW, core: 320 mm, thread width: 170 mm, metal (HT582-SW)
1 x HICON Round LK, arrangement 40-56, size 16, 85-pole , metal-, Panel socket, bayonet husk, black (HI-LK085FP)
1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (HI-LKCAP-F85)
1 x #RUND-LK85
1 x HICON Round LK, arrangement 40-56, size 16, 85-pole , metal-, Cable socket, bayonet husk, black (HI-LK085FV)
1 x HICON Round-LK 85 / LK 150 female (CIR32), Cover cap, Bajonet, black (HI-LKCAP-F85)
1 x Sommer cable Protective Bag for all LK-cable connectors male / female, subsequent assembly, grey (BAG-LK-O)
Specifications:
| Length ft | 229,66 |
|---|
| Article number | TFXUHM24/00-7000 |
|---|
| EAN | 4049371158428 |
|---|
| In | 24 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Length m | 70 |
|---|
| Reel | HT series |
|---|
| Article number | MCORE-LKLK |
|---|

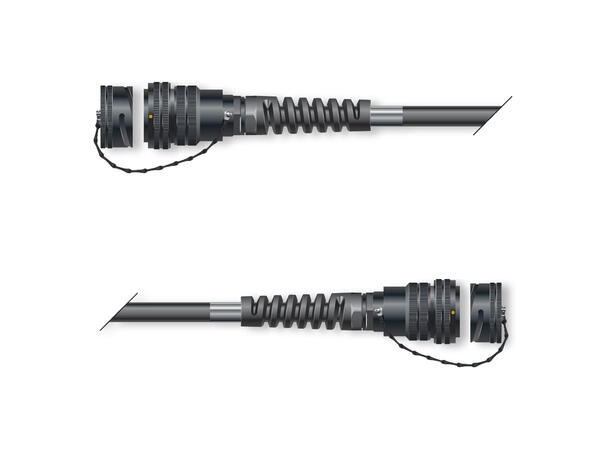

| Name | Multicore cable round LK <-> Round LK |
|---|
| Application | Multicore cable with round LK-connector -> Round LK-connector |
|---|
| Additional function | seperate grounding |
|---|
| Old article number | TFXC-M |
|---|
