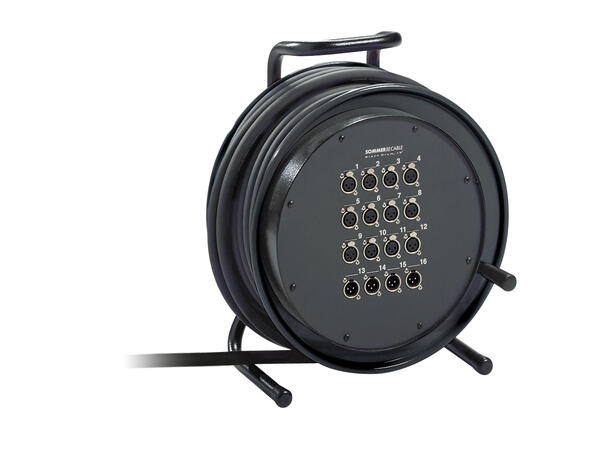

NB! bilde kan avvike
Keeping things tidy...
is easy when the stagebox is so neatly integrated into the cable reel. We only use SCHILL cable reels and the Sommer cable REEL from our own production.
The Sommer cable REEL has a height-adjustable carrying handle (which means no more back or shoulder problems), a fixing brake and two decent wheels (see section on “Cable Reels“).
Configuration:
70,00 m Multipair SC-Transfer AMCK; PUR Master-Blend; black | 2 x 0,14 mm² x number of pairs 12 (100-0401-12)
1 x SCHILL Kabeltrommel, HT380-SW, core: 178 mm, thread width: 142 mm, metal (HT380-SW)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Panel socket, bayonet husk, black (HI-LK037FP)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x Sommer cable Front panel with SOMMER universal multipin hole for GT310, HT and SK-Modelle, anthracite RAL7016 (RUND-MP01)
1 x HICON Round LK, arrangement 28-21, size 16, 37-pole , metal-, Cable socket, bayonet husk, black (HI-LK037FV)
1 x HICON Round-LK 37 female (CIR28), Cover cap, Bajonet, black (HI-LKCAP-F37)
1 x Sommer cable Protective Bag for Round plug HI-LK up to 54-pole HI-SOCA 19-pole, subsequent assembly possible, grey (BAG-LKM-O)
Specifications:
| Article number | TFXLHM12/00-7000 |
|---|
| EAN | 4049371158268 |
|---|
| In | 12 |
|---|
| Out | 00 |
|---|
| Configuration | separate grounding |
|---|
| Length m | 70 |
|---|
| Reel | HT series |
|---|
| Article number | STAGE-REEL |
|---|
| Name | cable reel with multipair |
|---|
| Brand | Sommer cable |
|---|
| Application | Stagebox <-> Multicore |
|---|
| Old article number | STAGEDRUM |
|---|
