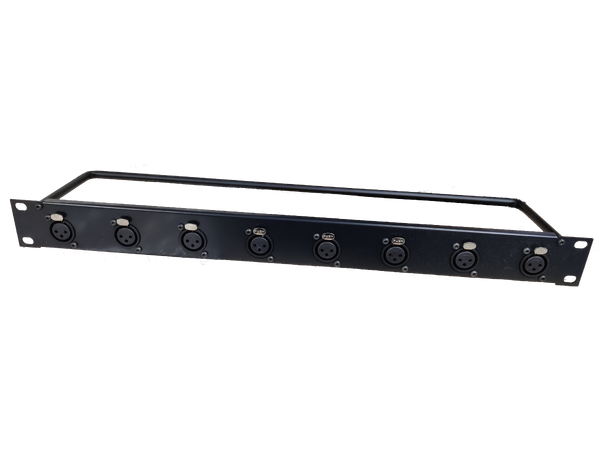

SOMMER CABLE connection panels are especially optimized for media technology. The 1.5 mm black steel panels are powder-coated and offer a high degree of stability with “U-fold“ at the ends. All connection panels are delivered with a pre-installed strain relief clip (ZEPB).
Numbering can be added on numbering strips NSPB or universal labeling on self-adhesive labeling strips P19-BS09 or magnetic labeling strips ZSPB.
Configuration:
1 x Rack panel, universal D series, Finish RAL 9011 smooth matt, 1 HE, sheet steel 1.2mm, black (PBS1-D08)
1 x SOMMER CABLE Strain relief, length: 435 mm, black (ZEPB)
8 x HICON XLR, 3-pole , metal-, Soldering-female connector, gold plated contact(s), Type D M3, black (HI-X3DF-G-M3)
Specifications:
| Article number | NX1X-M08/00 |
|---|
| EAN | 4049371041102 |
|---|
| In | 08 |
|---|
| Out | 00 |
|---|
| Brand | Sommer cable |
|---|
| Type | Audio-connection panel XLR |
|---|
| Colour | black |
|---|
| Colour detailed | black, mat |
|---|
| Material | 2mm steel panel |
|---|
| Connector-Brand | HICON |
|---|
| Additional function | gold-plated contacts |
|---|
| Type | XLR |
|---|
| Type (detailed) | XLR 3-pole female |
|---|
| Type (detailed) | XLR 3-pole male |
|---|
| Width unit BE | 12 |
|---|
| Height unit HE | 1 |
|---|
| Height unit HE | 2 |
|---|
