DESCRIPTION

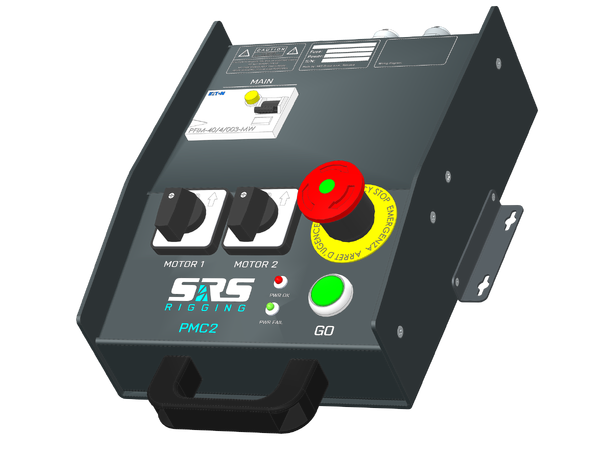

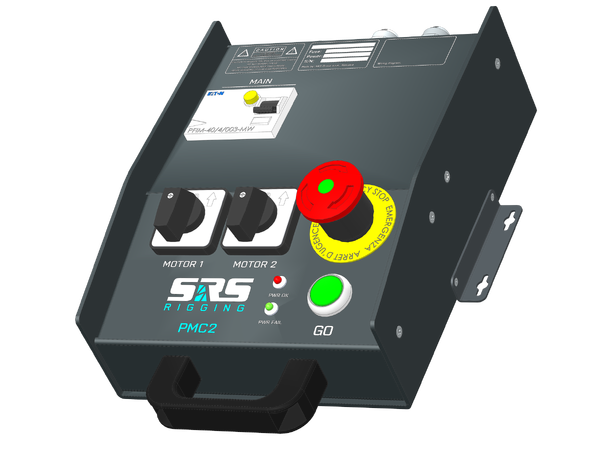

The PMC-LV Motor Controller was designed to control up to two low voltage electrically compatible motors separately or simultaneously using the switches located on the front panel of the controller.
Both of the control plugs are galvanically isolated from the controller so any low voltage hoist can be used without limitation of the hoist control voltage.
PMC-LV is equipped with the Manual Phase Align (MPA) module that allows swapping between phases easily by rotating pins L2 and L3 on the main connector.
All electrical components carry their own individual cSA/UL and CE and comply with the Low voltage and European Machinery Directives.
SPECIFICATION
Controls up to 2 low voltage hoists
Protection of outputs: MCB16A and RCD 30mA
Manual Phase Align (MPA) using power input connector
Hoist types: BGV D8, BGV D8+
Hoist connection:
CEE16/4p RED female for power
CEE16/4p YELLOW male for control
