DMX splitter / booster
DMX repeater
Input optically isolated
Each output individually optically isolated
RDM support (optional)
Rugged metal housing
Built-in termination
RJ-45 and pluggable screw terminal variants

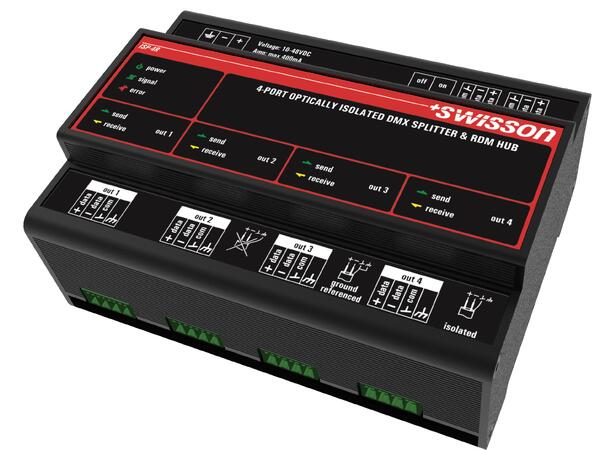

The DMX splitters of the ISP-4 line of products boost an incoming DMX signal and provide it on four output ports. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as for building star topologies.
The ISP-4 splitters also act as repeaters, and thus they may be used for transporting a DMX signal across larger distances.
DMX signals often get disturbed by the environment or even by the devices connected to the signal line. An ISP-4 splitter may completely clear the disturbances if it is connected at a location where the signal is still “readable”.
Providing four individually optically isolated outputs, as well as an optically isolated input, the ISP-4 splitters may prevent harmful voltages applied to a given port from affecting the other ports and damaging the connected equipment.
The bidirectional ISP-4R variants work within DMX / RDM environments, as well as in pure DMX environments.
Therefore, ISP-4R splitters are a good solution not only for current RDM users, but also for those who expect to use RDM in the future. The ISP-4D variants on the other hand only work with DMX, while they ignore any RDM data.
ISP-4 splitters are DIN rail mountable and powered by an external power supply unit.
