SWISSON ISP-6R-RJ45 DMX/RDM Splitter

The DMX splitters of the ISP-4/ISP-6 line of products boost an incoming DMX signal and provide it on four (ISP-4) or six (ISP-6) output ports. This allows for safely going beyond the 32 devices limit of the DMX standard, as well as for building star topologies.

Features:

• DMX splitter/booster
• DMX repeater
• Input optically isolated
• Each output individually optically isolated
• RDM support
• Rugged metal housing
• Built-in termination

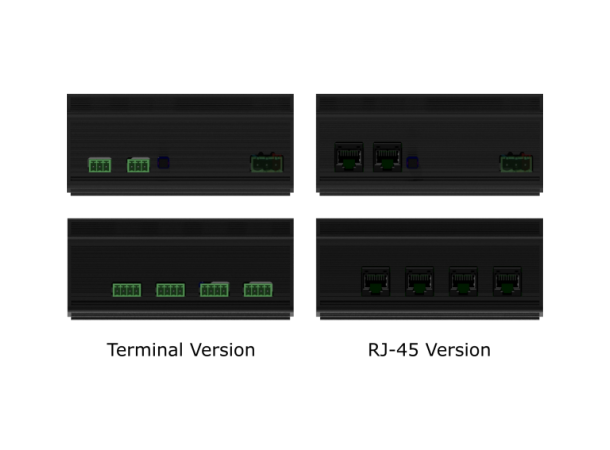

• RJ45 and pluggable screw terminal variants

Spesifications:

• Weight ISP-4 0.4 kg (0.9 lb.)
• Weight ISP-6 0.56 kg (1.25 lb.)
• Dimensions ISP-6 (L x W x H) 172 x 90 x 56 mm (6.8" x 3.54" x 2.2")
• Ambient temperature -30 to +55°C (-22 to +131°F)
• Power consumption ISP-4 4 W
• Power consumption ISP-6 6 W
• DC power input 10 - 48 V DC
• DMX / RDM ANSI E1.11 / ANSI E1.20
