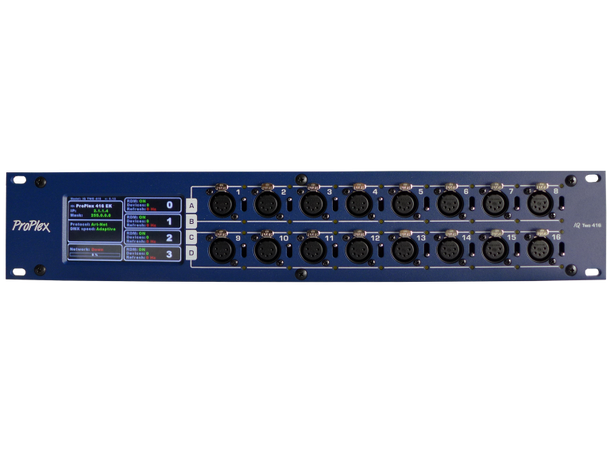

16 DMX outputs with RDM that can be easily assigned to 4 ArtNet/sACN universes.
RDM enabled and in combination with RDM manager software can be used for fixture
system setup and maintenance. Unit configuration can be done locally or remotely – using
touchscreen, built-in web server, or with dedicated PC application.
“It’s like a 4-port Node with 4 universes of opto-splitting over 16 ports all in one box!”
• Assign 4 ArtNet/sACN universes to 16 DMX outputs.
• Full RDM functionality.
• RDM Manager software available for system setup and feedback.
• Web interface – manage large networks locally or remotely.
• Large touchscreen for quick, easy setup and operation.
• Rugged, tour-ready ProPlex “Blue Box” RackMount chassis.
Technical Specifications
Part Number: PPIQB41615RD
Ethernet Ports: 1
ArtNet/sACN: Universes 4
DMX Ports: 16
DMX Connectors: Neutrik XLR5 Female
DMX Port Isolation: Optical, up to 1000V
Ethernet Connector: Neutrik EtherCon RJ45
Network Protocols: ArtNet, sACN (E1.31)
Power: 100-240V, 50-60 Hz
Power Connector: Neutrik PowerCon NAC3MPA
Power Consumption: 48 W
Fuse: 1 A, 250 V
Operating Temp.: -20º to +40º C
Unit Dimensions: (WxHxD) 19 x 3.5 x 8 in [483 x 90 x 205 mm]
Unit Weight: (unpacked) 9.25 lb [4.2 kg]
Shipping Dimensions: (WxHxD) 21 x 8 x 16 in [533 x 203 x 152 mm]
Shipping Weight: 11.75 lb [5.3 kg]
