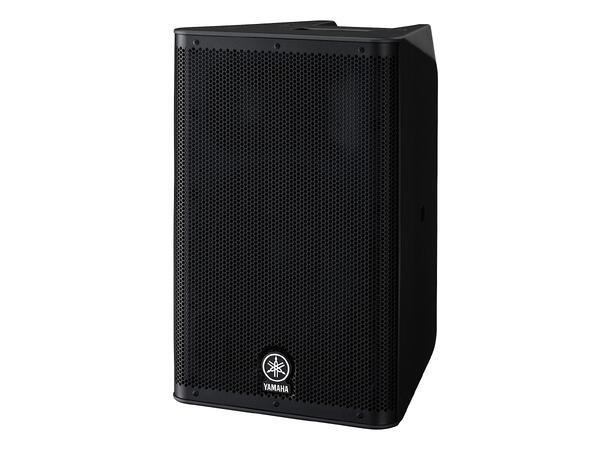

The DXR12 is an extremely high-power loudspeaker that is capable of producing a maximum
SPL of 132dB with its impressive 1100W of power. It is the perfect solution for live sound applications that demand wide bandwidth and extremely high-resolution sound.
Specifications
General specifications
Speaker type 12" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 52Hz - 20kHz
Nominal coverage H 90°V 60°
Components LF Diameter:12" cone, Voice Coil:2.5", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver,
Magnet:Ferrite
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W
(LF: 600W HF: 100W)
Maximum output level (1m; on axis) 132dB SPL

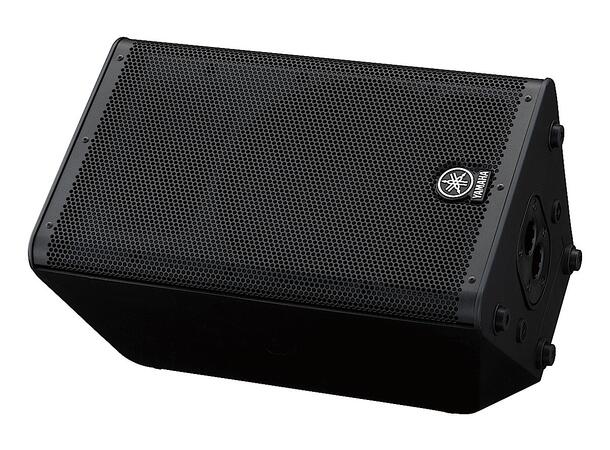

Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF

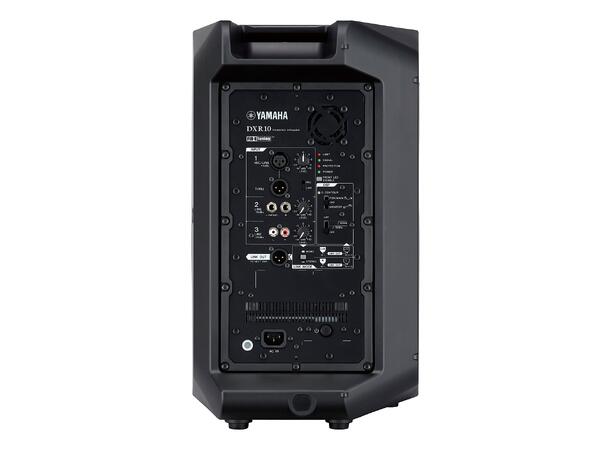

I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA
PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK
OUT: XLR x 1
Power requirements 100V - 240V, 50Hz/60 Hz
Dimensions W 362mm (14 2/8")
H 601mm (23 5/8")
D 350mm (13 6/8")
Net weight 19.3kg (42.5lbs)
Flying and mounting hardware Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)
Accessories UB-DXR12 (U-bracket)
Power consumption 110W
Others Material: ABS (Matte Finish, Black)
Crossover FIR-X tuning™ (linear phase FIR filter)
