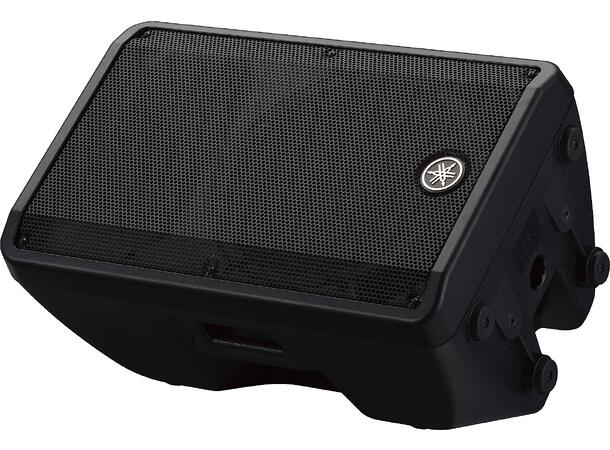

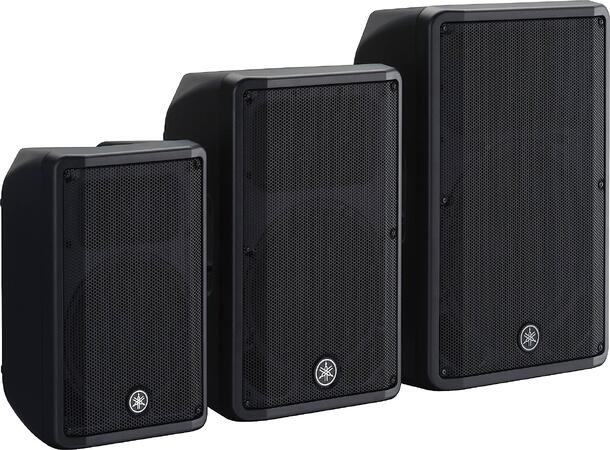

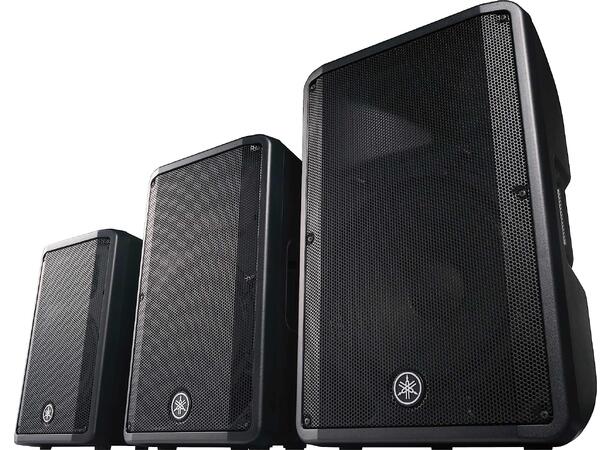

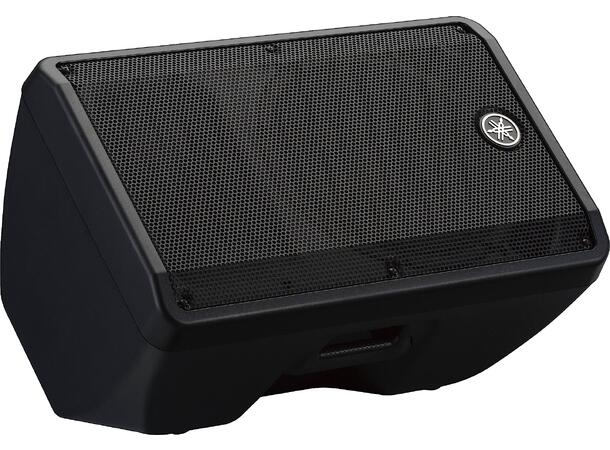

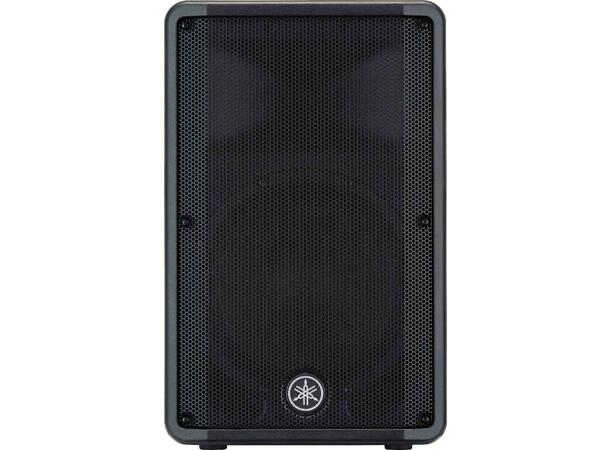

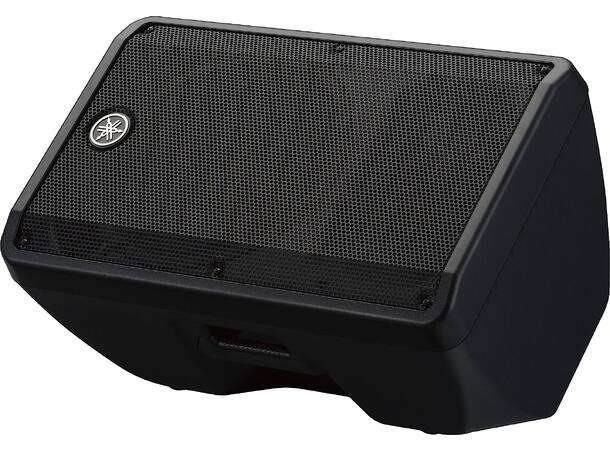

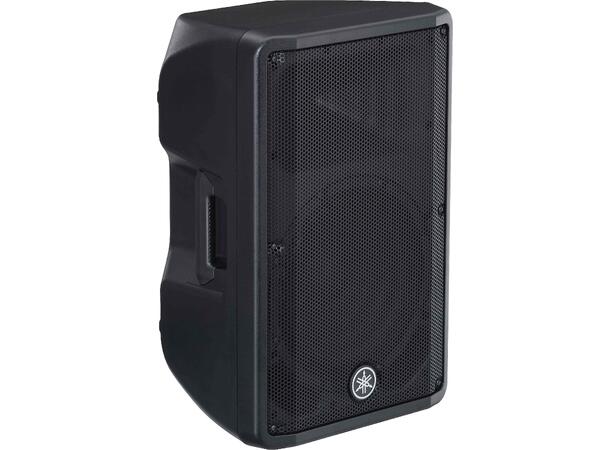

Wherever your music may take you, DBR Series loudspeakers are up to the task of delivering powerful, high-quality sound with an un-matched economy of transport and setup time. The most portable powered loudspeakers Yamaha has to offer, the versatile DBR Series harnesses the same state-of-the-art Yamaha DSP and amplifier and speaker technologies developed for the professional DSR Series and DXR Series lineups, ensuring high-resolution sound at any output level. Comprised of 10”, 12” and 15” models, each DBR loudseaker is housed in a newly designed, durable, lightweight cabinet optimized for FOH sound, floor-monitoring and even rigged applications. Whether you're powering your band’s live performance, DJ-ing a party, or MC-ing an event, be prepared for DBR Series speakers to take your performance to the next level.
Speaker type: 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range: (-10dB) 52Hz – 20kHz)
Nominal coverage:H 90/V60

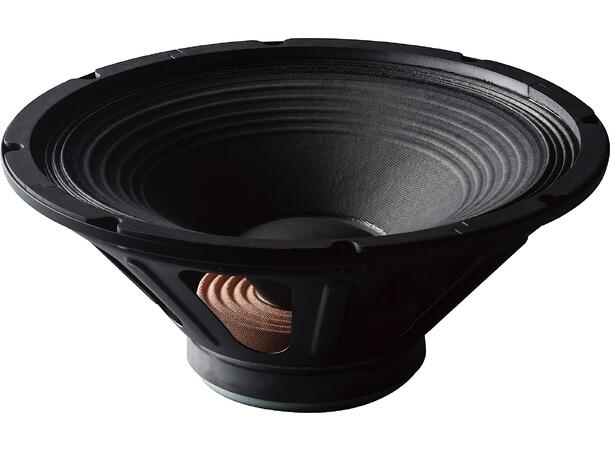

Components: LF, 12", 2" Voice coil. Ferrite magnet
HF: Diaphragm 1,45", 1" throat compression driver. Ferrite magnet
Crossover: 2.1Khz: FIR-X tuning (linear phase FIR filter)
Output power: Dynamic 1000W (LF 800W, HF 200W) Continuos: 465W (LF 400W, HF 65W)
Maximum output: 131dB SPL

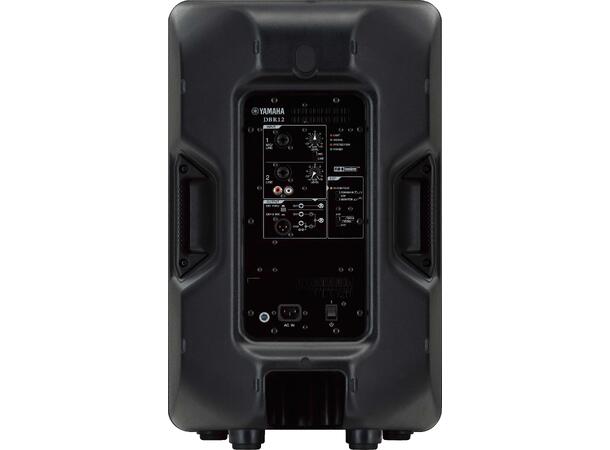

I/O connectors: Input: Combo x 1, Combo x1 + RCA pin x2 (unbalanced). Output: XLR3-32 x1 (CH1 paralell trough or CH 1 + CH2 mix)
Processors: D-countour: FOH/Main, monitor, off
Heat dissipation: Fan cooling. 4 speeds
Power requirements: 220V-240V
Power consumption: 74W (1/8 power consumption), 18W (idle)

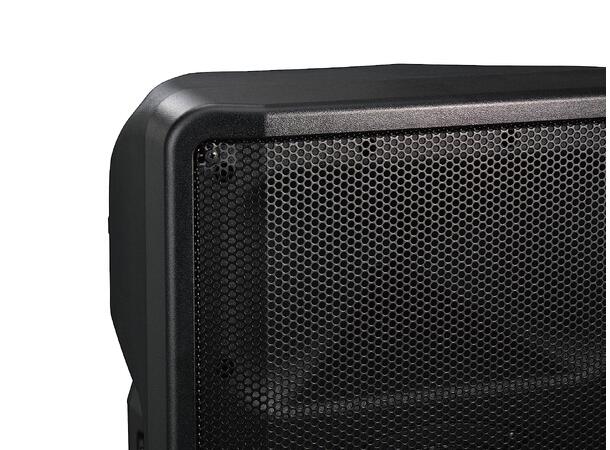

Cabinet material: Plastic
Finish: Black

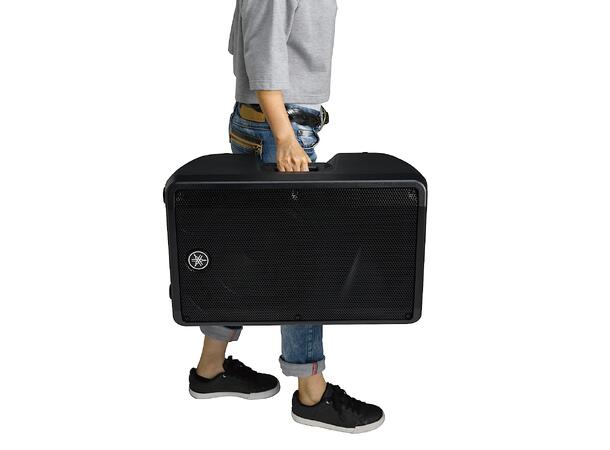

Handle: Side x 2

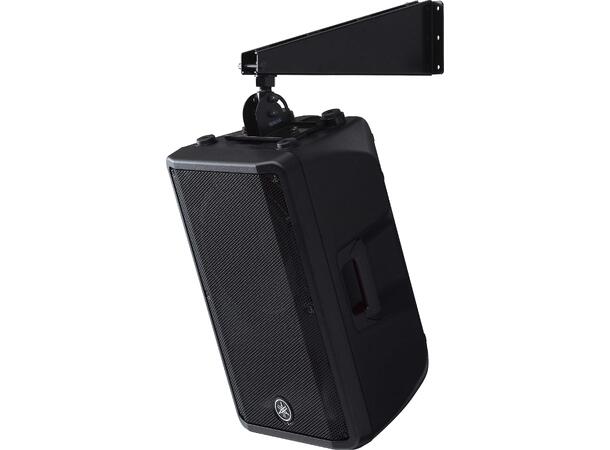

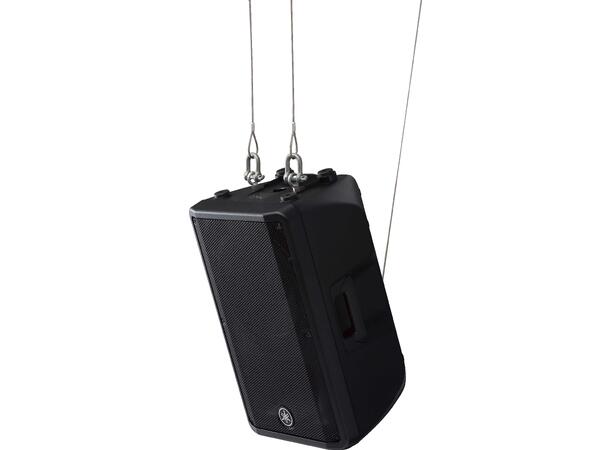

Flying and mounting hardware: Bottom x 2 (fit for M8x15mm)

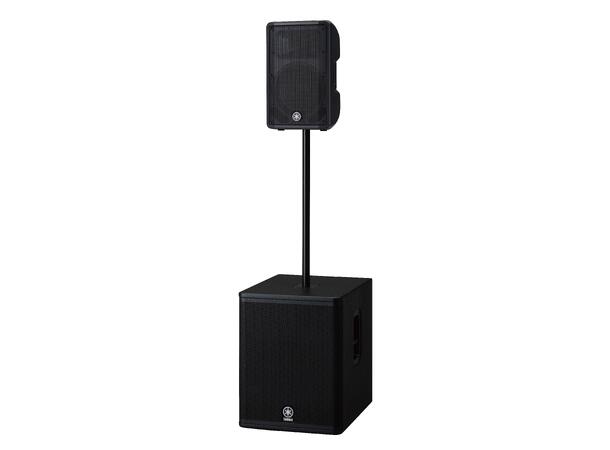

Pole socket: 35mm (Bottom x 1)
Dimensions: W 376mm, H 601mm, D348mm
Net weight: 15,8 Kg
