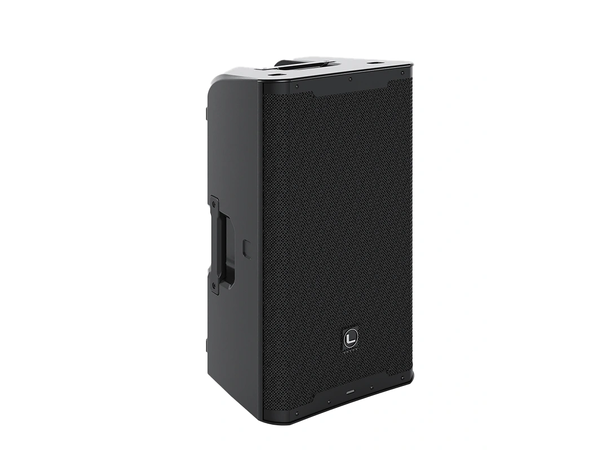

The RX- 10 is a high-performance polypropylene, 2-way active PA system featuring a 10-inch low-frequency driver. Powered by a Class D amplifier, it delivers 280W RMS and can reach a peak output of 600W, making it ideal for sound reinforcement in both indoor and outdoor environments.
The ROX series incorporates linear phase FIR filter technology, ensuring a seamless and more precise listening experience by minimizing phase distortion and improving overall sound accuracy.
Users can store and recall personalized settings, such as EQ configurations, delay adjustments, and input routing, using the system’s scene-saving functionality. This enhances adaptability across various sound environments, delivering a customized audio experience for any application.
Additionally, the system supports BT TWS stereo pairing, allowing users to wirelessly connect a smartphone, computer, or another Rox cabinet, providing flexible and reliable wireless connectivity for stereo sound.
Key features
- Indoor or outdoor application
- Class D powered
- Versatile sound reinforcement
- High performance
- Linear phase FIR Filter
- BT TWS Stereo pairing
Components
LF: 10”, 2” voice coil
HF: 1”, compression driver
Frequency Response
45 Hz to 20 kHz
Max SPL
119 dB – 125 dB peak
Coverage
90º H x 60º V
Power
RMS power of 280W and 600W peak
Amplification
Class D | DSP Filters
BT
Receiver-TWS Stereo Pairing

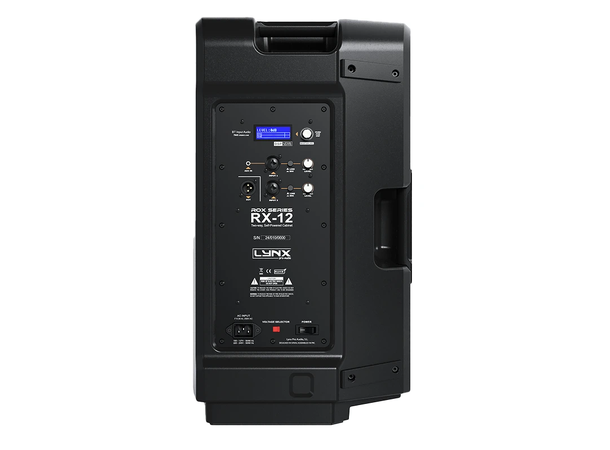

Control
LCD Display, encoder and push button
Inputs
2 balanced Combo Jack/XLR inputs with MIC/LINE selector and adjustment level for each input.1 3.5mm mini-jack AUX input
Outputs
Balanced XLR LINE-level output
Fittings
35mm (2-position) speaker stand socket and a 45° angled wedge for stage monitoring
Power supply 230V ~ / 50 Hz mains power supply
Weight
9 Kg (19,84 lbs)
Dimensions
545 x 355 x 295 mm (H x W x D)
