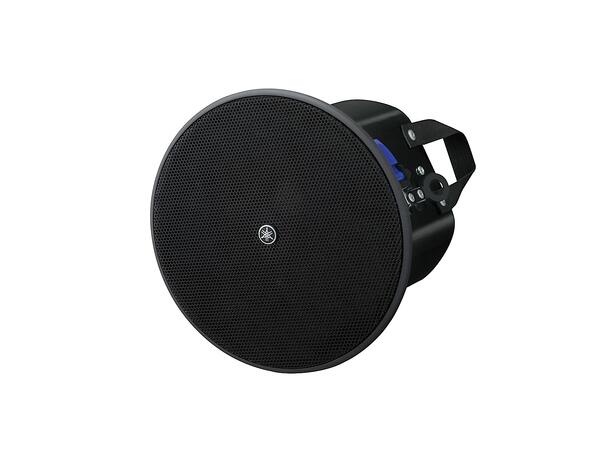

Full-range loudspeaker with a 4" driver
Specifications
General specifications
Speaker type Full-range, Bass-reflex
Frequency range (-10dB) 80Hz - 20kHz (Half-space:2p)
Power rating NOISE 30W
PGM 60W
PEAK 120W
Nominal impedance 8O
SPL Sensitivity (1W; 1m on axis) 87dB SPL (Half-space:2p)
Peak (Calculated) 108dB SPL (1m, Calculated based on power rating and
sensitivity, exclusive of power compression)
I/O connectors 1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Dimensions D 195mm (7.7")
Net weight 2.6kg (5.7lbs)
Finish VXC4: Black / VXC4W: White
Accessories O-ring, Tile Rail, Cutout Template
Transformer taps 100V 30W (330O), 15W (670O), 7.5W (1.3kO)
70V 30W (170O), 15W (330O), 7.5W (670O), 3.8W (1.3kO)
Nominal coverage 130° conical (Half-space:2p)

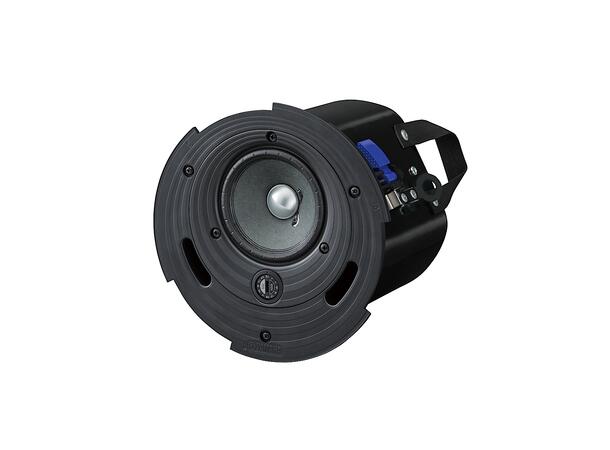

Components LF-HF 4" full-range
Dimensions Diameter 225mm (8.9")
Cutout size Ø186 mm (Ø7-5/16")
Required ceiling board thickness 5 mm – 35 mm
Packaging Packaged in pairs
Certificate UL1480, UL2043, NFPA70, CE, EAC, RoHS
