NOTE: the product only include the main frame, no input cards, no output cards and no additional backup power supply are included. Please choose them from available accessories.
The MX series is a large professional 8K LED display controller from NovaStar, designed as part of the COEX control system series. Its remarkable features include 12-bit color depth, 360 Hz capability, real-time multi-screen scaling, 0-frame latency, and HDR supportability, providing precise brightness control, true-to-life color fidelity, and an excellent image quality. Its card-based modular design is specifically tailored for future LED displays, allowing for flexible input and output card configurations that are stable and easy to maintain.
With a compact 6U size, NOVAMX6000PRO supports up to 32x 4K or 8x 8K video inputs, with a maximum load capacity of 141 million pixels, making it ideal for large-screen configurations.
The NOVAMX6000PRO offers a wide range of options with up to seven different input cards supporting 8K, 4K, and VoIP. For output, it supports two types of output cards: 4x 10G fiber and 1x 40G fiber. These cards can be configured flexibly to accommodate either 1G or 5G bandwidth for the control system, catering to different requirements. Additionally, it supports seamless backup and automatic switching between devices, cards, and Ethernet ports. In case of any malfunction, it promptly switches over while issuing automatic alerts, ensuring stable output on-site. To further enhance the user experience, it is complemented by the advanced control software, VMP, enabling users to have better control and management capabilities.
The NOVAMX6000PRO offers many advantages such as highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large.
Features
Inputs and Outputs
- 8x input card slots, users may choose input cards of the following 7 types:

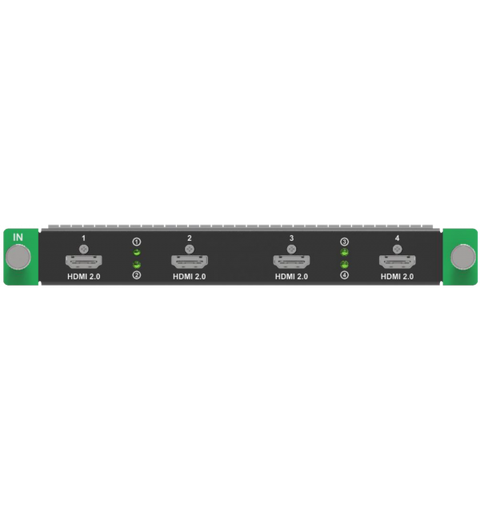

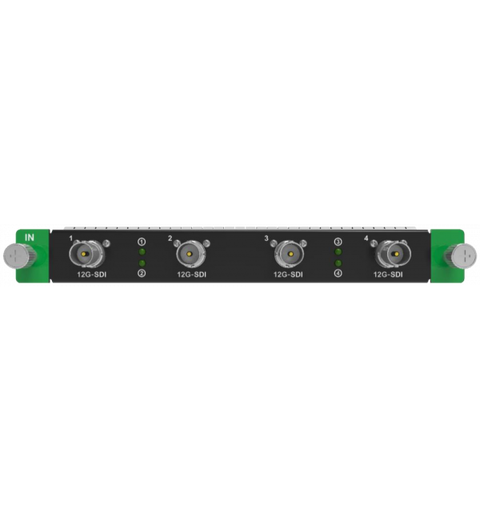

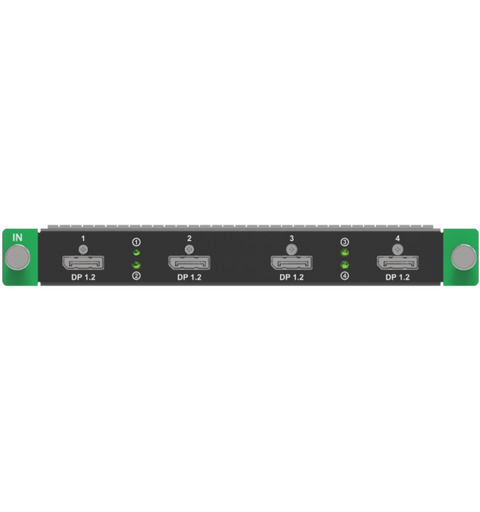

- 4K input cards 4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI

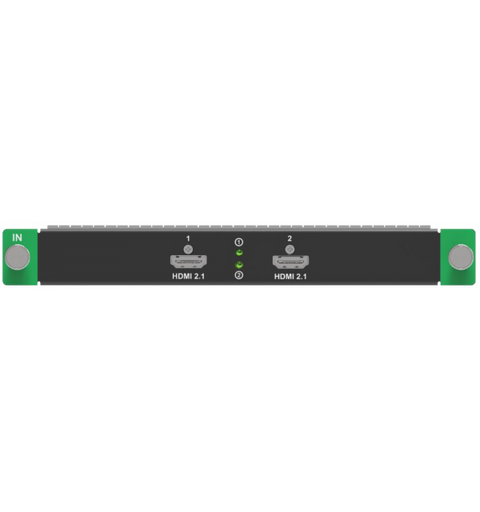

- 8K input cards 2x HDMI 2.1, 2x DP 1.4
- VoIP cards (Video over IP) 1x SMPTE ST 2110 (25G), 1x NDI - Authentic 12bit video input: 12-bit/10-bit/8-bit supported
- 8x output card slots, users may choose output cards of the following 2 types:
- CX_1x40G_Fiber output card Work with CVT8-5G fiber converter to achieve 5G transmission (capable of loading 2,600,000 pixels in a single Ethernet cable).

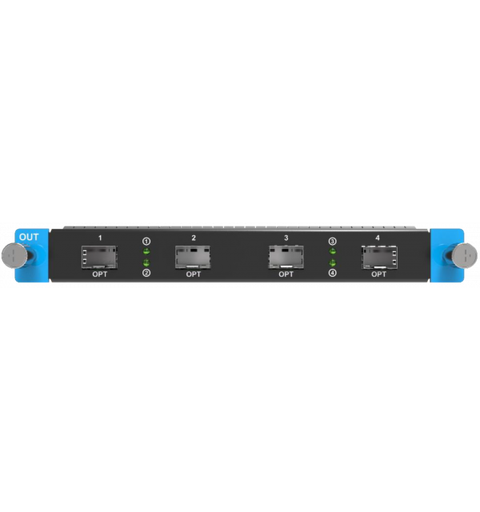

- MX_4x10G_Fiber output card Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable). - Supports real-time previewing and monitoring of the video source input and LED screen display status.
- Supports frame rates of up to 360 Hz (max frame rate is decided by the screen's hardware configuration).
Screen Management
- Card-based Screen: To cope with multi-screen application scenarios with ease and to achieve flexible configuration, this feature allows user to configure LED screen based on output cards.
- Synchronized Output Splicing: With the help of frame synchronization, the output images on the same screen are completely synchronized. This enables the output to deliver smooth playback and perfect image without issues such as picture stutter, frame loss, image tearing, and noticeable cut lines.
- No rectangle restriction for irregular screens. This means when calculating resolutions, blank pixels do not count towards the total capacity. The used load capacity of Ethernet ports is the sum of the resolutions of all cabinets with load.
- Preset: For optimal display in various scenarios, users can adjust display parameters such as layers, brightness, color temperature, and gamma ahead of time and save them as presets. Users can save up to 128 customizable presets which can be easily applied or switched with just one click.
Advanced Features
- Multi-Layer: A single output card supports up to 4x layers or the entire device supports up to 32x 4K layers. Each layer supports 4 scaling mode: custom, pixel to pixel, snap to canvas, and fill screen.
- Layer Roaming: Supports cross-card output of layers within the screen.
- Color Replacement: Replace any color in the image with another color without affecting other colors. It is recommended to choose color with higher saturation for replacement to achieve better outcome.
- 14Ch Color Correction: Supports precise adjustment to the hue, saturation, and brightness of black and white, and the12 standard colors derived from the three primary colors (RGB).
- Color Curves: Supports adjustment to the RGBW mapping curves of the screen.
- 3D LUT: Use the 3D LUT file (.cube) with an accuracy of 17×17×17 to adjust the colors of the video source.
- Dynamic Booster: Analyzes and adjusts each frame of the video input in real-time, resulting in a significant improvement in contrast and image detail. This enhances the overall visual experience, while also controlling and reducing the screen's power consumption to extend its lifespan.
- Full-Grayscale Calibration: Work with NovaStar's high-precision calibration system and the C3200 scientific grade camera to generate unique calibration coefficients for each grayscale, ensuring uniformity of each grayscale and dramatically improving the image quality.
- 3D: Work with the receiving card that supports 3D function, the 3D emitter and 3D glasses to bring a fascinating and immersive 3D viewing experience.
- HDR:
- Support HDR10 and comply with the SMPTE ST 2084 and SMPTE ST 2086 standards.
- Support HLG. - Latency:
- Different layers can have different latency settings. The minimum processing latency of the LED display controller is reduced to 0- frame (less than 1 ms), achieving low latency without reducing the load.
- Support additional latency. Users can choose to add zero to two frames of latency. - Frame Rate Adaptive: Adjusts the display effects for varying frame rates range from 23.98 Hz to 360 Hz, ensuring that the max brightness and color temperature remain consistent at different frame rates.
- Shutter Fit: Automatically adjusts the driver IC parameters according to the camera shutter angle to fix problems of black lines, grayscale addition, and grayscale loss during camera shooting in xR scenarios.
- Frame Multiplication:
- Frame interpolation: Outputs images that are captured from multiple shooting angles with different backgrounds at the same time. Solid green backgrounds can also be inserted to allow for easy post-production adjustments.
- Frequency multiplication: Supports high frame rates of up to 360 Hz. This feature is to accommodate multi-angle camera shooting to improve the screen performance under the camera.
Device Controls
- LCD touch panel: Equipped with a 7-inch touch screen, which is responsive, sturdy and durable. Users can easily give commands with a gentle touch, making the operation effortless.
- VMP software control: The device can be connected to the VMP software to provide easy and convenient operations and smart device management.
- Supports the SNMP and Art-Net protocols.
- Cascading control via Ethernet: The Gigabit Ethernet control ports support TCP/IP protocol and star topology. No switch or router is needed to deploy multiple devices on the same LAN via device cascading as the network switching function is already built in.
- Automated system monitoring and alarm Hardware monitoring capabilities that encompass fan speed, module temperatures, voltage levels, and operational status. It automatically detects and reports any device faults or alarm information, ensuring the stable and secure operation of the LED display system.
- Device backup
- Hot backup between devices.
- Hot backup between output cards.
- Hot backup between Ethernet ports. - Dual power supply backup to ensure the system stability.
Specifications
Electrical Specifications: Power supply 100-127V~/200-240V~,15A/10A,50/60Hz
Power Consumption: 625 W
Operating Temperature: -10°C to +45°C
Operating Humidity: 0% RH to 80% RH, non-condensing
Storage Temperature: -10°C to +60°C
Storage Humidity: 0% RH to 90% RH, non-condensing
Dimensions: 482.6 mm × 282.9 mm × 538.8 mm (Height includes foot pads)
Net weight: 31 kg (without cards)
Packing box: 725.0mm × 635.0mm × 410.0mm, kraft paper box
IP Rating: IP20, please prevent the product from water intrusion and do not wet or wash the product.
Noise Level: (typical at 25°C/77°F) 53 dB (A)
