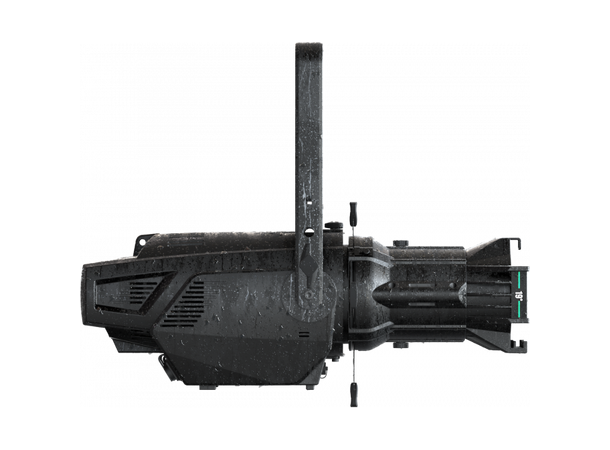

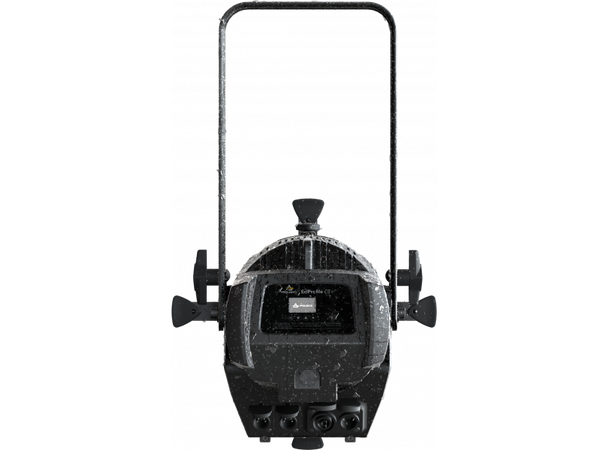

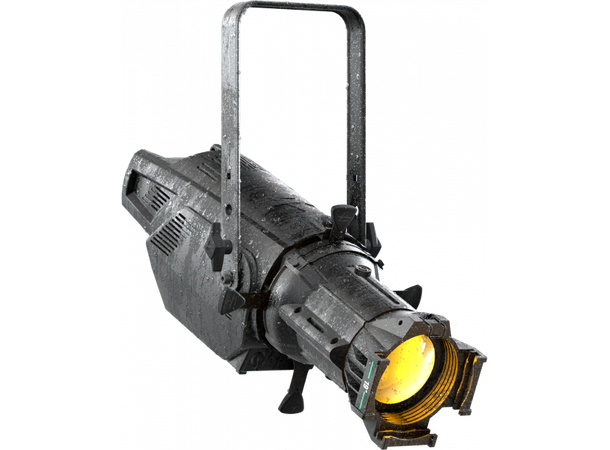

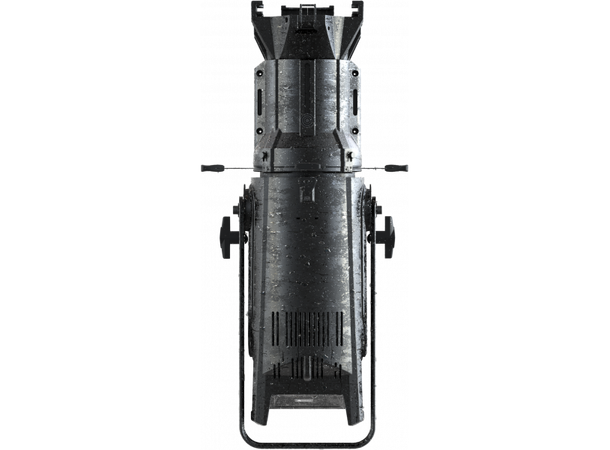

The EclProfile CT+IP is a tunable white and full colour IP LED ellipsoidal designed for exterior applications such as touring, theme parks, cruise ships, and any outdoor events.
It uses the same 6-colour LED source than its indoor version, but with a 30% higher lumen output, as it's equipped with a bigger power-supply and heat sink. The IP body of the fixtures takes any of the standard lenses and accessories of the EclProfile range.
Its custom LED array and the powerful on-board colour control allows reaching bright and high-quality whites, up to 97 CRI, keeping a consistent colour output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming and colours, LEE colour presets, virtual CTO and studio functions, such as green and magenta tuning on white presets.
Features:
IP rated for exterior applications
Rotating gobo IP65
Linear white CCT from 2,800K to 10,000K, CRI up to 96
Industry-standard colour gel matching, tungsten emulation on dimming, tint control (+/- green).
LIGHT SOURCE
Source: Luxeon-C; 96x3W 6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
CCT: @full 5.000K
Luminous flux: (5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430lm @full
Luminous flux: (zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817 @full
Lux: (5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx @5 m full
Lux: (zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx @5 m full
CRI: 93,7 @3.200 K; 97,6 @5.600 K
R9: 98,6 @3.200 K; 98,2 @5.600 K
TLCI: 95 @5.600 K
TM30 Rf: 92 @5.600 K
TM30 Rg: 100,1 @5.600 K
Source life expectancy: > 50.000 h
OPTICS
Lens type: high-quality glass lens optics
Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
Focus: manual
Other: see available accessories
COLOUR SYSTEM
Colour mixing: RGB, Royal Blue, Mint, PC Amber
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.700 K ~ 10.000K
Colour wheel: colour gels matching and RGB / HSI / CMY selectable colour mode
DYNAMIC EFFECTS
Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
Special features: 4 fan modes available and output management and linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: sturdy die-cast aluminium body
Body colour: black
CONTROL
Protocols: DMX512, RDM
Stand Alone: selection of static colours, white presets, manual colours and built-in effects with adjustable speed
DMX channels: UNO / DUO / Basic / Standard / Extendedchannel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included (through dedicated software)
Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: -20° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 264W
Output (at 230V): 7 units on a single power line
Power factor: > 0,95
PHYSICAL
IP rating: 65 for temporary outdoor aplication
Cooling: low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 264x259x539mm
Weight: 7,9kg
BOX CONTENT
1 x ECLCTPLUS
1 x 1,5 meters SCHUKO - NEUTRIK POWERCON TRUE1 power cable
1 x Calibration Report
User Manual
