NB! LEVERES UTEN OPTIKK. SE TILBEHØR FOR ALTERNATIVER
NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

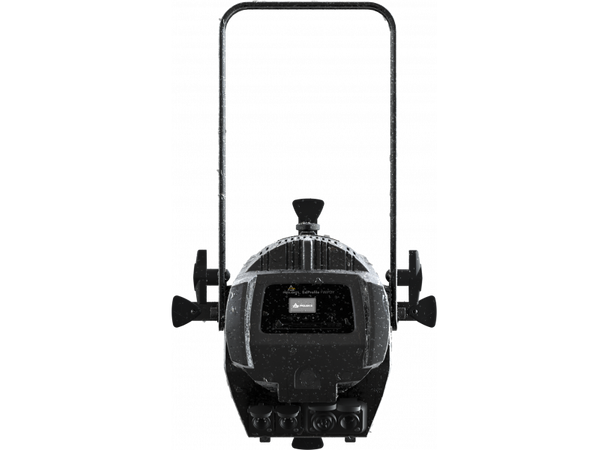

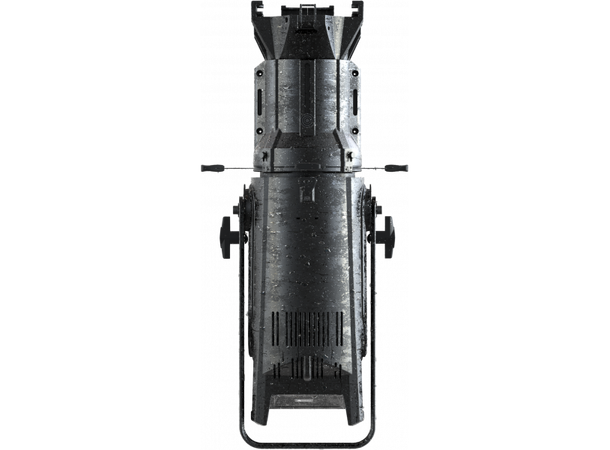

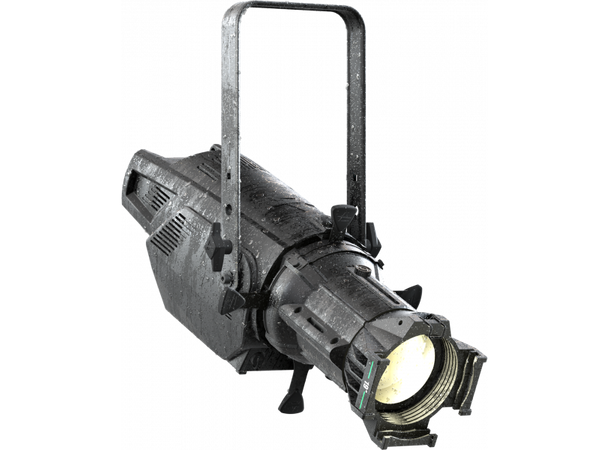

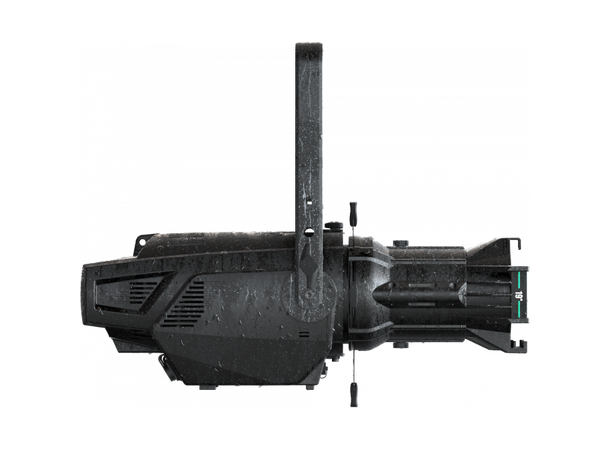

EclProfile FWIP is the IP Full White version of the new generation of Ecl Profile LED ellipsoidals, and it is available in the TU (tungsten) and DY (daylight) source variants. The EclProfile FWIP has been engineered in the same housing and optical design of the colour mixing versions and for those users who require higher brightness and quality on a specific white point, offering a superior evenness and crisp focus of the new EclProfile range, or simply prefer to operate LED fixtures in a classical way. The LED source for both versions has been selected to achieve the finest quality of whites, having high scores of CRI, R9 and TM30 and being ideal for applications like corporate events, advertising, exhibitions, among others.
Features:
IP Rated for exterior applications
Rotating Gobo IP65
3.200 K (TU) and 5.600 K (DY) versions available.
High lumen output and superior quality of whites (high CRI, TLCI, TM30).
Silent operation and compatible with industry standard accessories.
LIGHT SOURCE
Source: 91x3W high-power white LED
CCT: (TU) 3.200 K - (DY) 5.600K
Luminous flux: (TU) 5°: 6'662 - 10°: 8'005 - 14°: 7'283 lm -19°: 8'704 lm - 26°: 8'944 lm - 36°: 8'996 lm - 50°: 8'286 lm - 70°: 9'670lm @full
Luminous flux: (DY) 5°: 7'231 - 10°: 8'828 - 14°: 8'061 lm -19°: 7'664 lm - 26°: 9'826 lm - 36°: 9'707 lm - 50°: 9'017 lm - 70°: 11'708 lm @full
Lux: (TU) 5°: 30'529 - 10°: 14'813 - 14°: 7'197 lx - 19°: 4'218 lx - 26°: 2'459 lx - 36°: 1'323 lx - 50°: 680 lx - 70°: 419lx @5 m full
Lux: (DY) 5°: 35'955 - 10°: 16'083 - 14°: 7'894 lx - 19°: 4'626 lx - 26°: 2'722 lx - 36°: 1'450 lx - 50°: 766 lx - 70°: 494lx @5 m full
CRI: (TU) >98; (DY) >97
R9: (TU) >91; (DY) >97
TLCI: (TU) >98; (DY) >98
TM30 Rf: (TU) >94; (DY) >91
TM30 Rg: (TU) >99; (DY) >99
Source life expectancy: > 50.000 h
OPTICS
Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
Lens type: HD anti-reflection lenses with achromatic coating
Focus: manual
Other: see available accessories
COLOUR SYSTEM
Colour mixing: static white
DYNAMIC EFFECTS
Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
Static colour mode: selection of static dimmer
Manual colour mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment
Special features: HIGH mode, AUTO mode and SILENT mode fan management
BODY
Body: sturdy die-cast aluminium body
Body colour: black
CONTROL
Protocols: DMX512, RDM
DMX channels: 1 / 2 / 3 / 4channel
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 264W
Output (at 230V): 11 units on a single power line
Power factor: 0,97
PHYSICAL
Cooling: low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
IP rating: 20
Dimensions (WxHxD): 265x259x540mm
Weight: 7,3kg
BOX CONTENT
1 x ECLFW
1 x 1,5 meters power cable (SCHUKO plug - NEUTRIK POWERCON TRUE1 IP65)
User Manual
