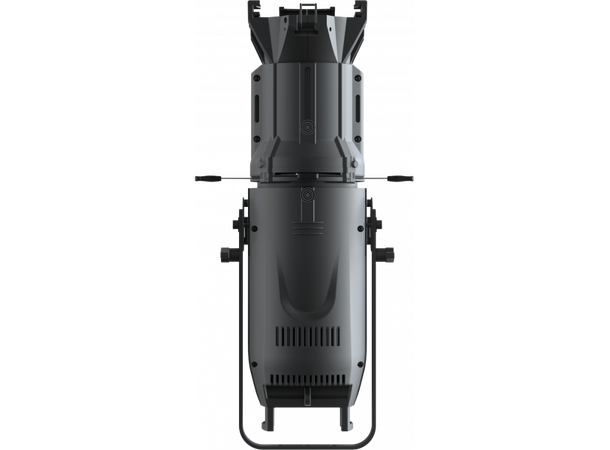

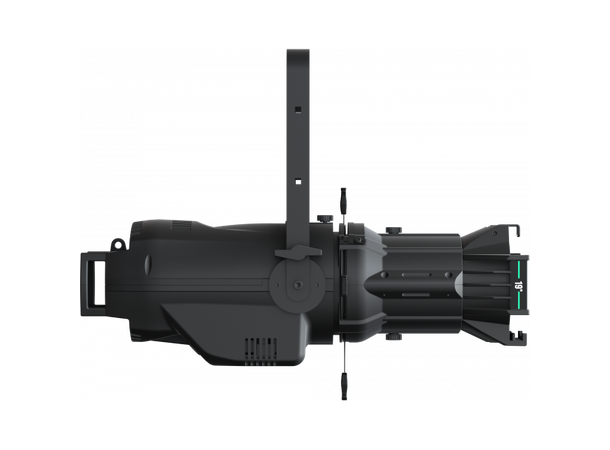

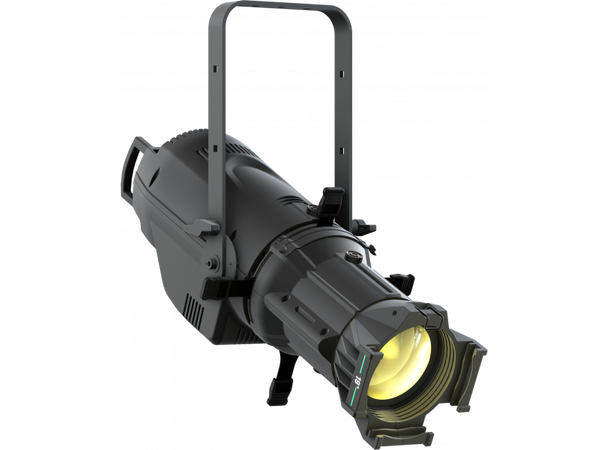

PROLIGHTS ECLFWVW Profil, sort

2700-5600K, 16 bit smooth dimming

Varenr: 160136
Alt. varenr: ECLFWVWBK
16 521,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
2 på lager i Oslo
På lager hos leverandør
BeskrivelseTilbehørAlternativerLenker & dokumenter
Beskrivelse

NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

NB! Optikk kjøpes separat, se under tilbehør

High quality Full White LED ellipsoidal Variable White, black finishing. it features tunable white control between a very warm tungsten value (2,700K) to a cool daylight (5,600K), whilst maintaining a very high luminous flux and CRI (nearly 98 in tungsten and 97 in daylight). The EclProfile FWVW includes 16-bit smooth dimming, selectable PWM, four dimming curves and speeds, and control of the fan, allowing the user to adjust its speed and adapting the unit to different environments like studios, film-sets, or theatres.

Features:

  • Linear CCT control 2.700 K - 5.600 K.
  • High lumen output and superior quality of whites (high CRI, TLCI, TM30).
  • Silent operation and compatible with industry standard accessories.

Light source:

  • Source: 91x3W high-power white LED
  • CCT: from 2.700K to 5.600K
  • Luminous flux: (26° only TU) 3'696 lm; (26° only DY) 4'406 lm; (26°) 7'951lm @full
  • Lux: (26° only TU) 1'289 lx; (26° only DY) 1'524 lx; (26°) 2'759lx @5 m full
  • CRI: (only TU) 97; (only DY) 97,4; (@full) 95,4
  • R9: (only TU) 91; (only DY) 96,2; (@full) 86,4
  • TLCI: (only TU) 98; (only DY) 98; (@full) 98
  • TM30 Rf: (only TU) >95,5; (only DY) >91,7; (@full) >93,2
  • TM30 Rg: (only TU) <102,4; (only DY) <100,8; (@full) <103,2
  • Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

Optics:

  • Beam angle: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / zoom 15°-30° / zoom 25°-50°
  • Lens type: HD anti-reflection lenses with achromatic coating
  • Focus: manual
  • Other: see available accessories

Colorsystem:

  • Colour mixing: warm white + cold white
  • DYNAMIC EFFECTS
  • Shutter system: 3 layers blades system and fast rehabilitation of blade in case of out of frame blade
  • Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
  • Static mode: selection of static dimmer
  • Manual mode: manual adjustment of dimmer and strobe
  • Auto mode: built-in programs with execution speed adjustment
  • Special features: HIGH mode, AUTO mode and SILENT mode fan management

Body:

  • Body: sturdy die-cast aluminium body
  • Body colour: black

Control:

  • Protocols: DMX512, RDM
  • DMX channels: 1 / 2 / 3 / 5 / 11channel
  • RDM: RDM for remote monitoring and settings
  • Display: Graphic User Interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
  • Master/Slave: for synchronised operation of more units linked in a chain

Electronics:

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Strobe / shutter: 1 - 25 Hz, electronic
  • Display battery: self-charging battery backup
  • Operating temperature: -10° ~ +45°
  • LED Control: flicker free operation
  • Selectable PWM: 600 ~ 25.000 Hz

Eletrical:

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 265W
  • Output (at 230V): 11 units on a single power line
  • Power factor: 0,97

Physical:

  • IP rating: 20
  • Cooling: low noise fan
  • Suspension and fixing: bracket for hanging and positioning
  • Signal connection: Amphenol XLR 5p IN/OUT connectors
  • Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
  • Dimensions (WxHxD): 265x259x540mm
  • Weight: 7,3kg

Certifications/Approvals:

  • CE, cTUVus

Box content:

  • 1 x ECLFWVW
  • 1 x 1,5 meters power cable (Open end- NEUTRIK POWERCON TRUE1 IP65)
  • User Manual
