NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

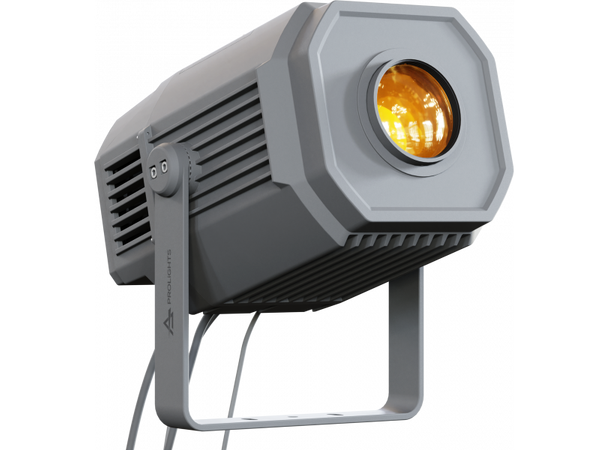

The Mosaico L is a bright outdoor LED image projector, designed for long-range image, textures and logo projections.
Built in a durable IP66 die-cast housing, the Mosaico L offers a phenomenal output of 11,700 lumens and an extensive set of features including a rotating animation wheel, 7 interchangeable gobos, and motorized framing shutters that precisely focus within a certain projection area.
It has an exceptional zoom range, from 7° to 49°, making it versatile in both near-field and long-throw installations, or even for static and animated facade building lighting.
FEATURES
- IP66 for long-lasting installations, with minimal maintenance needed
- 7°- 49° linear zoom system, for both near and long throw installation
- 300W White LED engine (8,000K), with up to 11'700 lumen output
- Extensive feature set including 7 colour-filters on wheel, 7 interchangeable rotating gobos, animation wheel and motorized framing shutters
LIGHT SOURCE
- Source: 300W high-power white LED
- CCT: 8.000K
- Luminous flux: (7°) 8'536 lm - (49°) 11'729lm @full
- Lux: (7°) 28'230 lx - (49°) 867lx @5 m full
- Source life expectancy: > 20.000 h
OPTICS
- Zoom: 7°- 49° motorised linear zoom
- Lens diameter: 110m
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
COLOUR SYSTEM
- Colour mixing: cold white LED with colour wheel
- Colour wheel: open + 7 colour filters
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer
- Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel: magnetic interchangeable animation wheel with CW and CCW rotation
- Rotating gobos: open + 7 rotating gobos + open, interchangeable, indexing
- Gobo size (BW): outer: 26,9 mm - image: 23 mm
- Gobo size (Color): outer: 26,9 mm - image: 20,5 mm
- FX generator: shutter macros with adjustable speed
- Circular prism: 3ff with bi-directional rotation, indexing
- Frost: linear 0 - 100% frost filter
- Special features: record scenes and create chases and shows throughout these scenes
BODY
- Body: weatherproof IP66 construction
- Body colour: RAL 9006
- Other: Inspectable cover window for gobos replacement and maintenance
CONTROL
- Protocols: DMX512, RDM, W-DMX
- Stand Alone: Stand Alone programmer and playback
- DMX channels: 22 / 32 / 43channel
- Wireless Control: included, Lumen Radio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1~30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° C / +45° C (-4° F / +113° F)
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 25.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 440W
- Output (at 230V): 4 units on a single power line
- Power factor: > 0,98
PHYSICAL
- IP rating: 66 for outdoor installations
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: bracket for hanging and positioning
- Adaptors: XLR and Schuko 16A adaptors included
- Signal connection: moulded IP signal IN/OUT connectors
- Data connection: W-DMX transreceiver
- Power connection: moulded IP power IN/OUT connectors
- Dimensions (WxHxD): 362x428x451mm
- Weight: 25kg
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x MOSAICOL
- 1 x BARE END - IP connection adapter
- 1 x 5p XLR - IP connection male adapter
- 1 x 5p XLR - IP connection female adapter
- User Manual
