NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

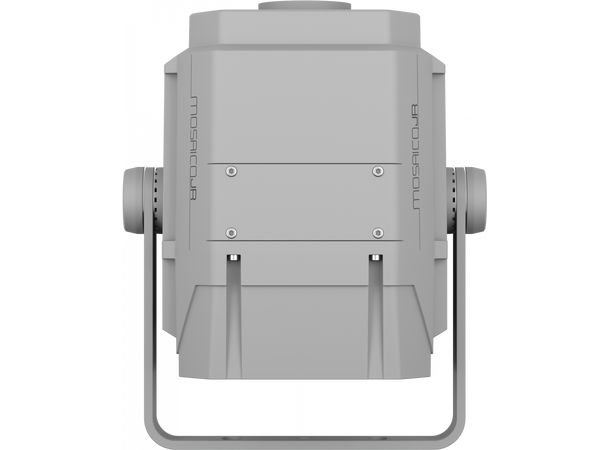

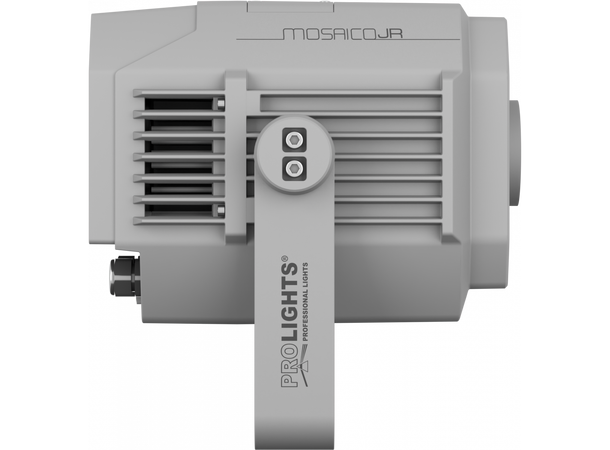

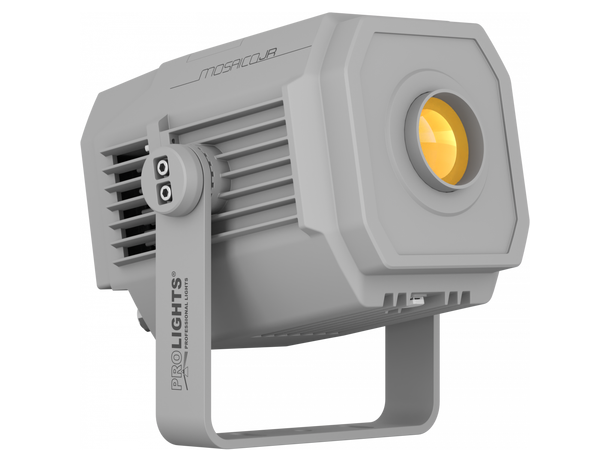

MOSAICOJR is a compact IP rated LED gobo projector designed for the projection of logos, images and textures onto commercial buildings, hotels and city facades. The small size allows for mounting anywhere without any impact on the surrounding environment or architecture. The onboard zoom ranges from 14° to 44° allowing for an extensive user-flexibility, from projecting crisp and accurate logos to textured projections.
FEATURES:
70W White LED engine delivering 2.900 lumens
IP66 and equipped with 14-44° linear zoom system to meet any install
Onboard rotating gobo wheel, colour wheel and wireless DMX
LIGHT SOURCE
Source: 70W white LED
CT: 7900K
Luminous flux: (14°) 2861 lm - (44°) 2681lm
Lux: (14°) 6070 lux - (44°) 848lux @3m
Lux: (14°) 2250 lux - (44°) 315lux @5m
Source life expectancy: >50.000 h
OPTICS
Zoom: 14° - 44° motorised linear zoom
Lens diameter: 63mm
Lens type: high-quality glass lens optics
Focus: motorised
COLOUR SYSTEM
Colour wheel: 7 dichroic filters + open
DYNAMIC EFFECTS
Rotating gobos: 7 rotating gobos + open, indexing
Gobo size: gobo Ø 15.9 mm - img Ø 12.5 mm - 0.2 mm
Auto mode: built-in programs with execution speed adjustment
Special features: Record scenes and create chases and shows throughout these scenes
BODY
Hardware on-board: on board mechanics for rigging to the ceiling
Body: aluminium die-casting
Body colour: cool gray 6C
CONTROL
Protocols: DMX512, RDM, W-DMX
DMX channels: 8 / 14channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED high resolution display
Firmware upgrade: yes, via USB-DMX interface (UPBOX1) not included
Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS
Dimmer: linear 0~100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 21 Hz, electronic
Battery backup: battery backup for user operation without connecting to the main power
Operating temperature: -20° ~ +45°
Flicker: flicker free frequency with adjustable PWM
ELECTRICAL
Power supply: 100-240V – 50/60Hz
Power consumption (at 230V): (static) 86.5W - (dinamic) 91.3WW
Power consumption (at 120V): (static) 85W - (dinamic) 84.4WW
Output (at 230V): 23 units on a single power line
Output (at 120V): 13 units on a single power line
Power factor: pF 0.98 @ 230 - pF 0.99 @ 120
PHYSICAL
Cooling: forced air with IP low noise fan
Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Adaptors: XLR and Shuko 16A adaptors included

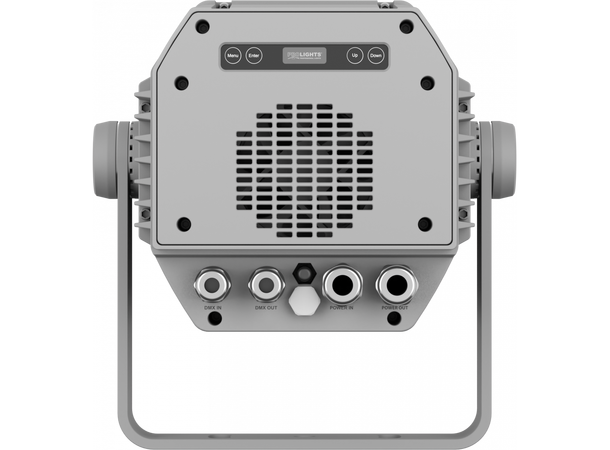

Signal connection: moulded IP signal IN/OUT connectors
Data connection: W-DMX receiver

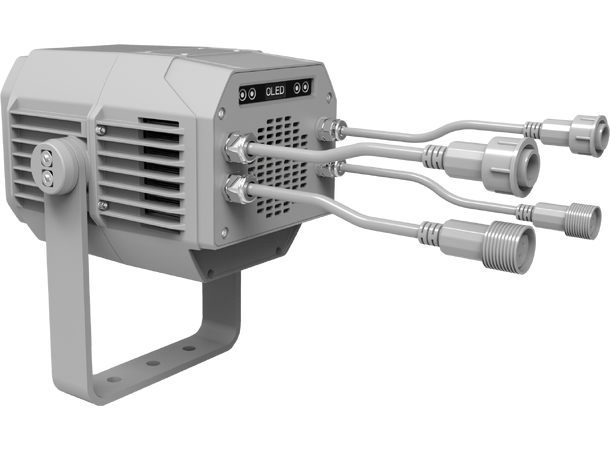

Power connection: moulded IP power IN/OUT connectors
IP rating: 66 for outdoor installations

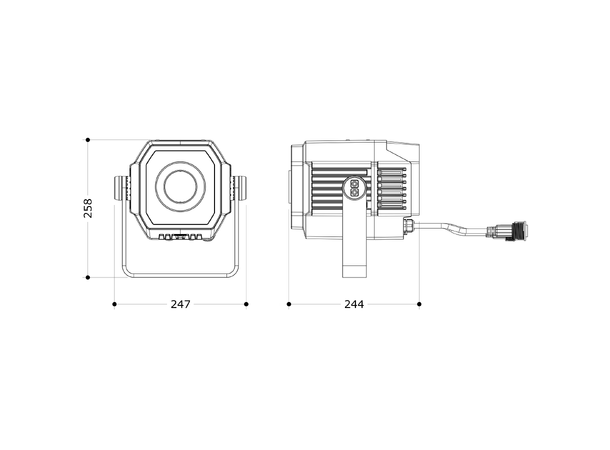

Dimensions (WxHxD): 245x247x258mm
Weight: 10kg
