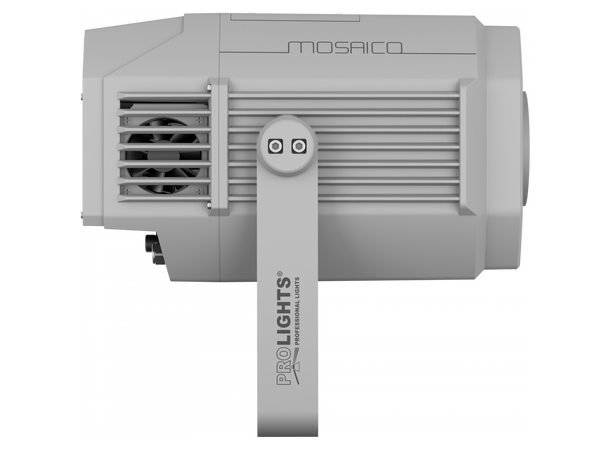

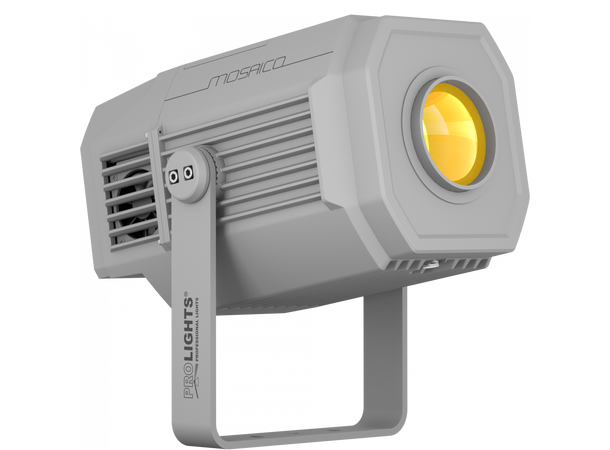

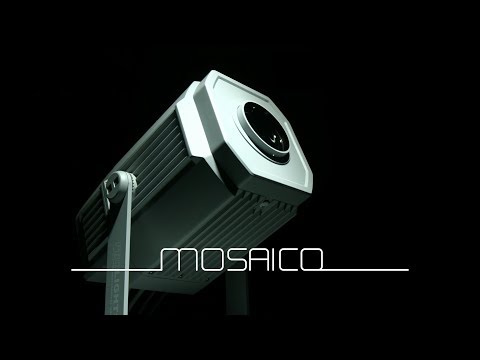

Mosaico is a powerful exterior LED image projector for the projection of textures, images and logos onto buildings and landscapes. The outstanding 11'000 lumens output allows for replacement of the 1.200 HID fixture with this far more durable and advanced tool. The complete set of on board effects allow for extreme creative integration in any context and the zoomable optics makes it a truly versatile fixture for both near-field and long-throw installations.
Features:
IP66 allowing long-lasting installation with minimal maintenance
Beam angle zooming from 10° to 45° allows for flexible use and opens up a new level of effects
Extremely bright with over 11'000 lumens, crisp focus and with 5 layers of effects allowing for limitless combinations
LIGHT SOURCE
Source: 250W high-power white LED
CCT: 7.300K
CRI:
Luminous flux: (10°) 4'037 - (45°) 8'196lm

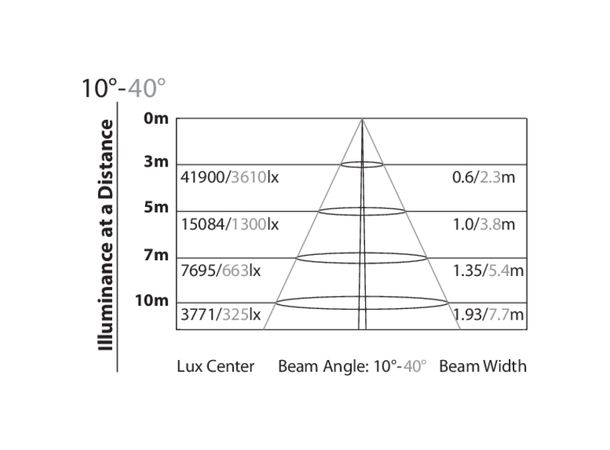

Lux: (10°) 39'895 lx- (45°) 3'482lx @3 m full
Lux: (10°) 14'362 lx - (45°) 1'253lx @5 m full
Source life expectancy: > 20.000 h
Other: TM-30-15RF/RG: 71/95 - TLCI: (10°) 47,6 - (45°) 49,2
OPTICS
Zoom: 10° - 45° motorised linear zoom
Lens diameter: 109mm
Lens type: high-quality glass lens optics
Focus: motorised
COLOUR SYSTEM

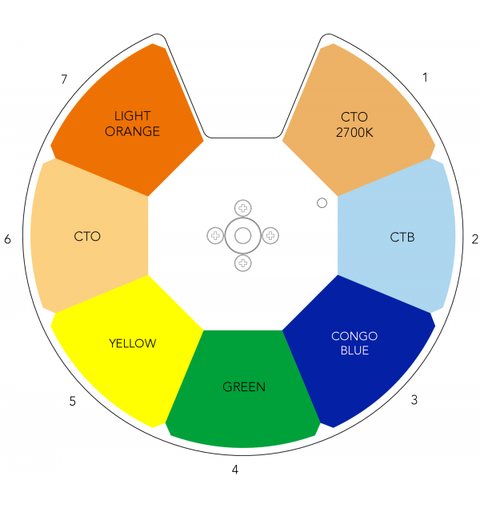

Colour wheel: 14 colour filters on two colour wheels
DYNAMIC EFFECTS
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 26,7 mm - image: 23 mm - thickness: 1,1 mm
Circular prism: 3f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
Iris: 5 - 100% motorised iris
Special features: interchangeable animation wheel through magnets
BODY
Body: aluminium die-casting
Body colour: cool gray 6C
Other: Inspectable cover window for image replacement and maintenance
CONTROL
Protocols: DMX512, RDM, W-DMX, Stand Alone program and playback
DMX channels: 12 / 14 / 16 / 19channel
W-DMX: included, wireless solution receiver
RDM: RDM ready for fixture remote monitor and settings
Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1~30 Hz, electronic
Operating temperature: -20° ~ +45°
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz
Power consumption (at 230 V): 316W
Power consumption (at 120 V): 320W
Output (at 230 V): 11 units on a single power line
Output (at 120 V): 6 units on a single power line
PHYSICAL
Cooling: active, with IP low noise fan

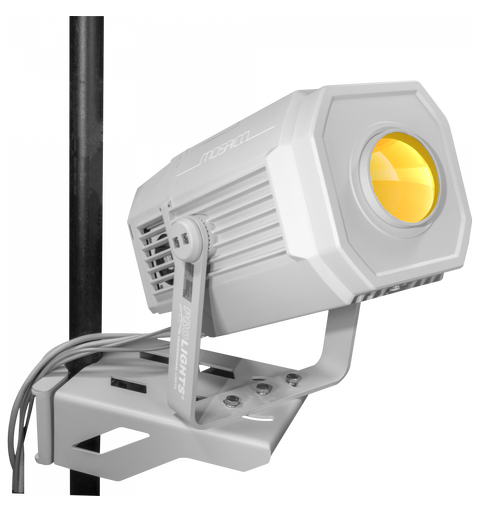

Sospension and fixing: hanging bracket suitable for safe hanging and positioning
Adaptors: XLR and Schuko 16A adaptors included

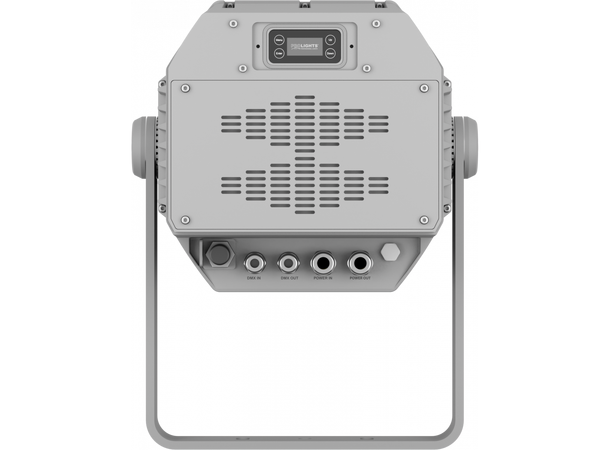

Signal connection: moulded IP signal IN/OUT connectors
Power connection: moulded IP power IN/OUT connectors
IP rating: 66 for outdoor installations
Dimensions (WxHxD): 332x425x453mm
Weight: 19,3kg
