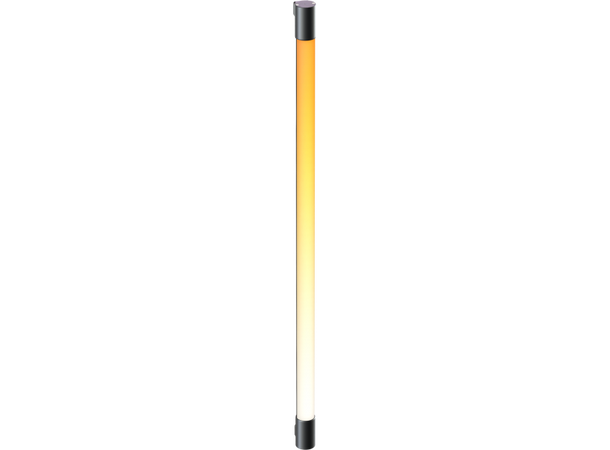

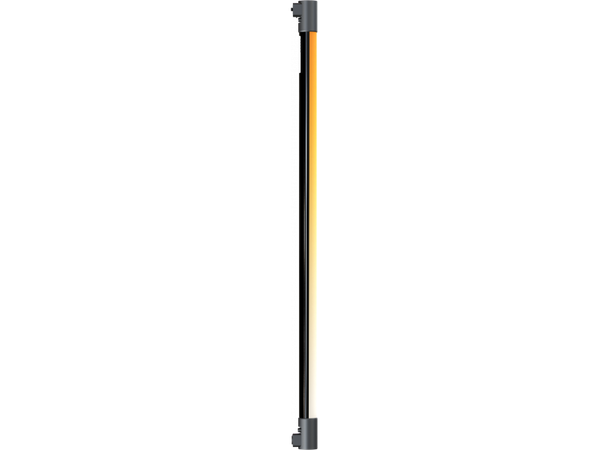

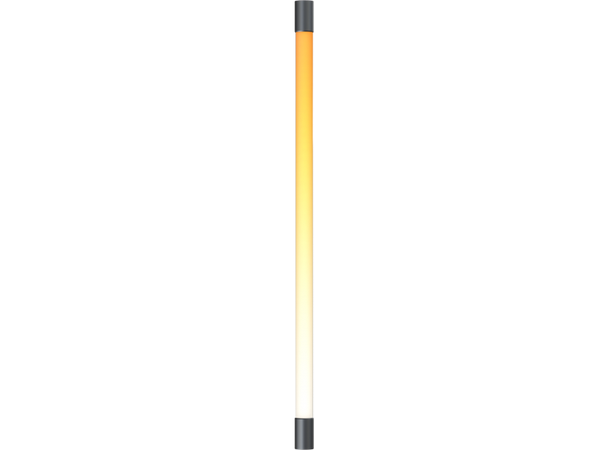

The EclSoft Tube100 is a multipurpose, IP65 wireless linear pixel tube designed for Film & TV, indoor and outdoor environments. The EclSoft Tube100 has a 48W RGB + Warm White LED source with 16 independently-controlled sections. Similar the other fixtures in the soft light range, it has an RGBW mode, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels. This fixture has high-quality tunable white with ultra-high CRI, as well as on-board cinema effects and pixel effects. This fixture is also “Spektra™ Calibrated”, sharing the same colour calibration standard as some other luminaires. The EclSoft Tube100 can be used wirelessly with its on-board battery and Wireless DMX control (CRMX + W-DMX). There is also a wired connection for mains power and an ethernet port for Art-Net or s/ACN.
FEATURES:
- Hybrid fixture, Wireless DMX (CRMX+W-DMX) / ethernet control, battery/mains power
- Pixel control, on-board cinema pixel engine, RGB + Warm White LED source with high CRI (up to 93) and TLCI
- IP65 for outdoor applications
- LIGHT SOURCE
- Source: 48W RGB + Warm White
- Luminous flux: 2'386lm @full
- Lux: 71lx @3 m
- Lux: 161lx @2 m
- CRI: 93
- R9: 92
- TLCI: 91
- TM30 Rf: 91
- TM30 Rg: 105
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 128°
- Field angle: 199°
- Lens type: frosted acrylic tube
COLOUR SYSTEM
- Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, colour macros, CTO on colours
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2.800 K - 10.000K with 28 K resolution
- Colour wheel: virtual colour wheel with macros
- Macros: several pre-built pixel macros with adjustable speed
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- FX generator: 16 sections with adjustable foreground/background colour, index, speed, direction
- Static mode: selection of static colour
- Manual mode: manual adjustment of colour
- Auto mode: built-in programs with execution speed adjustment
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
- BODY
- Body: sturdy policarbonate and die casting aluminium

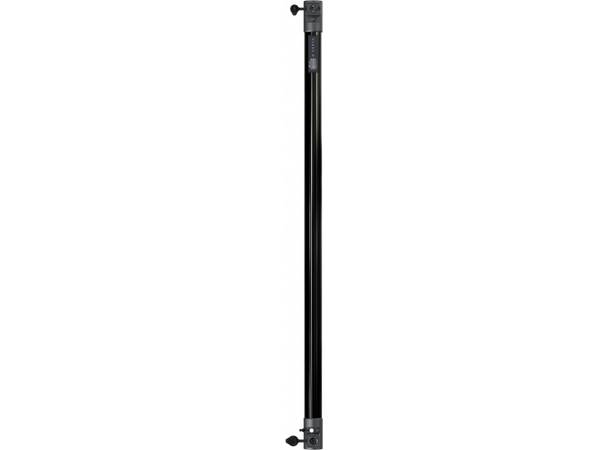

- Body colour: black on the back and white wash on the front
CONTROL
- Protocols: Art-Net, Kling-Net, sACN, CRMX+W-DMX
- DMX channels: main personality 1 / 2 / 13 / 14 / 18 / 19 / 20 / 23 / 33 / 43channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1+EST100UPBOXI) not included
- IR: infrared sensor controlled by remote (included in the pack, not included in single unit)
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: 0° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 3.000 / 6.000 /12.000 / 24.000 Hz
ELECTRICAL
- Max power consumption: 55 W
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 15V
- Power factor: >0,96
BATTERY
- Battery: 16,8V lithium
- Estimated battery life: Selectable 3h / 6h / 8h / 12h / 16h / 18h
- Re-charge connection: DC with jack and AC with standard powercon connector
- Re-charge time: 5h/max
- Battery status: shown on display
- Other: Battery recharge in AC and DC, operation in main power with possibility to disable battery recharge throught software and charging operation in flightcase through external charger
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: passive cooling and fan-free

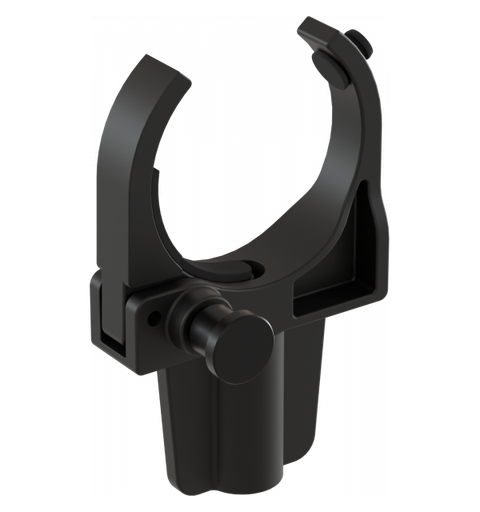

- Suspension and fixing: M5 threaded insert for eye bolt, floor stand and clamp for wall installation

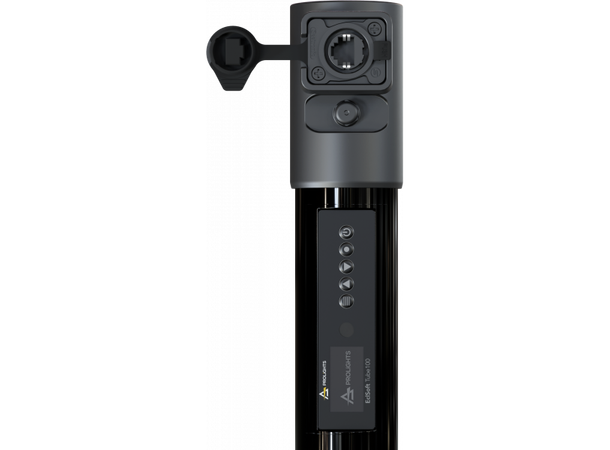

- Data connection: Seetronic RJ45 IP65 IN

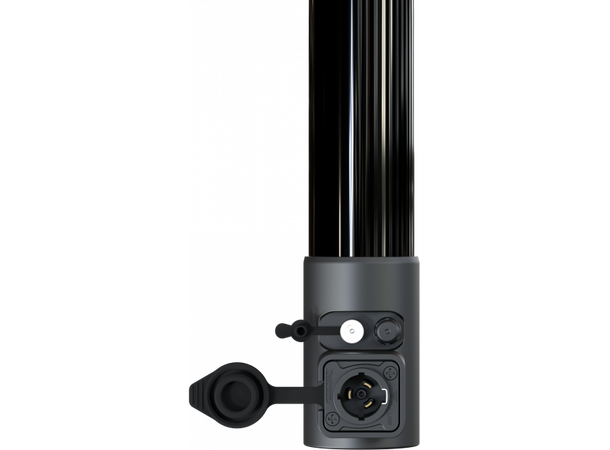

- Power connection: DC connector for battery recharge and Seetronic powerCON TRUE IP65 IN

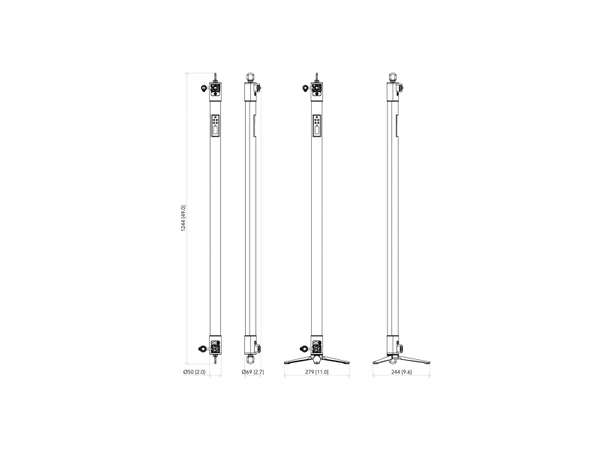

- Dimensions (WxHxD): 1.163x50x50mm
- Weight: 2,4kg
- CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ECLSOFTTUBE100
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
