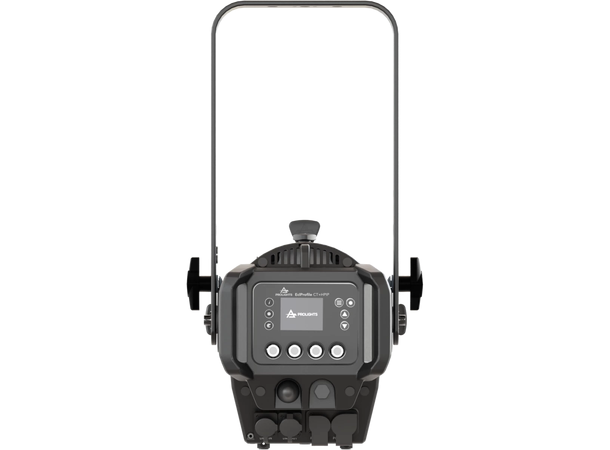

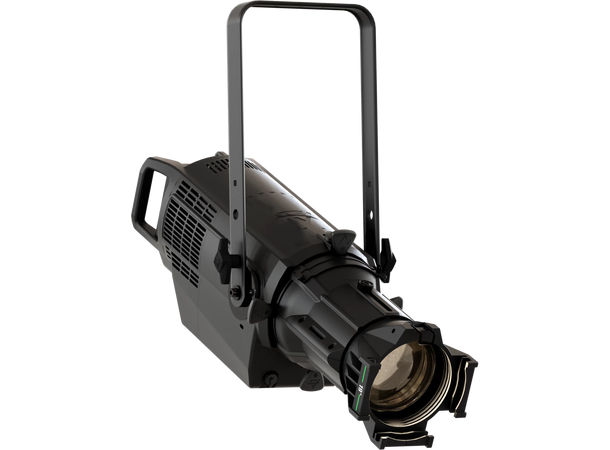

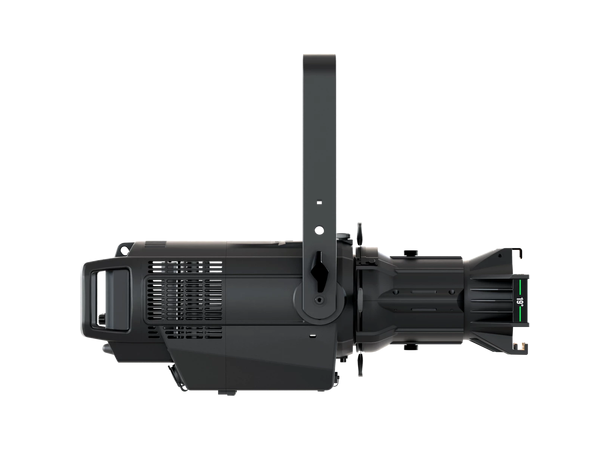

IP65 450W high quality VariableWhite LED ellipsoidal, compatible with PRL and PRLZ lenses
ECLProfile FWHPIPVW is a true workhorse for white light applications. It features a 450 W LED engine delivering an impressive 16.600 lm output. The VariableWhite source provides excellent colour rendering for outstanding light quality and easy operation in broadcast studios, exhibitions/expos, and outdoor applications. Thanks to its IP65-rated housing, the fixture is suitable for outdoor use and challenging environmental conditions.
Designed for long throw distances and higher trim heights, the ECLProfile FWHPIPVW is an ideal replacement for traditional HPL 750 W and 2 kW tungsten ellipsoidals, excelling in large venues and outdoor productions.
ECLProfile FWHPIPVW delivers precise CCT reproduction with a user-friendly interface. The enhanced 2.4-inch display, paired with four RGB-backlit, push-to-select encoders, provides fast and intuitive control across multiple operating modes ensuring consistent and efficient operation for professionals, even in outdoor environments.
Despite its increased output and IP65 construction, the fixture maintains the compact footprint of its predecessor and remains compatible with industry-standard fixed and zoom optics, including PRL and PRLZ lenses. This enables seamless integration into existing inventories, making it a versatile and cost-effective solution for a wide range of indoor and outdoor lighting requirements.
Main features:
- 450?W high-quality VariableWhite LED ellipsoidal, 16.600?lm
- Linear white CCT from 2,700?K to 6,500?K
- CRI and R9 up to 98
- Silent operation, compatible with industry-standard accessories
- IP65-rated for outdoor use
Technical specifications
LIGHT SOURCE
- Source: 450W Variable White LED
- Luminous flux: (19°) 13'419 lm; (26°) 16'662 lm; (50°) 15'037 lm; @5.600 K
- Lux: (19°) 6'667 lx; (26°) 4'537 lx; (50°) 1'236lx @5 m 5.600 K
- CRI: up to 98
- R9: up to 98
- TLCI: up to 99
- TM30 Rf: 96 @3200K; 96 @5600K
- TM30 Rg: 103 @3200K; 102 @5600K
- Source life expectancy: > 50.000 h
OPTICS
- Lens type: high-quality glass lens optics
- Additional optics: optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
- Focus: manual
- Other: see available accessories
- COLOUR SYSTEM
- Colour mixing: tunable white
- CCT: CCT control range from 2.800K to 6.500K
DYNAMIC EFFECTS
- Rotating gobos: optional, see available accessories
- Gobo size: B, outer: 86 mm - image: 64,5 mm - thickness: 1,1 mm
- Special features: 4 fan modes available and output management
- BODY
- Body: sturdy die-cast magnesium body
- Body colour: RAL 9004
CONTROL
- Protocols: DMX512, RDM, CRMX (optional)
- Stand Alone: 4 pushable RGB backlit encoder
- DMX channels: from 1 channel to 16channel
- Wireless Control: optional, LumenRadio TimoTwo DMX/RDM compatible with both CRMX, CRMX2 (as RX mode only) and
- W-DMX, Bluetooth capable
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) through dedicated software
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 25 Hz, electronic
- Operating temperature: -10° ~ +45° Ta
- LED Control: flicker free operation
- Selectable PWM: 1282 ~ 20.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 450W
- Standby power: 10,2 W
- Output (at 230V): 5 units on a single power line
- Power factor: > 0,94
PHYSICAL
- IP rating: IP65 for temporary outdoor application, not for fixed installations
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: bracket for hanging and positioning
- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 292x267x628mm / 11.5''x10.51''x24.72''
- Weight: 8,5kg / 18.74lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, RCM
BOX CONTENT
- 1 x ECLFWHPVWBK
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
- User Manual
