NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

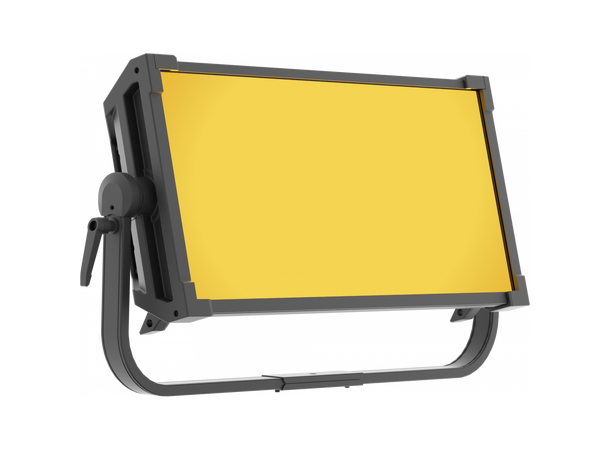

EclPanel TWC, is the compact 2x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWC comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30. The EclPanel TWC allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWC offers easy rigging and cabling making it the perfect lighting tool for every location.
Features:
740W RGB + Warm White LED source

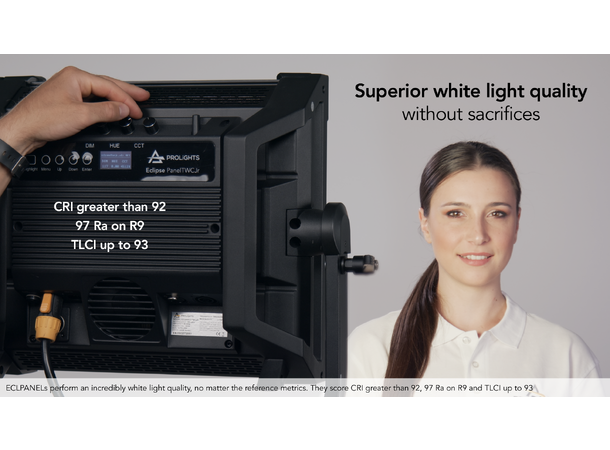

CRI > 95,5; R9 > 92; TLCI > 92
8 section pixel control and built-in lighting effects for Cinema applications
Silent operation with multiple fan modes

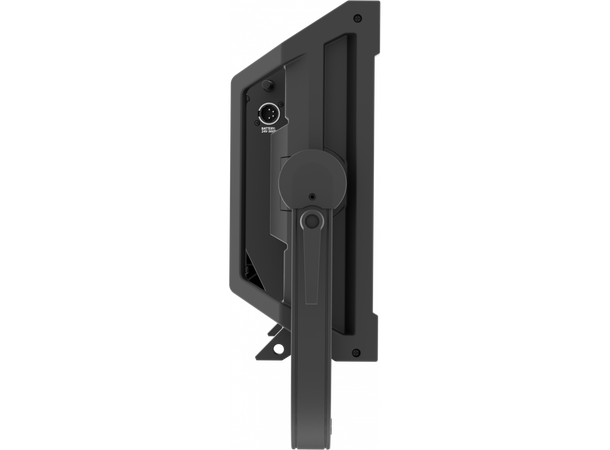

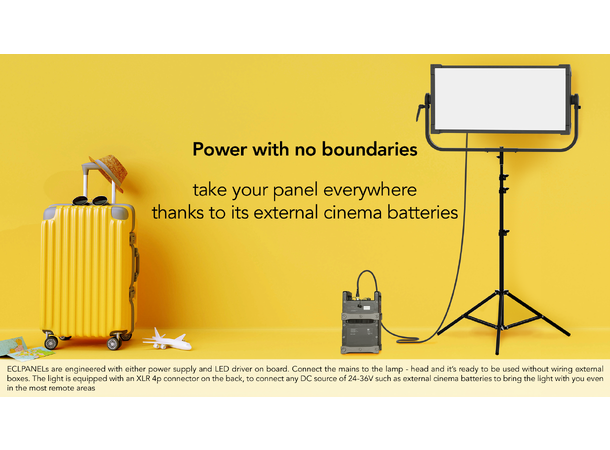

Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
LIGHT SOURCE
Source: 740W RGB + Warm White
Luminous flux: 34'236lm @4.000 K with MD filter
Lux: 404lx @5 m full
CRI: 94,6 @ 3200K; 95,5 @ 5600K
R9: 97 @ 3200K; 92 @ 5600K
TLCI: 92 @ 5600K
TM30 Rf: 92 @ 3200K; 89,5 @ 5600K
TM30 Rg: 103 @ 3200K; 102,4 @ 5600K
Source life expectancy: > 50.000 h
OPTICS

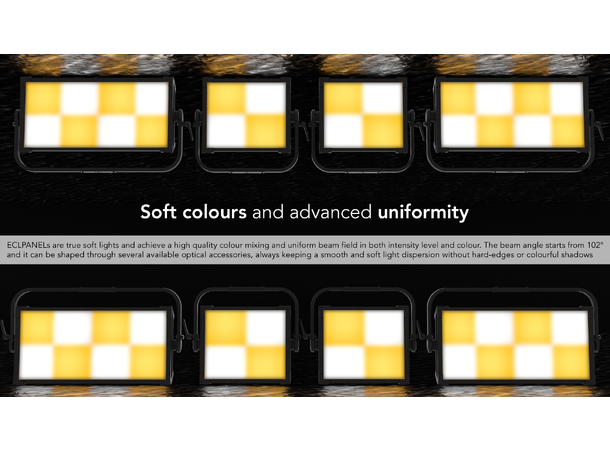

Beam angle: 102°
Field angle: 159°

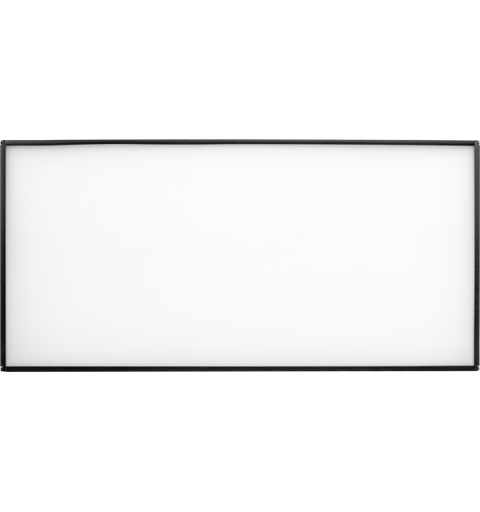

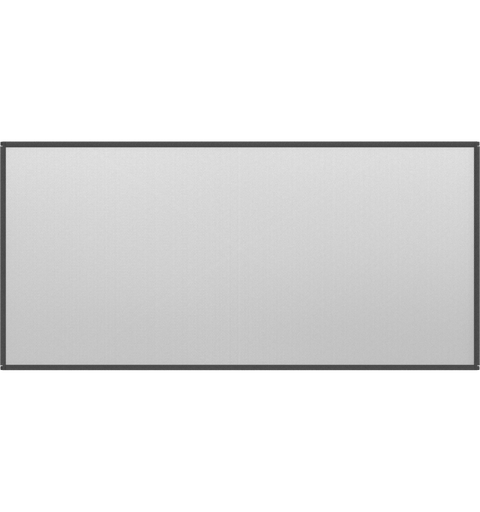

Lens type: Medium Density diffusion panel (interchangeable)

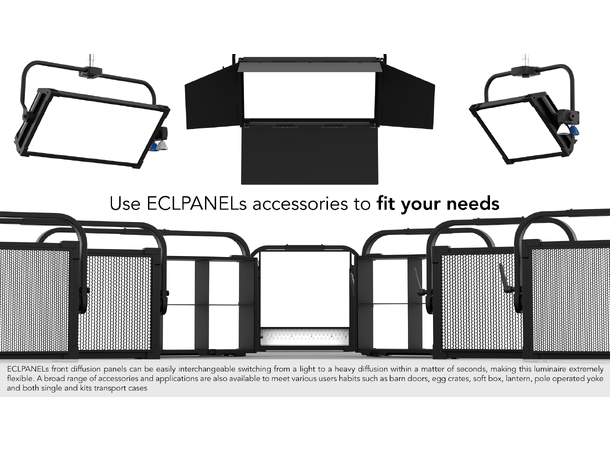

Additional optics: see available accessories
COLOUR SYSTEM

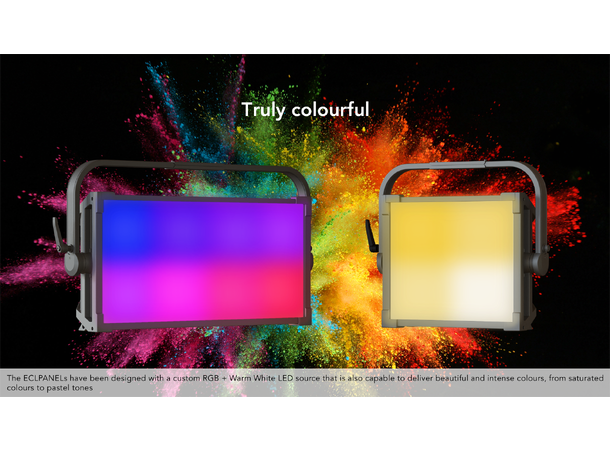

Colour mixing: RGB + Warm White
CTC: CTC control, + / - green correction, Tungsten emulation

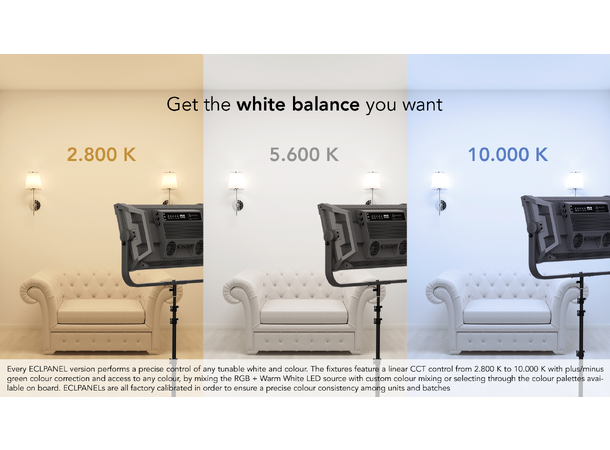

White presets: 2800 K - 10000K with 28 K resolution
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Control Resolution: 16bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: sturdy die-cast aluminium body
Body colour: black
CONTROL
Protocols: DMX512, RDM, W-DMX, rotatory knob

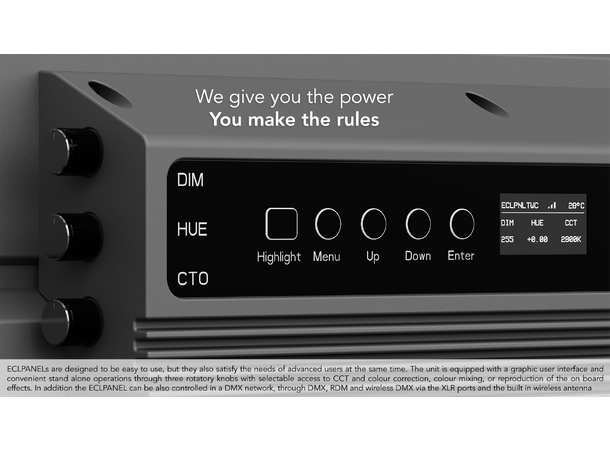

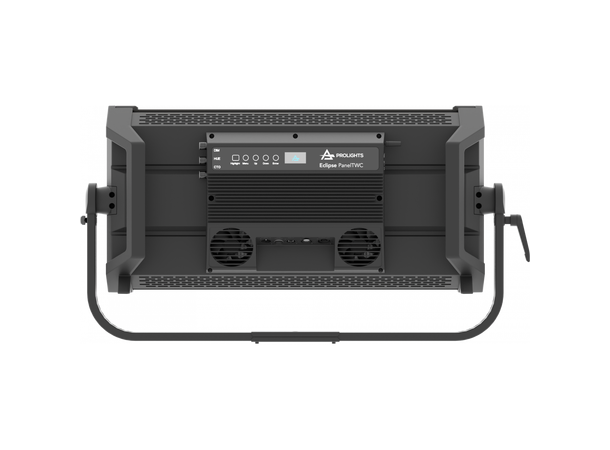

Stand Alone: selectable mode through 3 rotatory knobs
Pixel control: 8 section control
W-DMX: included, wireless solution receiver
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
Mains power supply: 100-240 V – 50/60 Hz
Low Voltage DC mains: 24-36V
Max power consumption: 440W
Power factor: >0,94
PHYSICAL
Cooling: active, silent operation

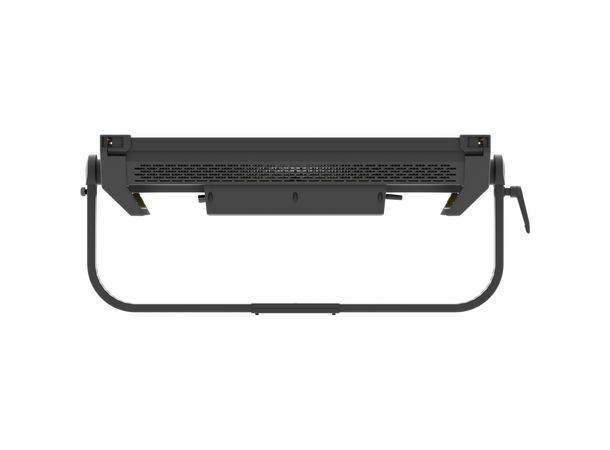

Sospension and fixing: bracket for hanging and positioning

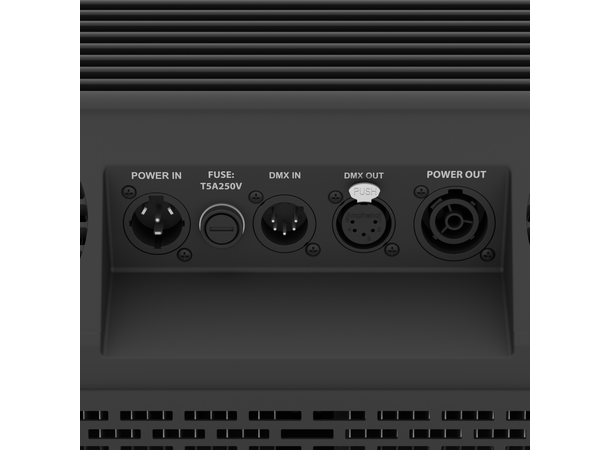

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Low Voltage DC connector: XLR 4p
IP rating: 20
Dimensions (WxHxD): 819x431x144 mm / (with PO system) 836x431x144mm
Weight: 15,3 / (with PO system) 17,1kg

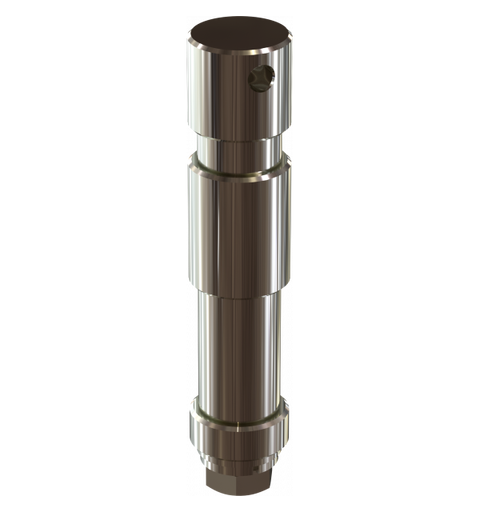

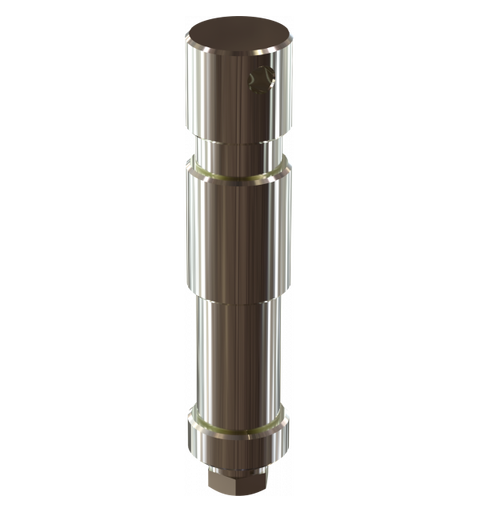

*1 stk Ø28mm spigot følger med
