NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

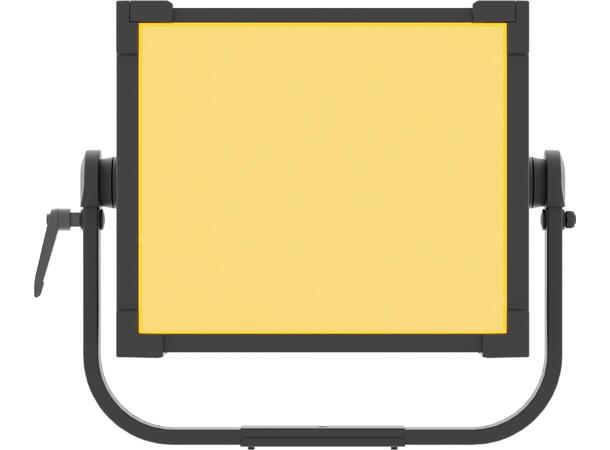

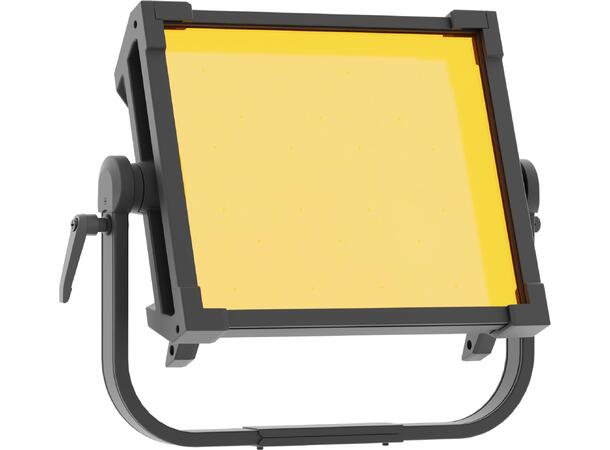

EclPanel TWCJr, is the compact 1x1 LED soft light that provides a beautiful, wide source of soft and precise colours. In addition to this, the PROLIGHTS EclPanel TWCJr comes with a full range of white reproductions, from daylight through to tungsten tones, reaching a superior light quality with high CRI, TLCI and TM-30. The EclPanel TWCJr allows for quick and accurate local adjustment of light through 3 rotatory knobs with three fully featured modes: CCT with +/- green shift, HSI for total control of hue, saturation and intensity, FX mode to access the on board pixel cinema effects. The unit can also be controlled on a per-section basis, allowing for reproduction of onboard customisable effects or to be self-made through the lighting desk. Both methods provide eye-candy, with the appealing and modern front looks and cinematic special effects. The unit is designed with an onboard driver and built-in power supply and, being lightweight, the EclPanel TWCJr offers easy rigging and cabling making it the perfect lighting tool for every location.
Features:
370 W RGB + Warm White LED source
CRI > 94; R9 > 88,8; TLCI > 92
4 section pixel control and built-in lighting effects for cinema applications
Silent operation with multiple fan modes
Battery connection (4pXLR 24-36V): compatible with industry standard external batteries (optional)
LIGHT SOURCE
Source: 370W RGB + Warm White
Luminous flux: 17'109lm @4.000 K with LD filter
Lux: 265lx @5 m full
CRI: 90 @3.200 K; 94 @5.600 K
R9: 84,1 @3.200 K; 88,8 @5.600 K
TLCI: 92 @5.600 K
TM30 Rf: 90 @3.200 K; 89,4 @5.600 K
TM30 Rg: 105 @3.200 K; 104 @5.600 K
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 102°
Field angle: 158°
Lens type: medium density diffusion panel (interchangeable)

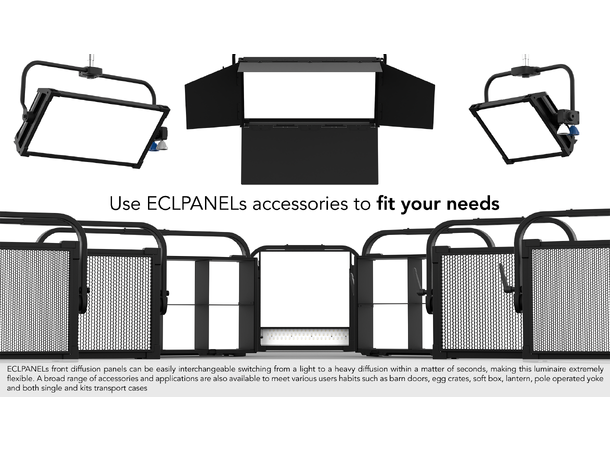

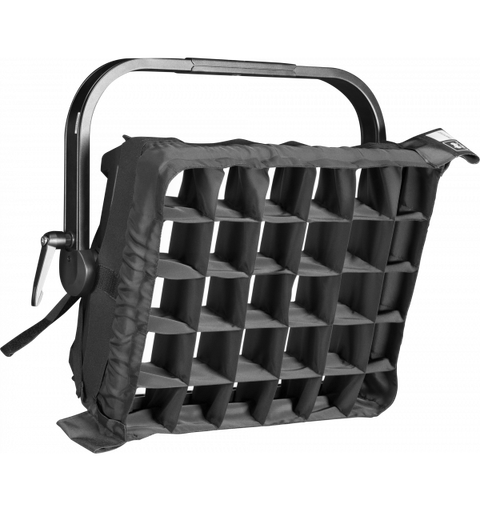

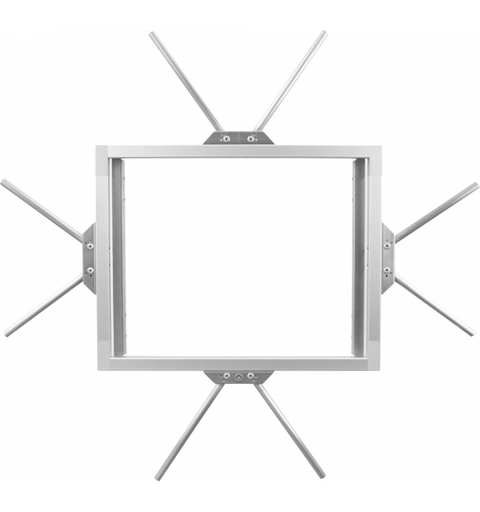

Additional optics: see available accessories
COLOUR SYSTEM

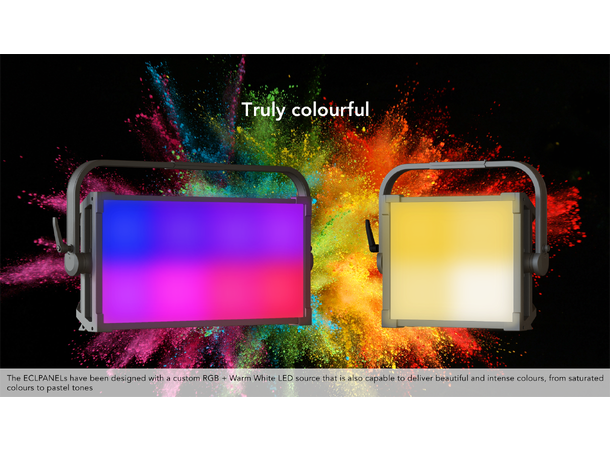

Colour mixing: RGB + Warm White
CTC: CTC control, + / - green correction, Tungsten emulation
White presets: 2.800 K - 10.000K with 28 K resolution
Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
Control Resolution: 16bit dimmer, colours
Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
Body: sturdy die-cast aluminium body
Body colour: black
CONTROL
Protocols: DMX512, RDM, W-DMX, rotatory knob

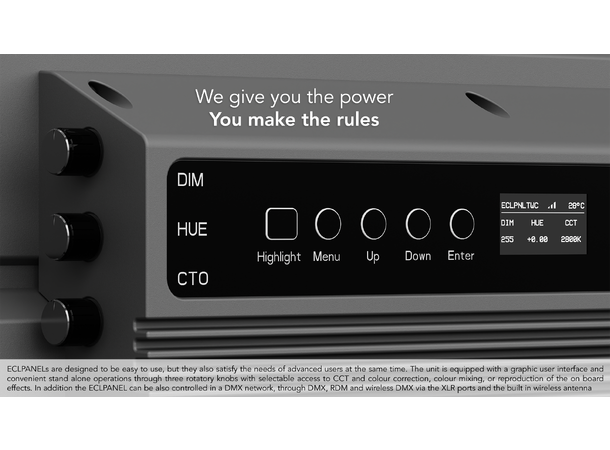

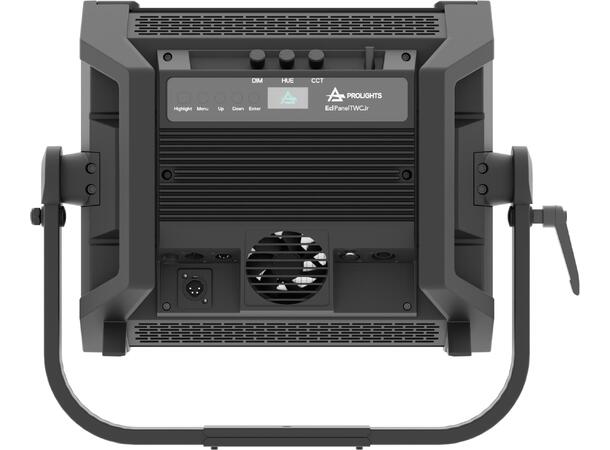

Stand Alone: selectable mode through 3 rotatory knobs
Pixel control: 4 section control
W-DMX: included, wireless solution receiver
RDM: RDM ready for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
ELECTRONICS
Dimmer curves: selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 40.000 Hz
ELECTRICAL
Mains power supply: 100-240 V – 50/60 Hz
Low Voltage DC mains: 24-36V
Max power consumption: 230W
Power factor: >0,97
PHYSICAL
Cooling: active, silent operation

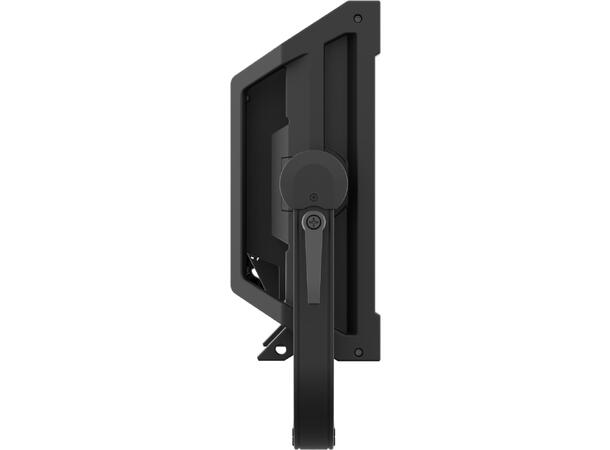

Sospension and fixing: bracket for hanging and positioning

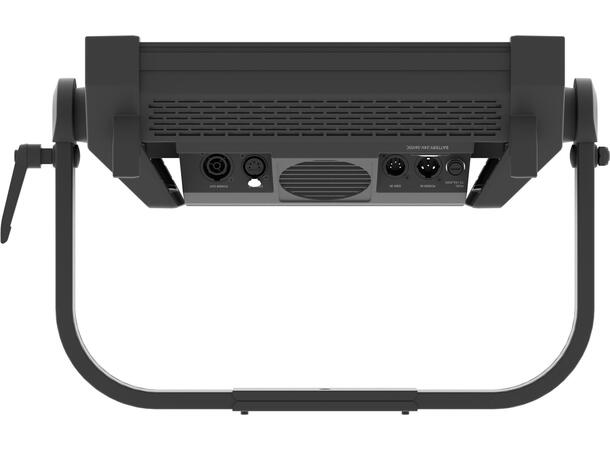

Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Low Voltage DC connector: XLR 4p
IP rating: 20
Dimensions (WxHxD): 529x430x144 mm / (with PO system) 546x430x144mm
Weight: 10,5 kg / (with PO system) 11,8kg
