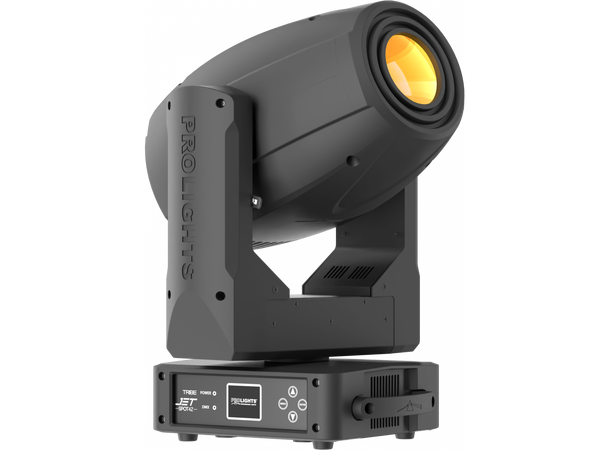

JETSPOT4Z is a 180W 6800K LED spot luminaire designed to replace a 700W discharge fixture in theatre, concert and Venues. Its compact sizes allow to use this luminaire in venues with low ceiling without renouncing to zoom. Its custom optical system delivers a consistent output with a flat field and crisp gobo projection right though the massive 8° to 40° zoom range.
Features:Full CMY color mixing system combined with color wheel.
Rotating and static gobo wheels, plus prism, iris and linear frost.
HD Dimming
LIGHT SOURCE- Source: 180W High Power White LED
- CT: 6800K
- CRI: 68Ra
- Luminous Flux: 7518lm
- Lux: 8°- 25200 lux; 40° -3250lux @3m
- Lux: 8°- 2268 lux; 40° - 292lux @10m
- Source Life Expectancy: >30.000 h
OPTICS- Zoom: 8-40° Motorised linear zoom
- Lens Type: HQ glass lens optics
- Focus: Motorised
COLOR SYSTEM- Color Mixing: CMY color system on 3 gradually fading color wheels
- CTC: On wheel: 2500K and 3200K + CTB
- Color Wheel: 6 dichroic filters+Open on 3 independent color wheels
DYNAMIC EFFECTS- Rotating Gobos: 7 Rotating gobos+Open, Interchangeable, Indexing
- Gobo Size: 26,9 mm - img 23 mm - 0,3 mm
- Fixed gobos: 8 Fixed gobos+Open, Interchangeable
- Gobo Size: 29,8 mm - img 23 mm - 0,3 mm
- Circular Prism: 3f with bi-directional rotation, Indexing
- Frost: Linear 0-100% frost filter
- Iris: 5 - 100% motorized linear iris
- Auto Mode: Built-in programs with execution speed adjustment
BODY- Pan Angle: 540°
- Tilt Angle: 270°
- Pan/Tilt Resolution: bit 8/16 bit
- Feedback: Automatic repositioning after accidental movement
- Body: Aluminium structure with hi-resistance polycarbonate cover
- Body Color: Black
CONTROL- Protocols: DMX512, RDM
- DMX Channels: 23/25ch
- RDM: RDM ready for fixture remote monitor and settings
- Display: Black OLED high resolution display
- Firmware Upgrade: Yes, via USB-DMX interface (UPBOX1) not included
- Master/Slave: for synchronized operation of more units linked in a chain
ELECTRONICS- Dimmer: Linear 0~100% electronic dimmer
- Strobe/Shutter: 0 - 30 Hz, electronic
- Battery Backup: Battery backup for user operation without connecting to the main power
- Operating Temperature: -10° ~ +45°
- Flicker: Flicker free operation
ELECTRICAL- Power Supply: 100-240V \u2013 50/60Hz
- Power Consumption (at 230V): 250W
- Power Consumption (at 120V): 252W
- Output (at 230V): 14 units on a single power line
- Output (at 120V): 8 units on a single power line
PHYSICAL- Cooling: Forced air with low noise fan
- Suspension And Fixing: Any position with "quick-lock" omega brackets
- Pan/Tilt Lock: Pan and Tilt locking for transportation and maintenance

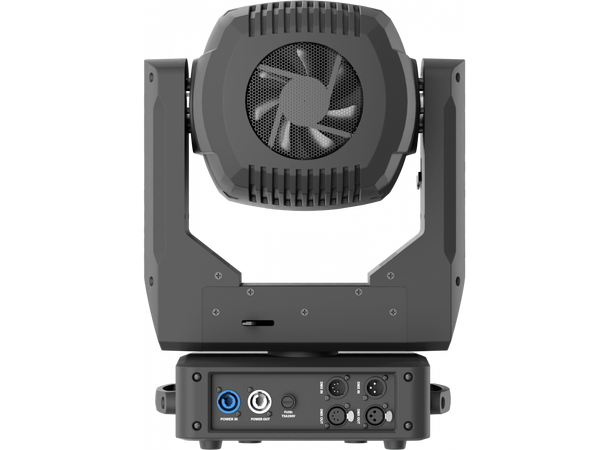

- Signal Connection: 3p+5p in/out
- Power Connection: PowerCON in/out
- IP: 20
- Dimensions (WxHxD): 332x544x230mm
- Weight: 18,6kg
