Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   Videokabel   >   SOMMER Classic Series MKII Videokabel
SOMMER Classic Series MKII Videokabel 1 x 0,60, PVC Ø 6,20 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,60, PVC Ø 6,20 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,60, PVC Ø 6,20 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,60, PVC Ø 6,20 mm, sort

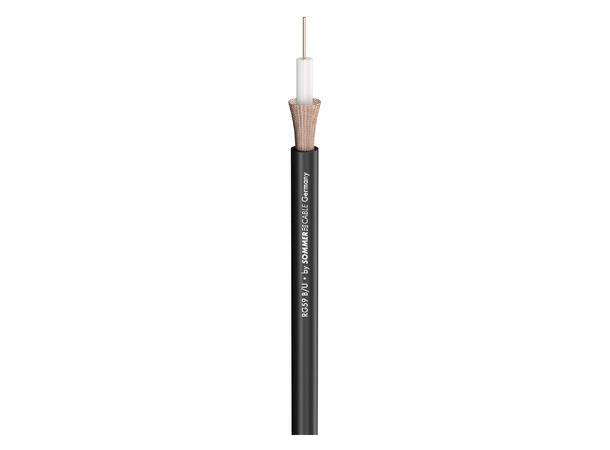

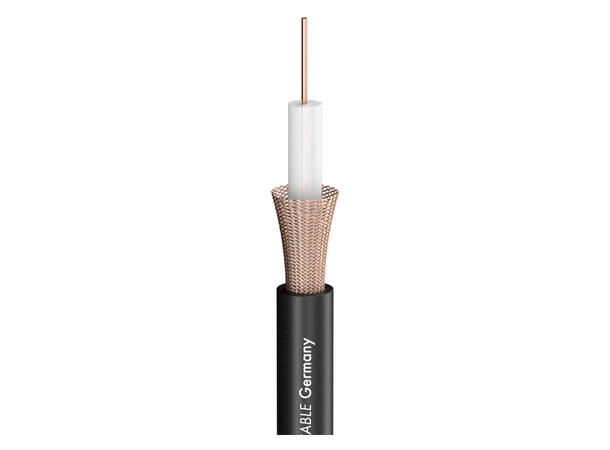

SOMMER Classic Series MKII Videokabel

1 x 0,60, PVC Ø 6,20 mm, sort

Varenr: 141744
Alt. varenr: 600-0451
30,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
1 x 0,25mm
1 x 0,25mm
1 x 0,42mm
1 x 0,42mm
1 x 0,45mm
1 x 0,45mm
1 x 0,60mm
1 x 0,60mm
1 x 0,72mm
1 x 0,72mm
1 x 0,78mm
1 x 0,78mm
1 x 1,02mm
1 x 1,02mm
1 x 1,06mm
1 x 1,06mm
1 x 1,85mm
1 x 1,85mm
1 x 1,98mm
1 x 1,98mm

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Dance at all parties...

this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission.


Advantages:

  • Extremely long life due to age-resistant jacket
  • Consistent and precise electrical values
  • Easy handling
  • Suitable for all standardised connectors

Application:

  • Data transmission
  • HF technology
  • Antenna construction
  • For fixed installations
  • Hifi connections
  • Computer technology


Specifications:

Article number600-0451
NameSC-Classic Series MKII
EAN4049371005760
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaELA 100 V
Application areaInstallation
ApplicationRG/U Coax
Colourblack
Colour detailedblack

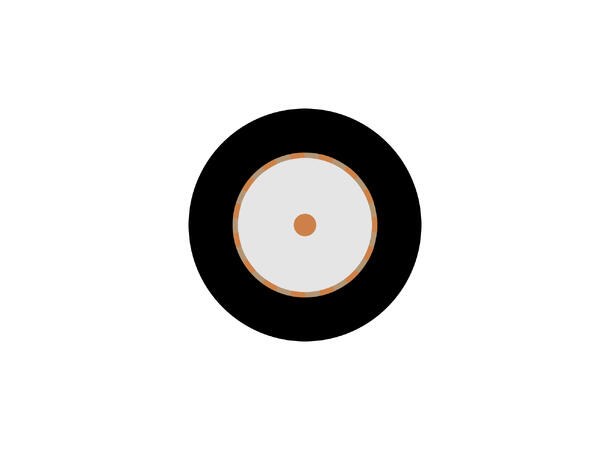

Construction02YSCY
Jacket materialPVC
Jacket Ø mm6,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,28
Inner conductor Ø (video) mm0,60
AWG (video)23
ShieldingCopper braiding
Shielding factor %92
Copper strands (video)1
Copper strand Ø (video) mm0,60
Conductor insulation materialPE
Conductor insulation Ø mm3,70
Weight per 1 m g47
UV-resistantyes
Fire load per m kWh0,24
Style variantround
Packing100 m ring
Packing500 m spool
Velocity factor0,66
Temperature min. °C-25
Temperature max. °C70
RG-TypeRG59 B/U
Width mm6,2
Height mm6,2
Capacity wire/electic screen at 1m (video) pF67
Capacity wire/electic screen at 1 ft. (video) pF20,4216

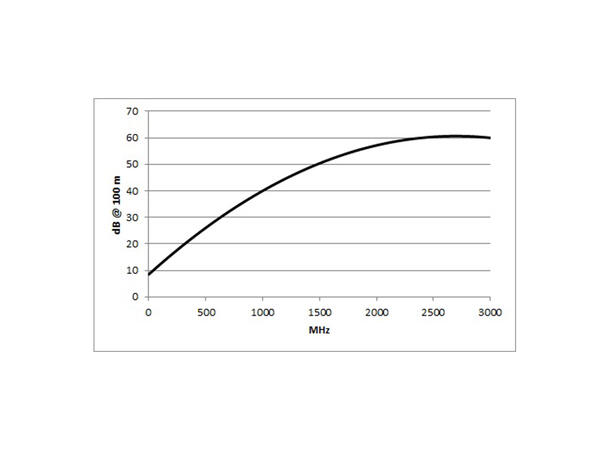

Damping at 100 MHz (100m & 20° C) dB11,1
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB3,3833
Damping at 200 MHz (100m & 20° C) dB16,8
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB5,1206
Damping at 470 MHz (100m & 20° C) dB25,1
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB7,6505
Damping at 862 MHz (100m & 20° C) dB36,4
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB11,0947
Damping at 1000 MHz (100m & 20° C) dB39,2
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB11,9482
Impedance O75
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
