SOMMER Classic Series MKII Videokabel 1 x 1,06, PVC Ø 10,30 mm, sort SOMMER Classic Series MKII Videokabel 1 x 1,06, PVC Ø 10,30 mm, sort SOMMER Classic Series MKII Videokabel 1 x 1,06, PVC Ø 10,30 mm, sort SOMMER Classic Series MKII Videokabel 1 x 1,06, PVC Ø 10,30 mm, sort

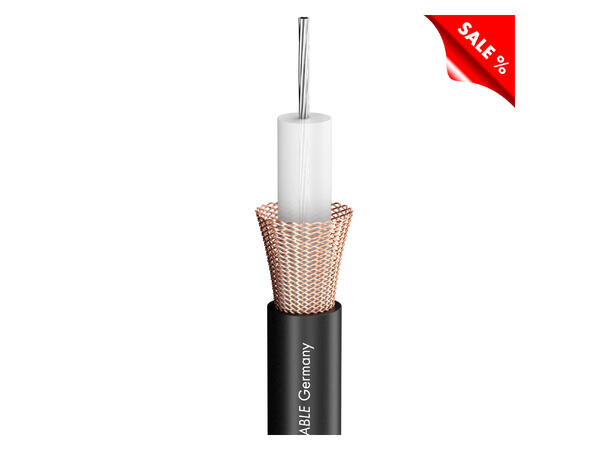

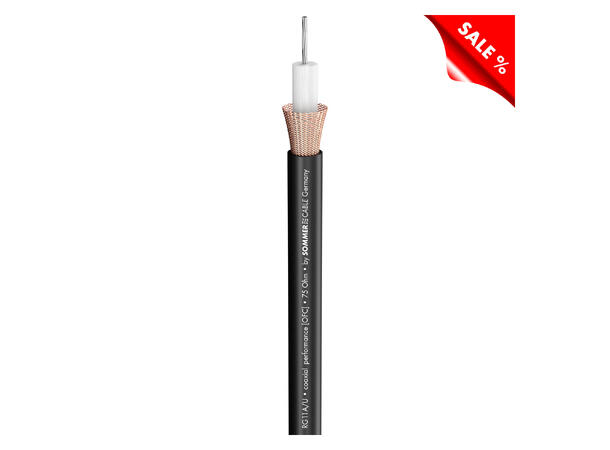

SOMMER Classic Series MKII Videokabel

1 x 1,06, PVC Ø 10,30 mm, sort

Varenr: 141745
Alt. varenr: 600-0471
38,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
1 x 0,25mm
1 x 0,25mm
1 x 0,42mm
1 x 0,42mm
1 x 0,45mm
1 x 0,45mm
1 x 0,60mm
1 x 0,60mm
1 x 0,72mm
1 x 0,72mm
1 x 0,78mm
1 x 0,78mm
1 x 1,02mm
1 x 1,02mm
1 x 1,06mm
1 x 1,06mm
1 x 1,85mm
1 x 1,85mm
1 x 1,98mm
1 x 1,98mm

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Dance at all parties...

this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission.

Please note that it may be for the following offers to remnants, discontinued models and returns. A postproduction of items listed is possible only in exceptional cases, the products and their packaging may have slight differences in color and light soiling.


Advantages:

  • Extremely long life due to age-resistant jacket
  • Consistent and precise electrical values
  • Easy handling
  • Suitable for all standardised connectors

Application:

  • Data transmission
  • HF technology
  • Antenna construction
  • For fixed installations
  • Hifi connections
  • Computer technology


Specifications:

Article number600-0471
NameSC-Classic Series MKII
EAN4049371005777
PropertiesAnalog
PropertiesDigital 75 O
PropertiesOFC oxygen free copper
Application areaStudio / Broadcast
Application areaELA 100 V
Application areaInstallation
ApplicationRG/U Coax
Colourblack
Colour detailedblack

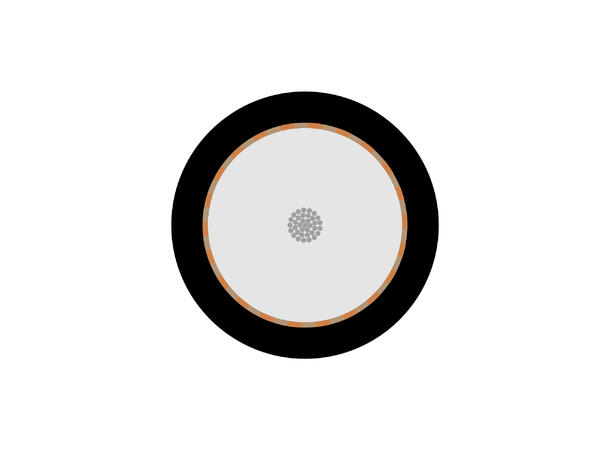

Construction02YSCY
Jacket materialPVC
Jacket Ø mm10,30
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,88
Inner conductor Ø (video) mm1,06
AWG (video)18
ShieldingCopper braiding, bare
Shielding factor %92
Copper strands (video)7
Copper strand Ø (video) mm0,40
Conductor insulation materialPE
Conductor insulation Ø mm7,30
Weight per 1 m g127
UV-resistantyes
Fire load per m kWh0,73
Style variantround
Packing500 m spool
Packing100 m ring
Velocity factor0,66
Temperature min. °C-25
Temperature max. °C70
RG-TypeRG11A/U
Width mm10,3
Height mm10,3
Capacity wire/electic screen at 1m (video) pF67
Capacity wire/electic screen at 1 ft. (video) pF20,4216

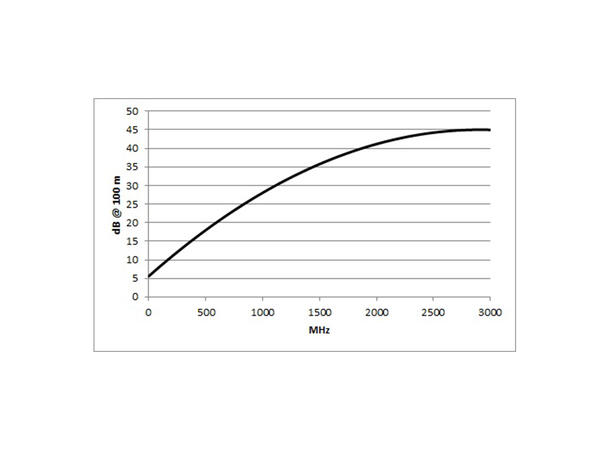

Damping at 100 MHz (100m & 20° C) dB7,7
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB2,347
Damping at 200 MHz (100m & 20° C) dB11,2
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB3,4138
Damping at 470 MHz (100m & 20° C) dB17,3
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB5,273
Damping at 862 MHz (100m & 20° C) dB25,5
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB7,7724
Damping at 1000 MHz (100m & 20° C) dB27,7
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB8,443
Impedance O75
BPVo-EuroclassFca
