Her er du nå: Lyd, lys & scene   >   Kabel   >   Kabel i bulk   >   Videokabel   >   SOMMER Classic Series MKII Videokabel
SOMMER Classic Series MKII Videokabel 1 x 0,42, PVC Ø 2,80 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,42, PVC Ø 2,80 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,42, PVC Ø 2,80 mm, sort SOMMER Classic Series MKII Videokabel 1 x 0,42, PVC Ø 2,80 mm, sort

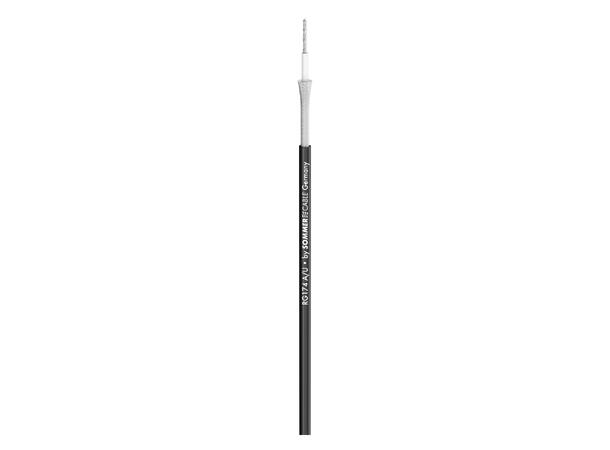

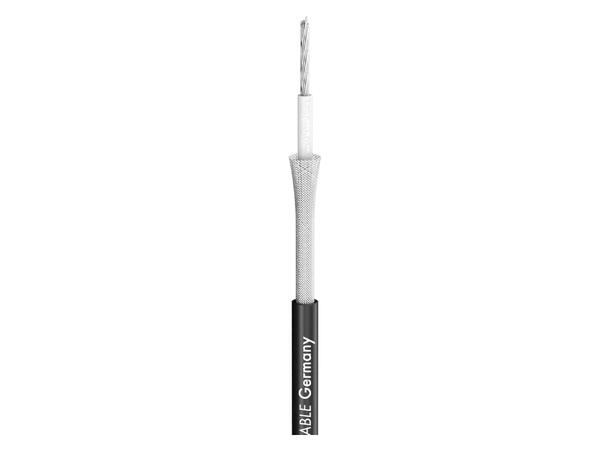

SOMMER Classic Series MKII Videokabel

1 x 0,42, PVC Ø 2,80 mm, sort

Varenr: 141746
Alt. varenr: 600-0501
20,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
1 x 0,25mm
1 x 0,25mm
1 x 0,42mm
1 x 0,42mm
1 x 0,45mm
1 x 0,45mm
1 x 0,60mm
1 x 0,60mm
1 x 0,72mm
1 x 0,72mm
1 x 0,78mm
1 x 0,78mm
1 x 1,02mm
1 x 1,02mm
1 x 1,06mm
1 x 1,06mm
1 x 1,85mm
1 x 1,85mm
1 x 1,98mm
1 x 1,98mm

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
100m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Dance at all parties...

this cable can do it. Just look at the many applications! And our RG cables are famous for their aging resistance and durability. RG (radio guide) cables have either one or two cross mesh screens, designed according to the American MIL-C-17 standard. This standard originally developed for the army, guarantees excellent and consistent manufacturing quality and durability. RG cables have been created for a vast number of applications in high frequency technology, electronics, and data transmission.


Advantages:

  • Extremely long life due to age-resistant jacket
  • Consistent and precise electrical values
  • Easy handling
  • Suitable for all standardised connectors

Application:

  • Data transmission
  • HF technology
  • Antenna construction
  • For fixed installations
  • Hifi connections
  • Computer technology


Specifications:

Article number600-0501
NameSC-Classic Series MKII
EAN4049371005784
PropertiesOFC oxygen free copper
PropertiesAnalog
Application areaELA 100 V
Application areaInstallation
Application areaStudio / Broadcast
ApplicationRG/U Coax
Colourblack
Colour detailedblack
Construction02YSCY
Jacket materialPVC
Jacket Ø mm2,80
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,14
Inner conductor Ø (video) mm0,42
AWG (video)26
ShieldingCopper braiding tin-plated
Shielding factor %92
Copper strands (video)7
Copper strand Ø (video) mm0,16
Conductor insulation materialPE
Conductor insulation Ø mm1,50
Weight per 1 m g11
UV-resistantyes
Fire load per m kWh0,11
Style variantround
Packing100 m ring
Velocity factor0,66
Temperature min. °C-25
Temperature max. °C70
RG-TypeRG174A/U
Width mm5
Height mm5
Capacity wire/electic screen at 1m (video) pF101
Capacity wire/electic screen at 1 ft. (video) pF30,7848

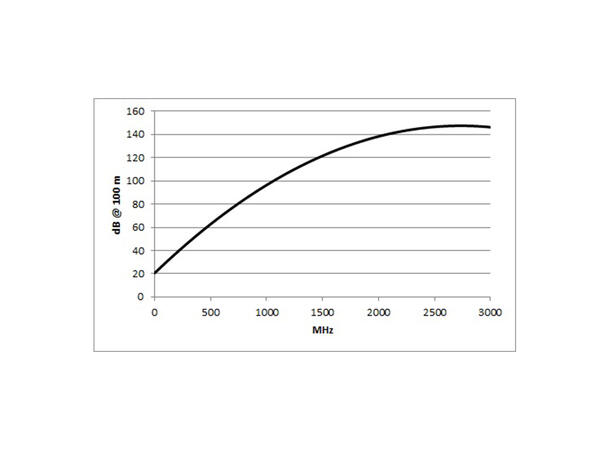

Damping at 100 MHz (100m & 20° C) dB27,4
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB8,3515
Damping at 200 MHz (100m & 20° C) dB40,7
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB12,4054
Damping at 470 MHz (100m & 20° C) dB60,5
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB18,4404
Damping at 862 MHz (100m & 20° C) dB87,8
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB26,7614
Impedance O50
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
