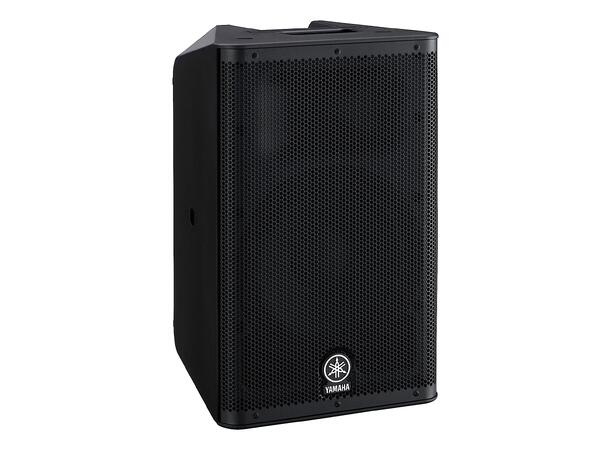

Portable, yet capable of producing an astonishing 131 dB SPL, the DXR10’s compact,

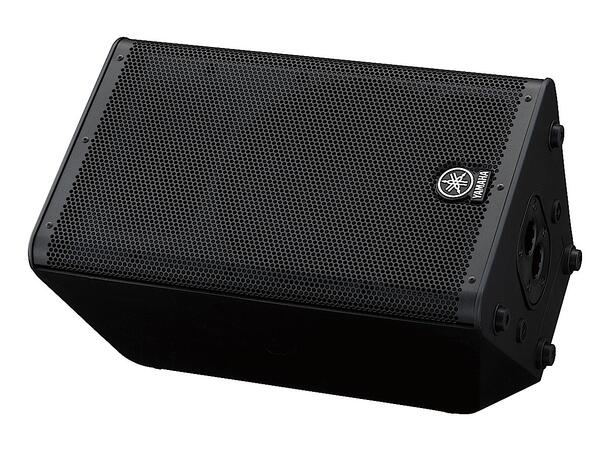

functional design makes it ideal for a wide range of applications. Whether providing simple
vocal/instrument amplification, very powerful floor monitoring or comprising a compact SR system—the DXR10 delivers without compromising sound quality and power.
Specifications
General specifications
Speaker type 10" 2-way, Bi-amp powered speaker, Bass-reflex type
Frequency range (-10dB) 56Hz - 20kHz
Nominal coverage H 90°V 60°
Components LF Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
HF Diaphragm:1.4", Type: 1" throat compression driver,
Magnet:Ferrite
Output power Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W
(LF: 600W HF: 100W)
Maximum output level (1m; on axis) 131dB SPL
Processors D-CONTOUR: FOH/MAIN, MONITOR, OFF
I/O connectors INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA
PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK
OUT: XLR x 1
Power requirements 100V - 240V, 50Hz/60Hz
Dimensions W 305mm (12")
H 502mm (19 6/8")
D 310mm (12 2/8")
Net weight 14.6kg (32.2lbs)
Flying and mounting hardware Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket 35mm with 2-way features (0 or 7 degrees)

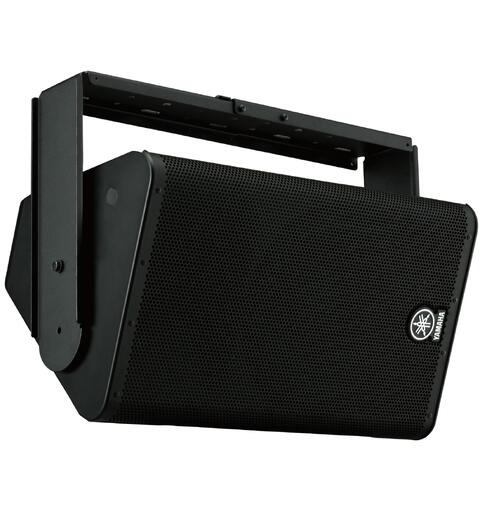

Accessories UB-DXR10 (U-bracket)
Power consumption 90W
Others Material: ABS (Matte Finish, Black)
Crossover FIR-X tuning™ (linear phase FIR filter)
