AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.
Features:

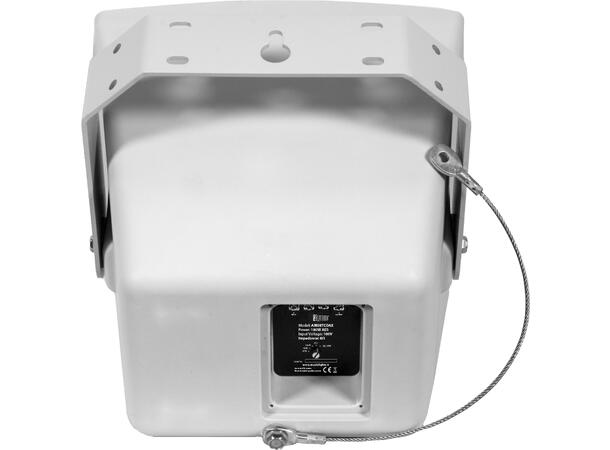

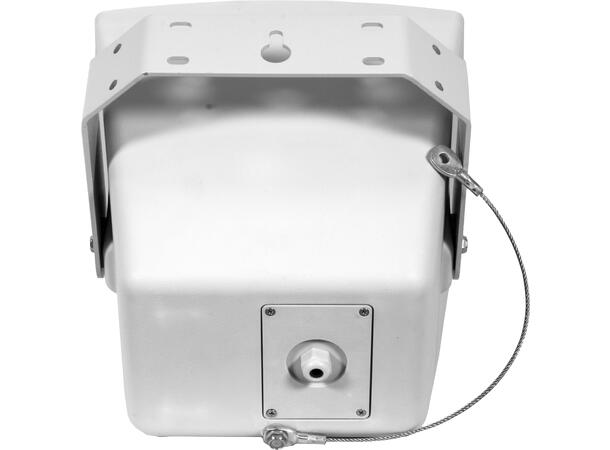

Vertically or horizontally mounted with the brackets /supplied supports
Tested to withstand snow, rain and salt
Suitable for use on the boat

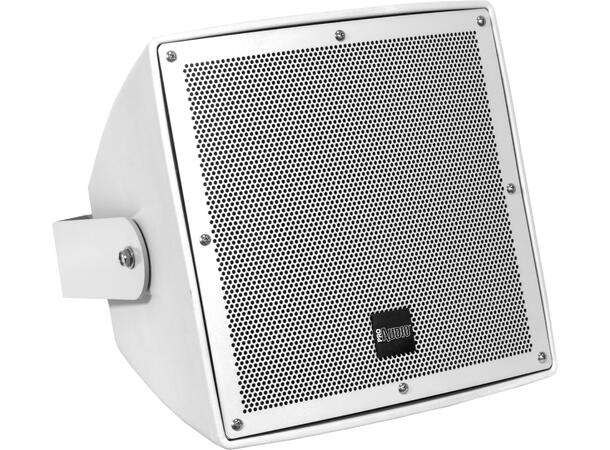

The AIR08TCOAX 2-way full-range loudspeaker with IP56 waterproof protection is ideal for long distances in professional installations both indoors and outdoors.
The coaxial transducer allows uniform coverage and high intelligibility.
Equipped with a transformer for use in 100V systems.
The polypropylene cabinet guarantees complete protection against ultraviolet rays.

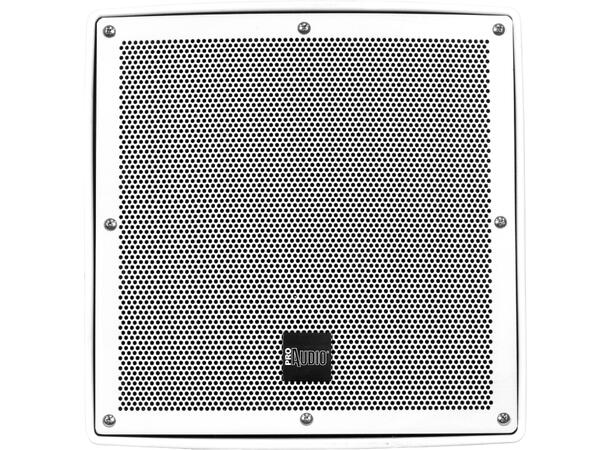

The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
PHYSICAL
IP rating: IP56 for outdoor events
Dimensions (WxHxD): 300x302x334mm
Weight: 10kg
LOUDSPEAKERS
System type: passive 2 way coaxial design
COMPONENTS
Low frequency: 8'' woofer/2''v.c.
High frequency: 1'' driver/1.4''v.c.
ACOUSTICAL SPECIFICATIONS
Sensitivity: 96dB @1W/1m (free field)
Impedance: 8
SPL cont/peak: 117/123dB @1m (free field)
Frequency response: 80-18000Hz (±3dB)
Coverage angle HxV: 100x100°
Cross over frequency: 2500Hz
Protection: H.F. signal compression
Suggest HPF range: 120/160Hz
Recommended amplifier up to: 360W
INPUT/OUTPUT CONNECTORS
Input signal: screw terminal IN/OUT
CABINET CONSTRUCTION
Cabinet material: polypropilene
Sospension system: wall brackets (included)
FEATURES
AES/program power: 180/360W
Input 100 V: 45/90/180W
SPL max: 123dB @1m (free field)
