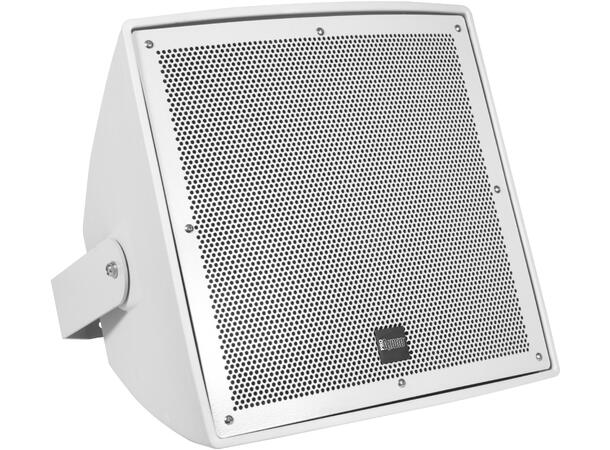

PROAUDIO AIR12HTCOAX Passiv høyttaler

AIR series outdoor loudspeakers present superior performance and durability with full sound over a large listening area. Thanks to their elegant style and sturdy structure, they are the ideal speakers for listening to music in the pool, on the veranda or even in the boat. The adjustable mounting brackets supplied, allow to set up them vertically or horizontally, so as to integrate them perfectly into the surrounding environment. The IP46 / IP56 structure (depending on the model) is designed to withstand the rigours of the climate all year round due to the outdoor installation.

Features:
The AIR12HTCOAX 2-way full-range loudspeaker with IP56 waterproof protection is ideal for long distances in professional installations both indoors and outdoors.

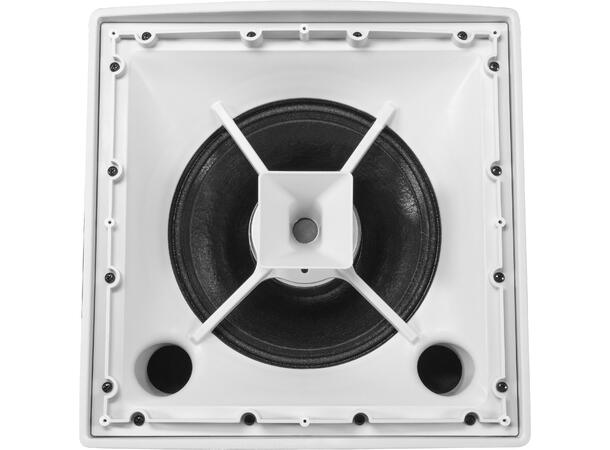

This version mounts in front of the woofer, an HF driver equipped with a HxV 80 ° x60 ° dispersion horn. This improves the characteristics of range coverage and intelligibility.
Equipped with a transformer for use in 100V systems.
The polypropylene cabinet guarantees complete protection against ultraviolet rays.

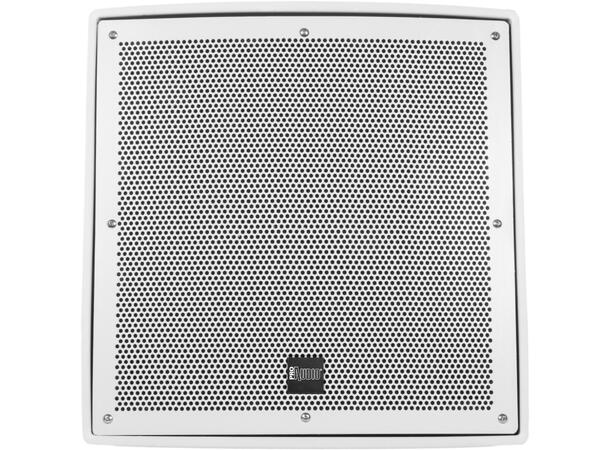

The grid is in perforated aluminium, internally covered in waterproof fabric and open cell expanded polyurethane.
Tested to withstand snow, rain and salt.
Suitable for use on the boat.

LOUDSPEAKER
System type: passive 2 way coaxial design

COMPONENTS
Low frequency: 12'' woofer/3''v.c.
High frequency: 1'' driver/1.7''v.c.

FEATURES
AES/program power: 300/600W
Input 100 V: 75/150/300W
SPL max: 128dB @1m (free field)

ACOUSTICAL SPECIFICATIONS
Sensitivity: 98dB @1W/1m (free field)
Impedance: 8 Ohm
SPL cont/peak: 122/128dB @1m (free field)
Frequency response: 55-18000Hz (±3dB)
Coverage angle HxV: 80x60°
Cross over frequency: 2200Hz
Protection: H.F. signal compression
Suggest HPF range: 120/160Hz
Recommended amplifier up to: 600W

INPUT/OUTPUT CONNECTORS
Input signal: screw terminal IN/OUT

CABINET CONSTRUCTION
Cabinet material: polypropilene

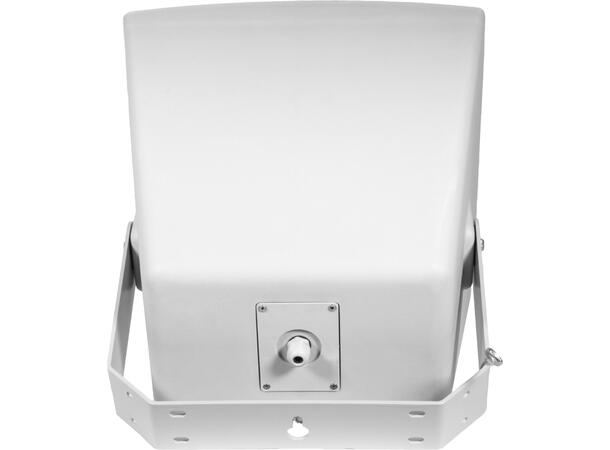

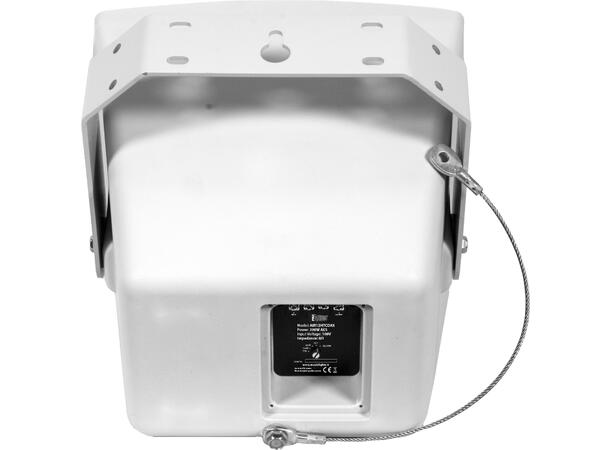

Sospension system: wall brackets (included)

PHYSICAL
IP rating: 56 for outdoor installations
Dimensions (WxHxD): 407x410x443mm
Weight: 20kg
