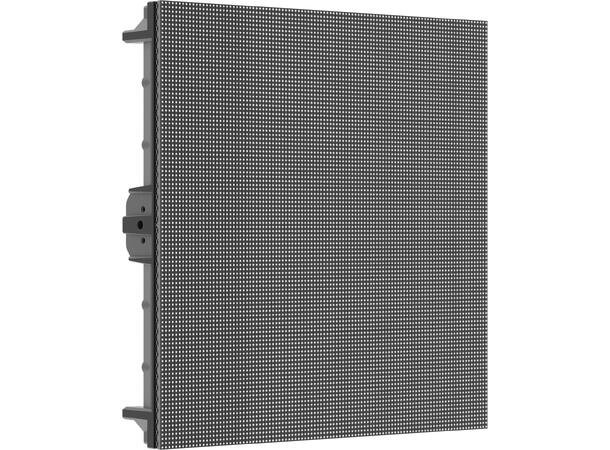

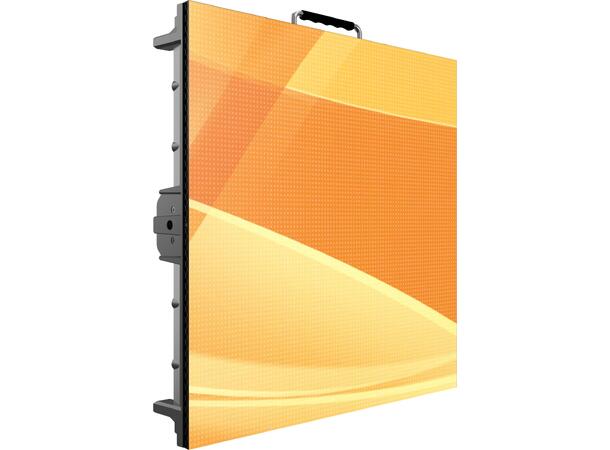

DeltaPix 48T is a rental LED screen for outdoor use with a 4,8 mm pixel pitch, designed to meet requirements for demanding touring and other semi-permanent outdoor applications.

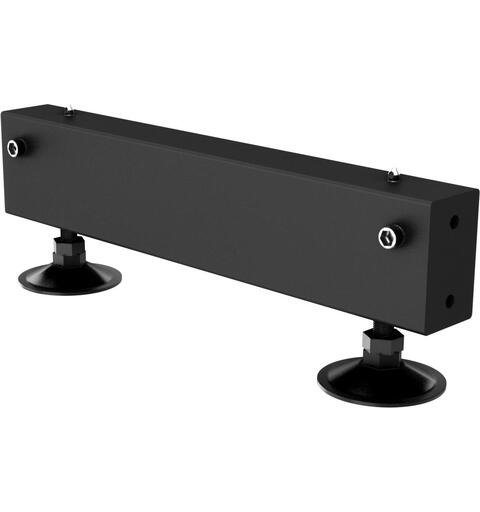

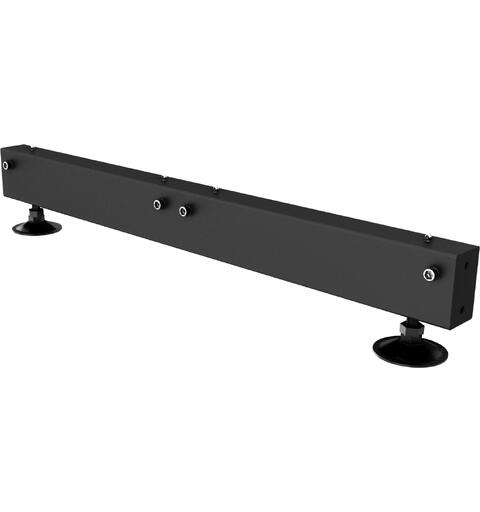

The DeltaPix 48T panels can be curved up to 10° concave, and support automatic power backup in case of any PSU failures. The DeltaPix 48T can also befloor mounted, by placing panels on their dedicated floor base and applying a selection of black or transparent floor cover.
The on-board electronics include the latest generation of Novastar A5s receiver card and refresh rate up to 3.840 Hz.
Features:
Floor function and curvable up to 10° concave

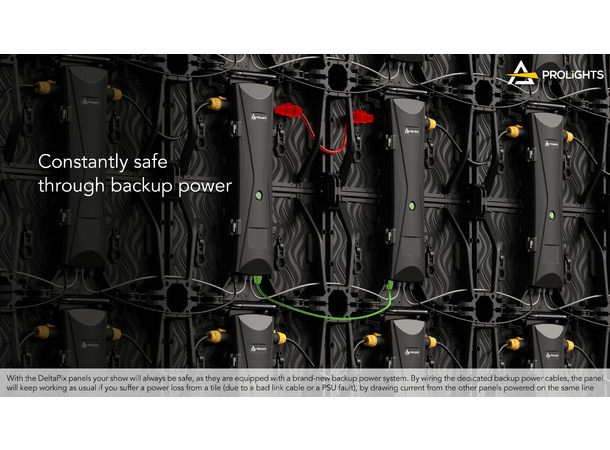

Automatic power backup
Refresh rate of 3.840 Hz
VIDEO
Driver chip type: ICN 2053
LED source: Nationstar SMD1921 black frame
Pixel pitch: 4,8mm
Panel resolution: 104x104pixels
Module resolution: 52x52pixels
Luminous flux: 3.500nit
Contrast: 3.000:1
Grayscale: 14 bit
Refresh rate =: 3.840Hz
Drive Mode: 1/13 scan, constant current
Vertical viewing angle: 140°
Horizontal viewing angle: 120°
LED density: 43.276LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000
ELECTRICAL
Power input/output: Seetronic powerCON IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 200W
Avg power consumption (panel): 67W
Max power consumption (sqm): 800W
Avg power consumption (sqm): 268W
Standby power consumption (pannello): 16W
Max rated current/panel:: AC 220 V / 0.55 A
Working temperature: -20°C / +50°C
Working humidity: 10~90 RH%
CONTROL
Receiving card type: A5S
Other controllers type: power backup connectors, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: RJ45
Signal output: RJ45
MECHANICS
Other specifics: curve configurations
Module size (WxH): 250x250mm
Panel size(WxHxD): 500×500×74mm

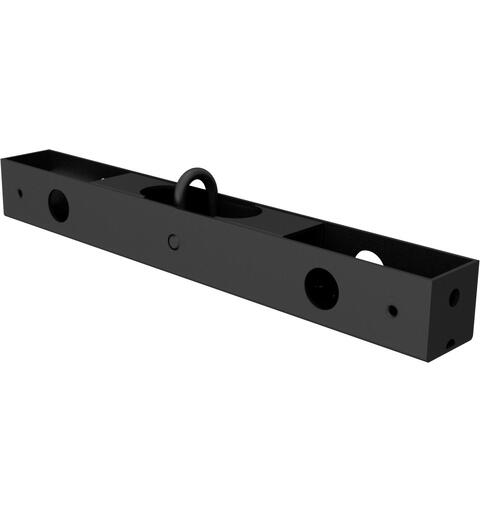

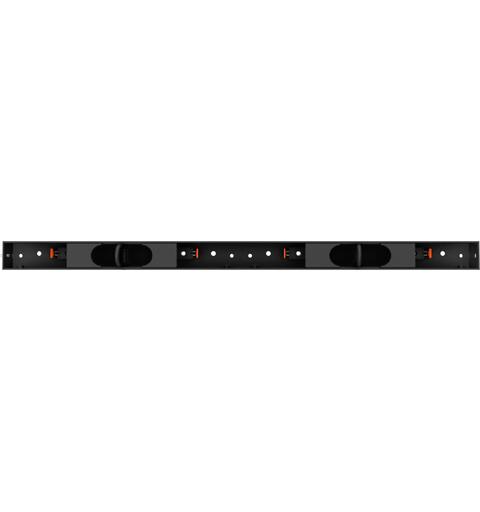

Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans

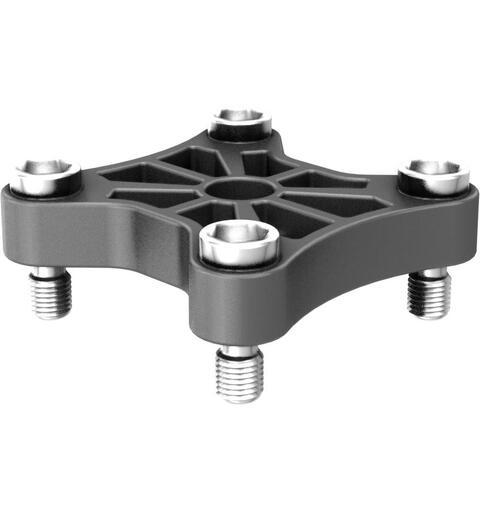

Connection: seamless locking system
Curvability: concave 0° / +10°
Body: die-cast aluminium housing
Color: black
IP rating: IP65/IP54 (front and rear)
Panel weight: 7kg
Weight per square meter: 28kg
Hanging Panel Quantity =: 20 for hanging - = 30 for grounding
Compliant Standard: CE, EMC, UL
