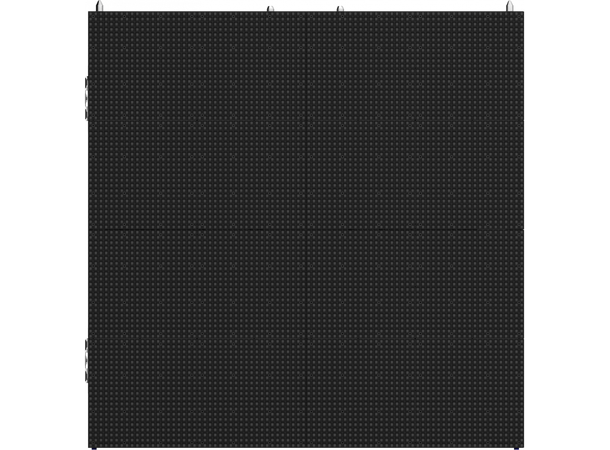

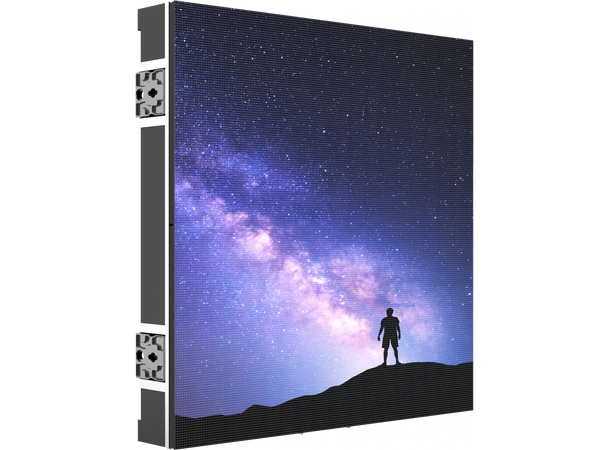

OmegaPix 39T is a revolutionary outdoor 3,9 mm LED screen rental panel. Specially designed to offer advanced mechanical features, more creative configurations and enhanced video image quality.
Mechanical / assembly features:
Curve configurations both concave and convex through curving mounting plates (0-10 concave, 0-5 convex)

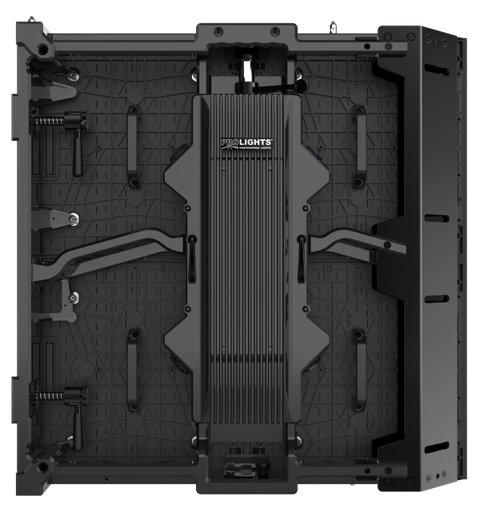

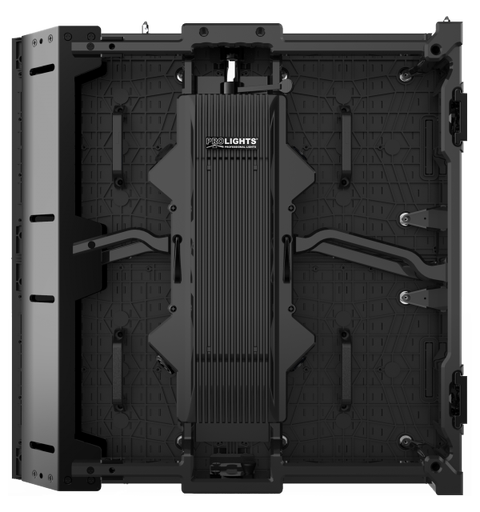

Seamless 90° corners through special 45° cutter cabinets (Left & Right version available)
Climbable, designed for a quick maintenance access

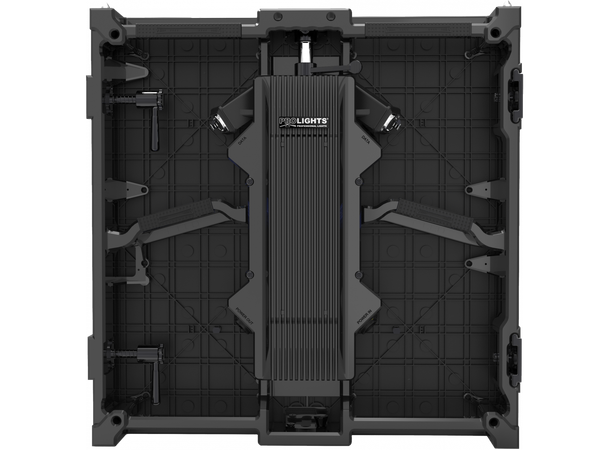

Hot swapping of the back panel to replace PSU & electronics
Assisted mounting magnets allowing for a 1 man quick setup
Ground Stacking accessories available
Fly bar for both hanging and ground stacking

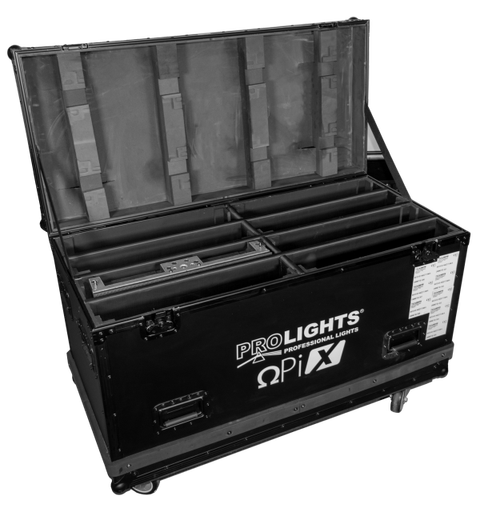

Corner protection for safe transport in case
Velcroed edges to avoid any gaps
Fly bars are suitable for both hanging or ground stacking application
Components/Electronic features:
Premium components
Module with memory to store calibration database
MBI 5151 ICs
Black mask for superior contrast and rentability
18 bit+ greyscale (4x high than market average)
Rotation function enabled
New Novastar A8s receiver
IP powerCon in/out
IP dataCon in/out
CE, EMC, UL approved
Image Quality:
New Novastar A8s receiving card
18 bit+ Greyscale, 4x higher than market average. Effectively improves greyscale performance under low-brightness, showing more exquisite and expressive images.
Clearview technology adjusts the texture, size and contrast of images in different areas to further enhance the image details.
Smart gamma correction: gamma correction is automatically applied according to the display brightness thus achieving a better greyscale performance and providing clearer pictures.
Rotation enabled: rotation of panels recognized by software @ 360°
RCFGX restore, firmware copy, mapping MCTRLR5 sending fully supported
Features:
3,9 mm pixel pitch outdoor rental LED screen
Seamless 90° angles
Curve configurations, concave and convex
Fly bar hanging/stacking
New Novastar A8s with 18bit+, Clearview and image rotation
VIDEO
Driver chip type: MBI 5151
LED source: Nationstar SMD1921 black frame
Pixel pitch: 3,9mm
Panel resolution: 128x128pixels
Module resolution: 64x64pixels
Luminous flux: 5.000nit
Contrast: 3.000:1
Grayscale: 18 bit
Refresh rate =: 3.840Hz
Drive Mode: 1/8 scan, constan current
Vertical viewing angle: 120°
Horizontal viewing angle: 140°
LED density: 65.536LED/sqm
Dead Pixel Ratio: <0,002
LED avg life span: 100.000
ELECTRICAL
Power input/output: IPKON Seetronic IN/OUT
Power supply: AC 110/230 V 50/60 Hz
Max power consumption (panel): 210W
Avg power consumption (panel): 70W
Max power consumption (sqm): 840W
Avg power consumption (sqm): 280W
Standby power consumption (pannello): 16W
Max rated current/panel:: AC 220 V / 0,91 A
Working temperature: -20°C / +50°C
Working humidity: 10~90 RH%
CONTROL
Receiving card type: A8S
Other controllers type: rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
Control protocol: Novastar
Signal input: IP data Seetronic IN
Signal output: IP data Seetronic OUT
MECHANICS
Magnetic LED modules: not available
Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
Module size (WxH): 250x250mm
Panel size(WxHxD): 500×500×90,6mm

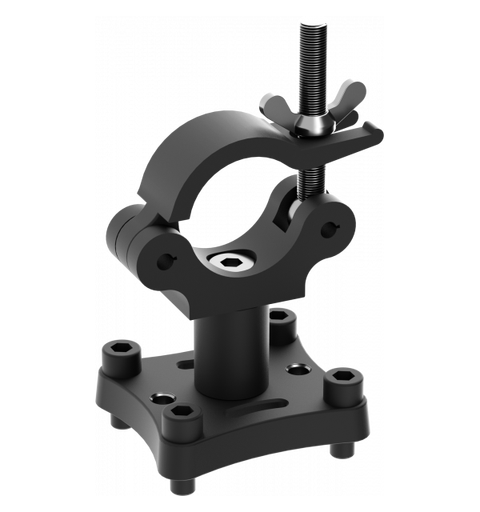

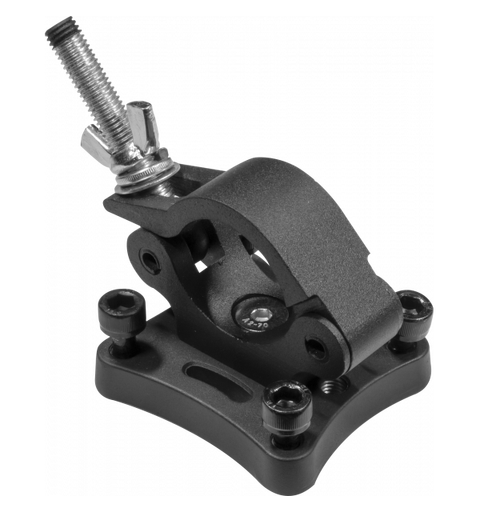

Vertical hanging system: built-in aliscaf clamp support
Cooling: natural cooling of the peculiar chassis and to absence of fans
Connection: seamless locking system
Curvability: concave 2°, 5°, 10° - convex 2°, 5°
Body: die-cast aluminium housing
Color: black
IP rating: IP65 (front and rear)
Panel weight: 9kg
Weight per square meter: 36kg
Hanging Panel Quantity =: 20
Compliant Standard: CE, EMC, UL
