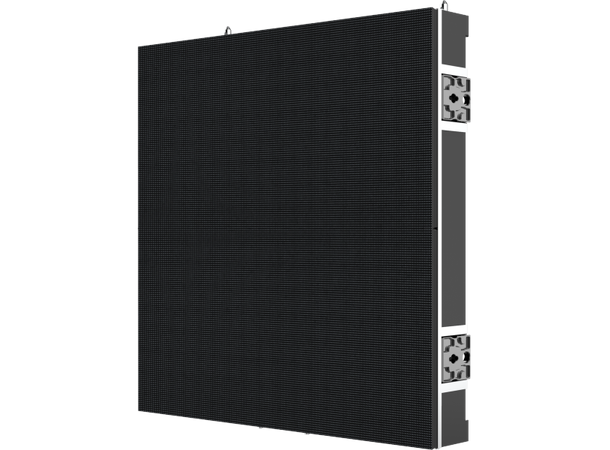

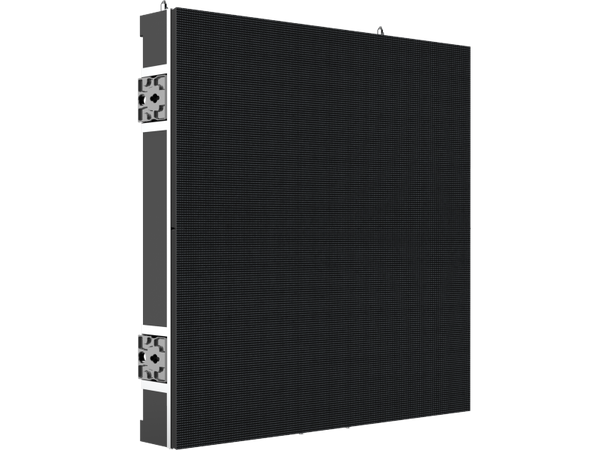

Features:Seamless 90° corners through special 45° cutter cabinets.
Curve configurations both concave and convex through curving mounting plates:
\u2022 0-10° Concave (10°, 5°, 2°)
\u2022 0-5° Convex (5°, 2°)
MECHANICS
- Magnetic LED modules: not available
- Other specifics: curve configurations, climbable, rear panel swapping, corner protection for transport, velcro strips for gapless mounting
- Module size (WxH): 250x250mm
- Panel size(WxHxD): 500m\u00d7500mm\u00d790.6mm
- Vertical hanging system: built-in aliscaf clamp support
- Cooling: Natural cooling of the peculiar chassis and to absence of fans
- Connection: Seamless locking system
- Curvability: concave 2°, 5°, 10° convex - 2°, 5°
- Body: Die-cast aluminium housing
- Color: Black
- Internal protection: IP65 (front and rear)
- Panel weight: 9kg
- Weight per square meter: 36kg
- Hanging Panel Quantity \u2264: 20
- Compliant\u00a0Standard: CE, EMC, UL
VIDEO
- Driver chip type: MBI 5151
- LED source: NationStar SMD1921 BlackFrame
- Pixel pitch: 3.9mm
- Panel resolution: 128x128pixels
- Module resolution: 64x64pixels
- Luminous flux: 5000nit
- Grayscale: 18 bit
- Refresh rate \u2265: 2880Hz
- Drive Mode: 1/8 scan, constan current
- Vertical viewing angle: 120°
- Horizontal viewing angle: 120°
- LED density: 65536LED/sqm
- Dead Pixel Ratio: <0.002
- LED avg life span: 100'000
CONTROL
- Receiving card type: A8S
- Other controllers type: Rotation, 18bit+, clearview, mapping, firmware copy, RCFGX restore, calibration restore
- Control protocol: Novastar
- Signal input: Waterproof Seetronic RJ45
- Signal output: Waterproof Seetronic RJ45
ELECTRICAL
- Power input/output: Seetronic True PowerCON
- Power supply: AC 110/230V 50/60Hz
- Max power consumption (panel): 210W
- Avg power consumption (panel): 60W
- Max power consumption (sqm): 840W
- Avg power consumption (sqm): 240W
- Standby power consumption (pannello): 16W
- Max rated current/panel:: AC220V/0.91A
- Max power output: 200Wmodules
- Working temperature: -20°C/+50°C
- Working humidity: 10~90 RH%
