Titan LED Engine, 15W, CRMX + Wired DMX

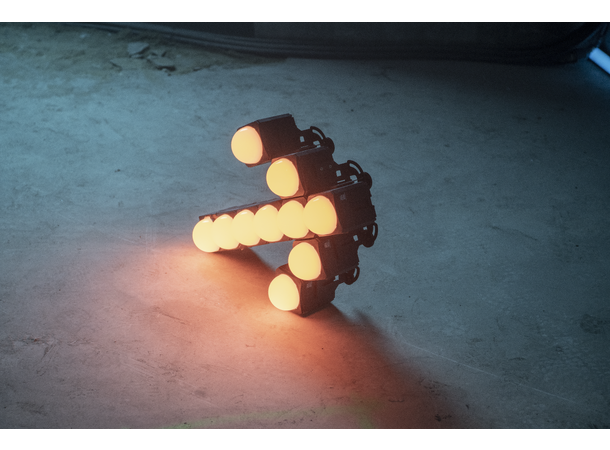

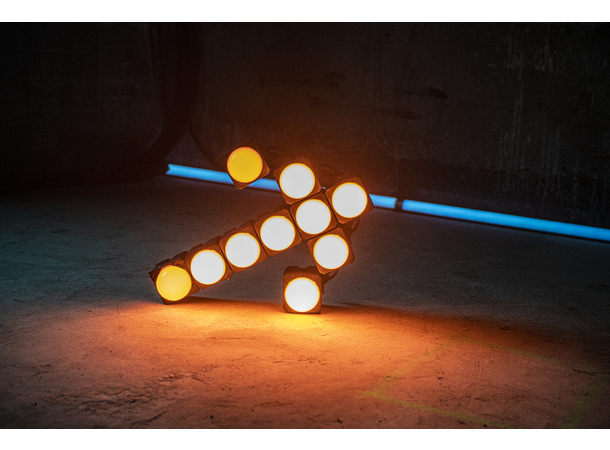

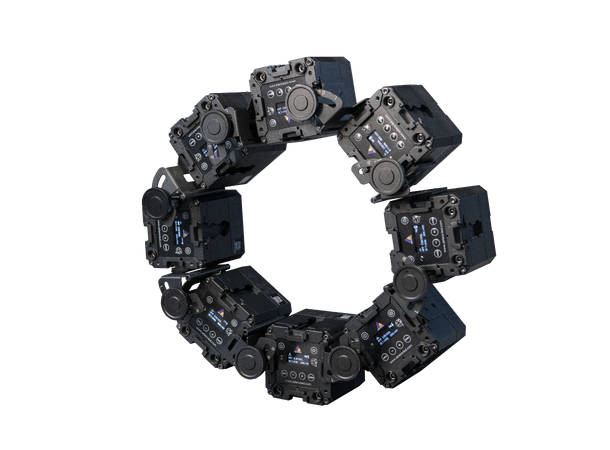

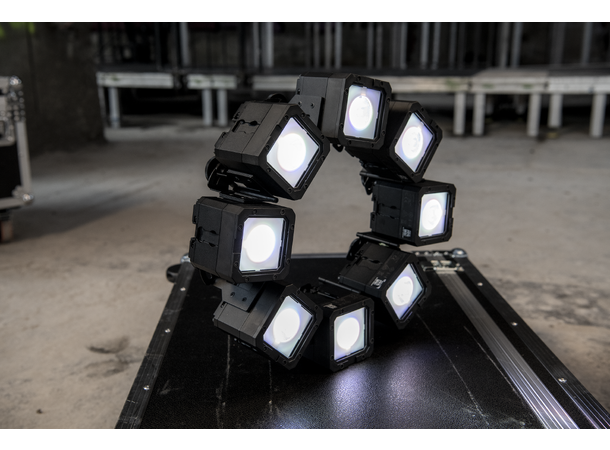

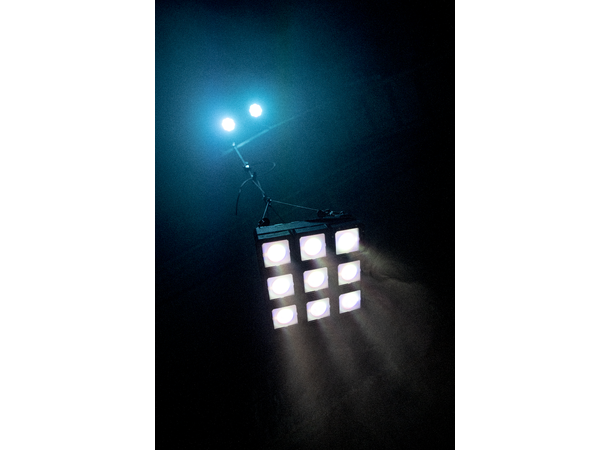

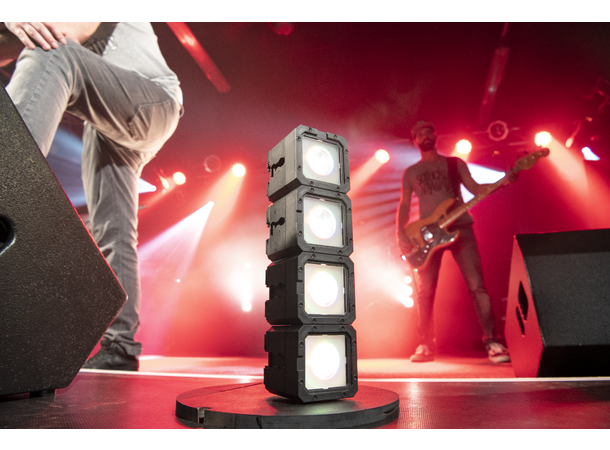

Say hello to our next-generation multi-purpose light. In addition to being a battery-powered uplight and spotlight with 5 different beam options, multiple PixelBricks can be connected to form clusters and shapes. With about 10cm edge length and 1kg weight, it is small and lightweight while still featuring a powerful output of high-quality light which meets the highest demands of film, TV and stage clients.
Optical
Order Code: PB15
LED Engine: Titan LED Engine
Colors: RGB Mint Amber
Total LED Power: 15W
Power Draw: 12W
Light output: 2700K, 3200K, 5500K:* 388lm, 450lm, 375lm
CRI(Ra)/TLCI 3200-6500K*: =96
Beam Angle: 13°
Strobe: 0 – 25Hz
Pixels: 1
*Typical value
Electrical
Battery Lifetime: 70 % after 300 cycles
Battery Runtime: up to 20 hours
Charging Time (nominal): 4 hrs
Input Voltage: 24VDC
Input Current: 0.8A
Control

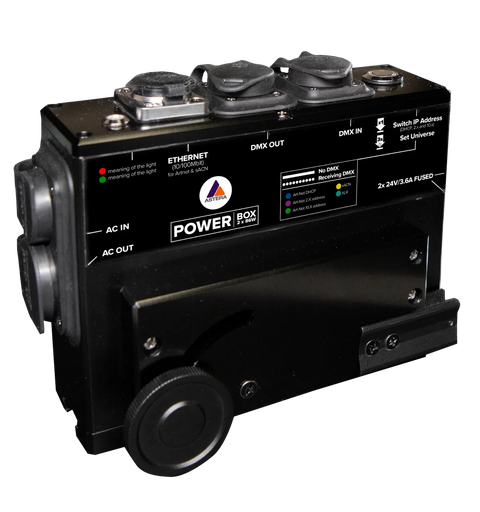

Wired DMX: Yes (via PWB-2-86)
CRMX Receiver: Built-in
Wireless Frequencies: CRMX 2.4GHz, UHF, Bluetooth
Range (m/yds): 300 / 330yds
Construction
Housing: Aluminium
IP Rating: IP65
Ambient Temperature (°C/°F): 0°- 40° / 32°- 104°
Weight (kg/lbs): 1.12 kg / 2.47 lbs
Dimensions (mm/inches): 91 x 91 x 94 / 3.6 x 3.6 x 3.7
