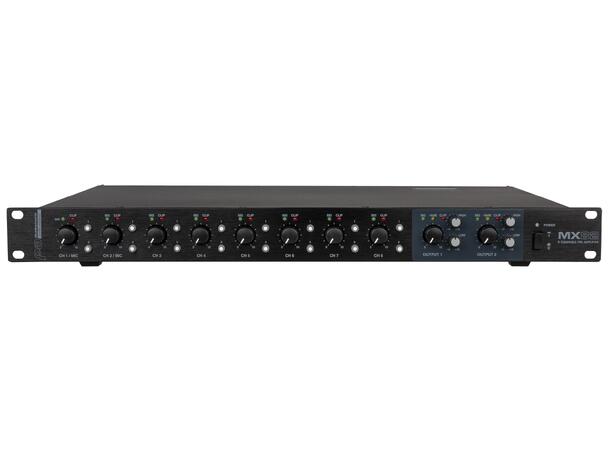

Resolutely focused on professional installations, the MIX82 mixer/preamp offers 2 mono mic/line inputs and 6 stereo inputs. Each input can be independently routed to one of two zones, or both zones simultaneously, to offer a maximum range of options.

8 inputs

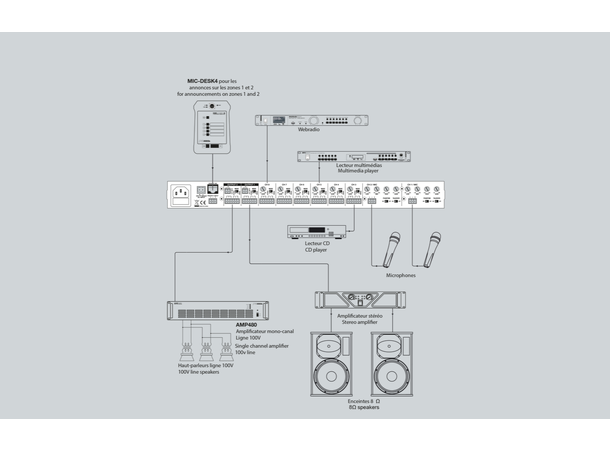

Each input can be routed to the zone(s) of your choice

2 outputs

The MX82 system has 2 outputs equipped with a 2-band equaliser and independent level setting.

FEATURES

• Rated output Level/impedance : 0dB/600 ohms balanced
• Sensitivity/input impedance:
Mic input (CH1-2) – 60dB~ – 16dB/20 ohms balanced
• Line input (CH1-6) – 60dB~ + 4dB/20 ohms balanced
• Frequency reponse (-1dB): 20Hz – 20,000Hz
• THD: < 0.1
• Crosstalk: > 70dB
• Equalisation:
-Mic input: High: 12kHz ± 15dB / Mid: 2.5kHz ± 15dB / Low: 80Hz ± 15dB
-Output: High: 10kHz ± 15dB / Low: 100Hz ± 15dB

• Hum and noise: >90dB
• Power supply: AC 240V
• Weight: 9kg
• Dimensions: 482 x 44 x 320 mm
