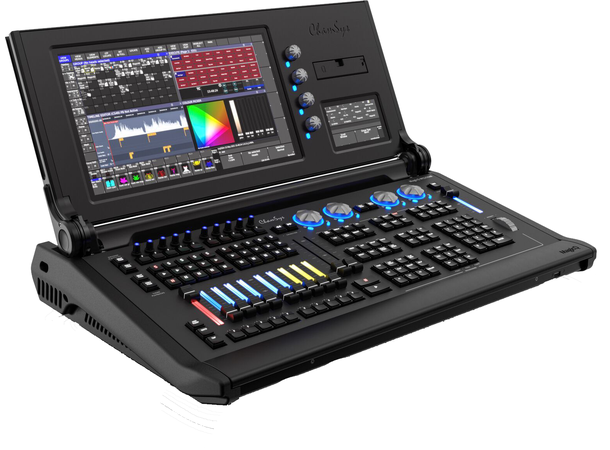

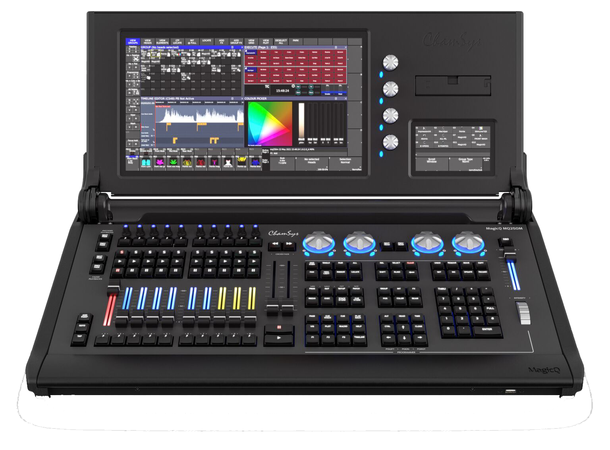

CHAMSYS MagicQ MQ250M Stadium Console

MagicQ MQ250M Stadium combines a high capacity of show control with portability for a complete on-the-go console solution. MQ250M has the ability to control up to 128 universes without any additional processing equipment with the ready-to-go MagicQ software you are already familiar with.

10 backlit and motorised faders and 10 backlit playback encoders with executors give you a lot of programming real estate in the small frame MQ250M is designed in.

Overview

• 64 universes direct from the console, with 128 universe upgrade option
• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• Inbuilt 15" Multi HD touch display
• Dedicated 5" Attribute/Encoder touch display
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets
• Inbuilt Wi-Fi connects to MagicQ Remote control app


Spesifications

• Hardware Specification
• Motorised Playbacks: 10
• Encoder Playbacks: 10
• Attribute Encoders: 8
• Dedicated Intensity Wheel: 1
• Inbuilt Wi-Fi: Yes
• Inbuilt 15” HD Multi-Touch Display: 1
• Attribute Display: 1
• 10Scene/Remote Input port: 1
• RDM Direct DMX ports: 4
• Network ports: 4
• External monitor: 1
• USB ports: 6 (2 High Power for charging)
• Audio input (1 channel, 7 band): Yes
• MIDI In/Out: Yes
• LTC In/Out: Yes
• Inbuilt UPS

Software spesifications

• Universes: 64 (Upgradeable to 128)
• Channels: 32,768 (Upgradeable to 65,536)
• Number of fixtures: upto 32,768 (Upgradeable to 65,536)
• Cues: 5000
• Cue stacks: 2000
• Palettes: 4096
• Groups: 5000
• Numbers of shows: Virtually unlimited
• Media server support: 50 (each different content)
