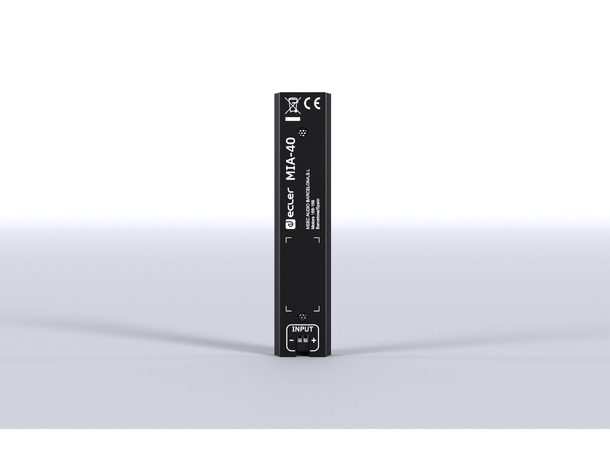

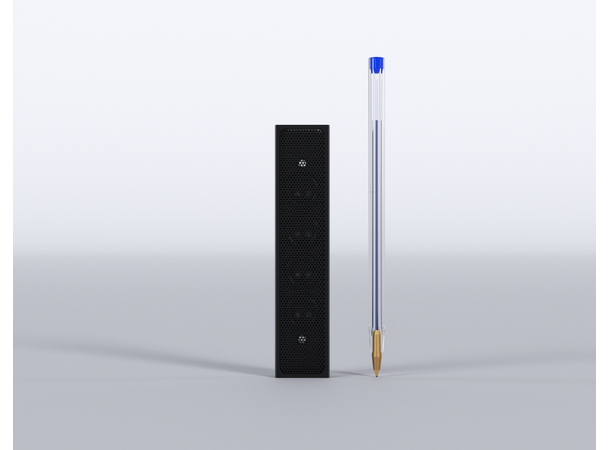

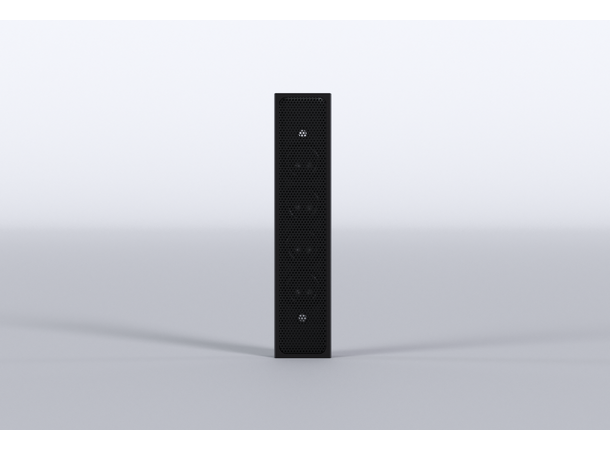

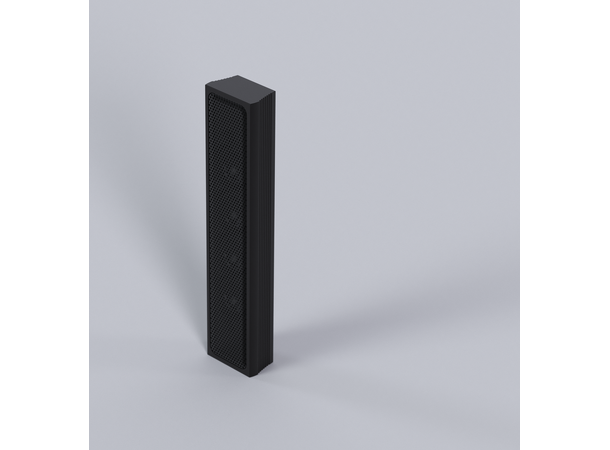

MIA-40
MIA-40 is an ultra-compact installation column loudspeaker for near-invisible sound systems, aluminium construction, IP44 rated, with four 0.5" drivers.
Main features
- Ultra-compact passive loudspeaker for surface mounting
- 4x0.5" drivers
- Extra-wide horizontal coverage 180°
- Controlled vertical beamwidth 40° (4kHz-20kHz)
- Power handling 20W RMS/80W Peak
- 16 ohm/100V line operation
- Non-resonant aluminium enclosure
- IP44 rated, suitable for protected outdoor use
- Mini-Euroblock connector
- Complete mounting kit included (screws, template, cable, level)

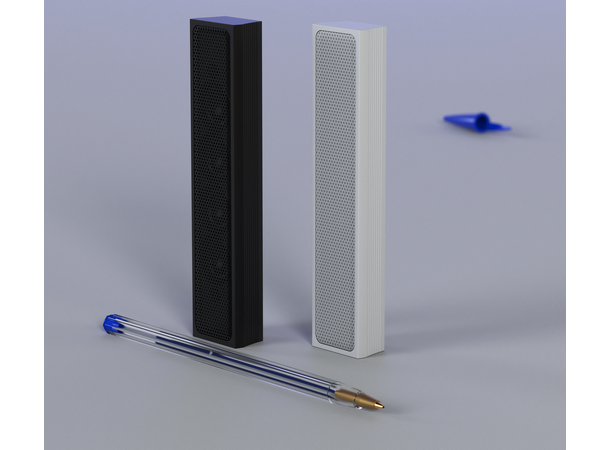

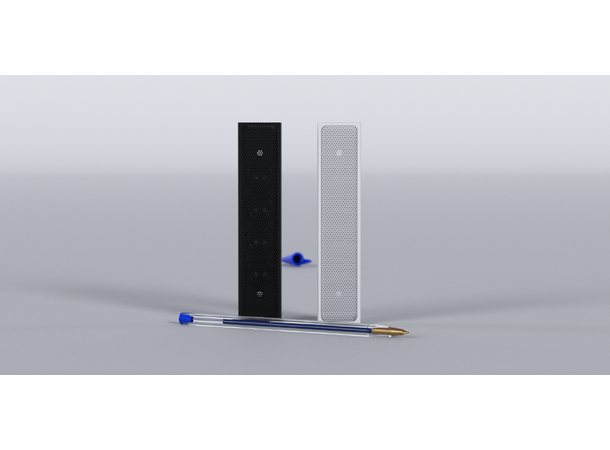

- Available in white (RAL9003) and black (RAL9005)
- Pair with MIA-BR16 for complete sound experience
Technical specifications
- Effective Freq. Range: 725Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 180°H x 140°V
- Power handling: 20W/40W Program/80W Peak
- Sensitivity: 76dB
- Maximum SPL: 89dB continuous/95dB peak
- Ways: 1-way
- Driver: 4x0.5" Loudspeaker
- Nominal impedance: 16 ohm/100V
- Connection type: mini PCB terminal block
- Installation options: Wall mounting
- Environmental: IP44
- Enclosure material: Aluminium
- Grille material: Aluminium
- Grille fixing system: Front insertion mount system
- Mounting system: 2 screws in wall
- Operating temperature: Min -20°C/-4°F, Max 65°C/149°F
- Operating humidity: <90% HR
- Storage temperature: Min -20°C/-4°F, Max 65°C/149°F
- Storage humidity: <90% HR
- Included accessories: 1x Bubble level, 2x MIA-40 wires (5m), 4x Wall plug, 4x Wall screws, 1x Mini Screwdriver, 1x Wall Drilling template
- Finished colour: White (RAL9003) or Black (RAL9005)
- Dimensions: 24.6x113x14.5mm/0.97x4.45x0.57in
- Weight: 0.072kg/0.16lb
- Pieces per box: 2
- Shipping dimensions: 174x40x163mm/6.85x1.57x6.42in
- Shipping weight: 0.239kg/0.53lb
