ZEN-15

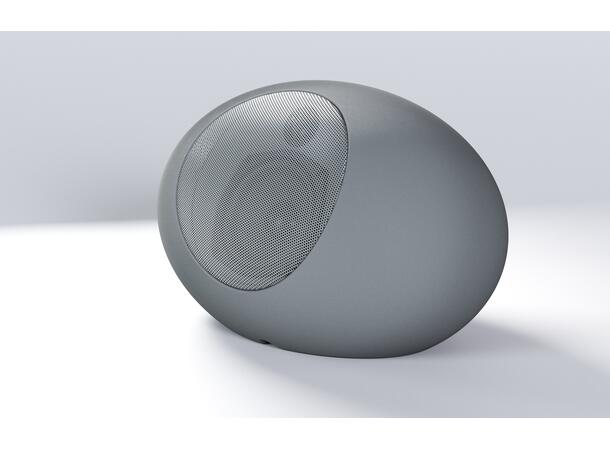

ZEN-15 is an above-ground mounting outdoor loudspeaker with an elegant, rounded, nature-inspired design, 5" 2-way, IP65 rated.
Main features
- 2-way (5,25" + 1" Silk dome) Outdoor Speaker
- 70W RMS @ 8 ohm / 60W RMS @ 70/100V
- Weather-protected IP65 rating
- Available in grey (RAL7042) and sand (RAL1001) colours
- 8 ohms and 70V/100V compatible
- Easy mounting
- Bottom ring to secure ZEN-15 preventing movement/displacement
Technical specifications
- Effective Freq. Range: 70Hz-20kHz (-10dB)
- Coverage angle/Dispersion: 191°x150° (HxV)
- Power handling: 70W RMS / 280W Peak
- Sensitivity: 84dB (1W/1m)
- Maximum SPL: 102dB continuous / 108dB peak
- Power options (Hi Z Multi-tap): 100V 60W/8 ohm; 70V 60W/8 ohm
- Recommended amplifier power: 140W RMS
- Ways: 2-ways full range
- Low frequency driver: 5,25" Woofer
- High frequency driver: 1" Silk Dome Tweeter
- Nominal impedance: 8 ohm
- Crossover filter: 1,65 KHz

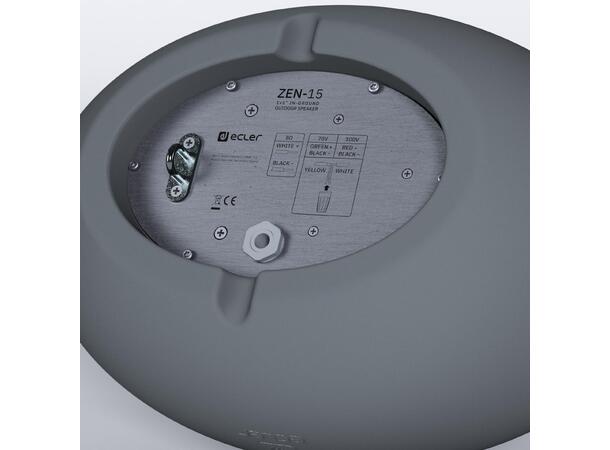

- Connection type: External multi-wire cable with waterproof connection plug included
- Installation options: Above-ground mounting
- Environmental: IP65
- Enclosure material: Polyethylene
- Grille material: Aluminium
- Operating temperature: -20°C to 70°C
- Operating humidity: <85% HR
- Storage temperature: -20°C to 70°C
- Storage humidity: <90% HR
- Included accessories: Waterproof 4-wire connector
- Cable length: 1m
- Finished colour: sand (RAL7042) or grey (RAL1001) [as listed on site; note site text is inconsistent about which RAL is grey vs sand between Features and Specs sections]
- Dimensions: 410 x 260 x 290 mm
- Weight: 4.4Kg
- Pieces per box: 1
- Shipping dimensions: 500 x 350 x 370 mm
- Shipping weight: 6.6Kg
