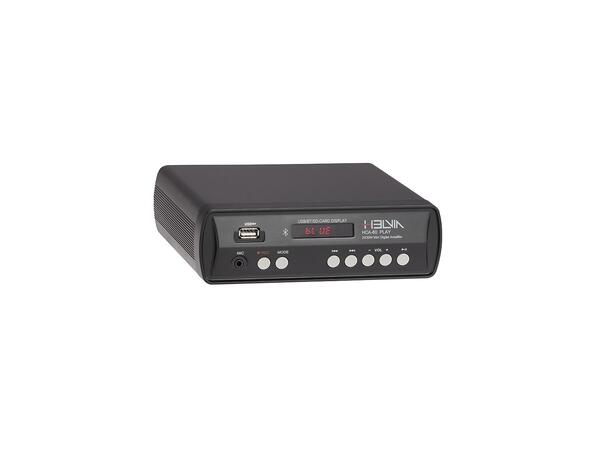

HCA-60 PLAY delivers 2x30W @ 4-16ohm in a very compact design. The Class-D amplification stage ensures high efficiency, low thermal dissipation and maximum reliability.
The USB and BT player with remote control allow audio contents reproduction and makes this amplifier easy to use for any user in installations such as hotels, shops, offices, home, and much more.
Specifications
| LINE input sensitivity |
310mV |
| MIC input sensitivity |
10mV |
| Frequency response |
20-20kHz (±3dB) |
| Noise |
2mV (Output terminal) |
| Distortion |
<1% |
| Rated voltage |
20V DC |
| Rated output power |
2×30W |
| Max power consumption |
90W |
| USB Connection |
Type-B, Female |
| SD-Card |
SD-Card Slot |
| USB / SD-Card Drive Format |
FAT32 format – max 32GByte |
| Player File Formats |
MP3 e streaming audio wireless BT |
| Recorder File Format |
MP3 (44.1kHz/16bit @ 128Kbps) |
| Unit Size (WxDxH) |
180×163×55 mm |
| Package size (WxDxH) |
297×223×108 mm |
| Unit Weight |
0.82Kg (Without power adapter) |
| Gross weight |
1.5Kg |
