NB! STRØMKABEL LEVERES UTEN STØPSEL, SE TILBEHØR FOR ALTERNATIVER

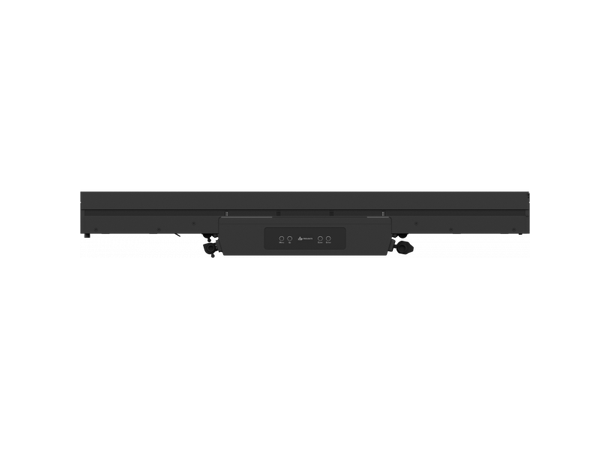

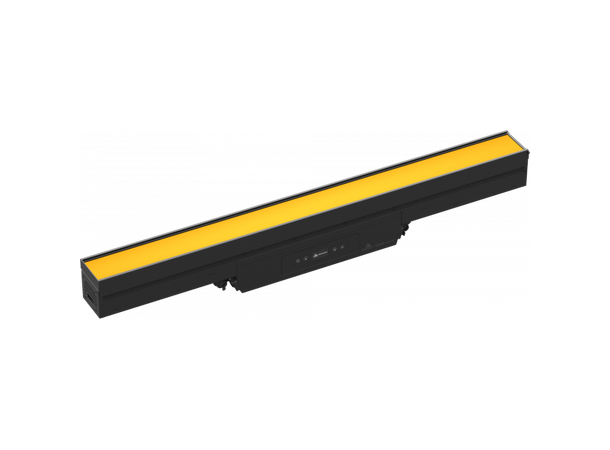

The EclSoft Linear is an IP65 rated linear soft light, with all the main features of the successful EclPanel range, in a new form factor and waterproof design. Each of its 15 pixels can be controlled individually through DMX/RDM, Ethernet protocols, Wireless DMX (CRMX and W-DMX), or the built-in cinema effects engine. The EclSoft Linear has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT linear and CCT presets with +/- green shift, source emulation and industry-standard colour gels. There are several accessories available for the EclSoft Linear, including optical filters and beam shaping accessories. The 230W RGB + Warm White LED engine produces an incredible 12,994 lumens output, whilst keeping perfectly mixed colours and precise white tones, from tungsten to daylight, maintaining a high CRI, TLCI and TM-30 values. The onboard driver, built-in power supply, easy rigging and cabling make this fixture the perfect tool for every film, TV or touring production.
Features:
- 230W RGB + Warm White engine, producing an incredible 12,994 lumens output
- CRI > 92 R9 > 96; TLCI > 87
- 15 individually controlled pixels with built-in cinema effects engine
- DMX/RDM control, Ethernet, and Wireless DMX (CRMX + W-DMX)
LIGHT SOURCE
- Source: 230W RGB + Warm White LED
- Luminous flux: 12'994lm @4.000 K with LD filter
- Lux: 220lx @5 m full
- CRI: 92 @3.200 K; 93 @5.600 K
- R9: 96 @3.200 K; 92 @5.600 K
- TLCI: 87 @5.600 K
- TM30 Rf: 91 @3.200 K; 90 @5.600 K
- TM30 Rg: 107 @3.200 K; 106 @5.600 K
- Source life expectancy: > 50.000 h
OPTICS
- Beam angle: 103°
- Field angle: 155°
- Lens type: high-quality glass lens optics

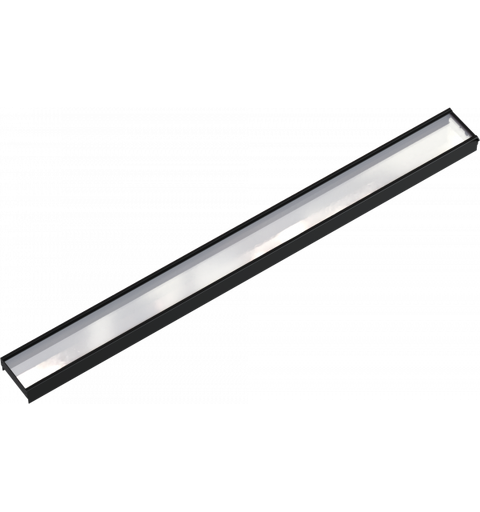

- Additional optics: Mountable Medium Density diffusion filter (included)
COLOUR SYSTEM
- Colour mixing: RGB + Warm White
- CCT: CCT control, + / - green correction, tungsten emulation
- White presets: 2,800 K - 10,000K with 28 K resolution
- Colour wheel: virtual colour wheel with macros
DYNAMIC EFFECTS
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
BODY
- Body: sturdy die-cast aluminium body
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, W-DMX
- Pixel control: 15 section control
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Master/Slave: for synchronised operation of more units linked in a chain
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 36.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 48Vdc
- Max power consumption: 250W
- Output (at 230V): 8 units on a single power line
- Power factor: >0,97
PHYSICAL
- IP rating: 65 for temporary outdoor use (*)

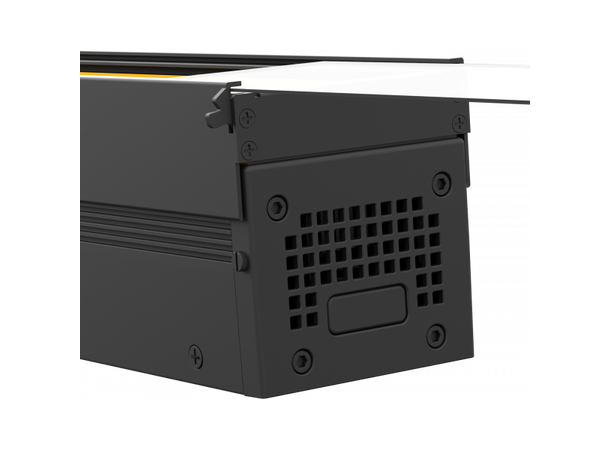

- Cooling: active, silent operation

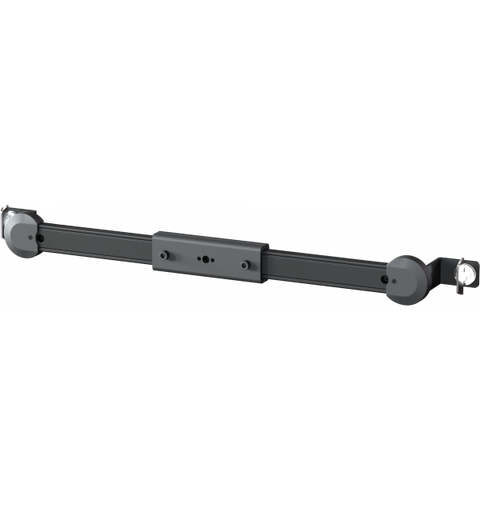

- Suspension and fixing: bracket for hanging and positioning

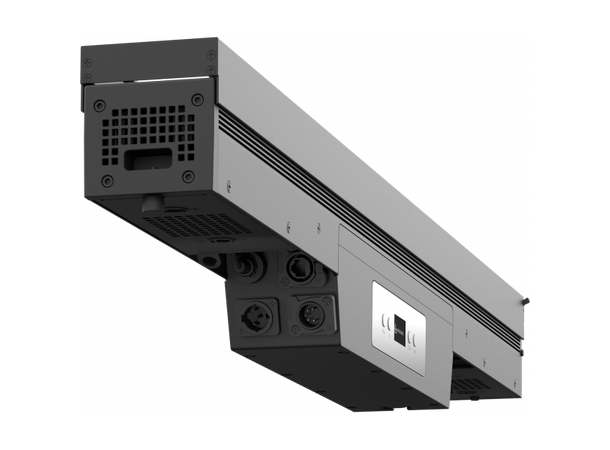

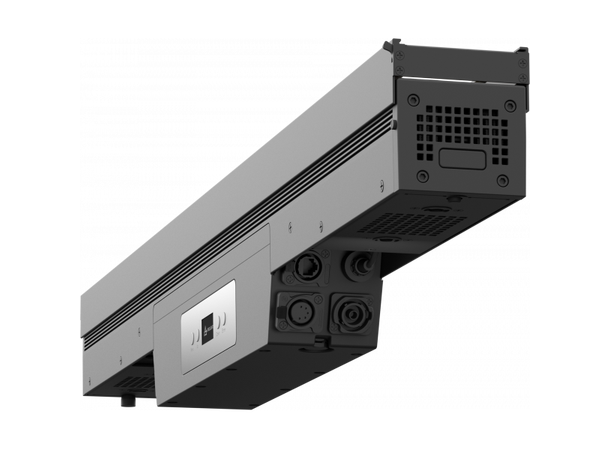

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Seetronic powerCON TRUE IP65 IN/OUT
- Low Voltage DC connector: XLR 3p for 48V

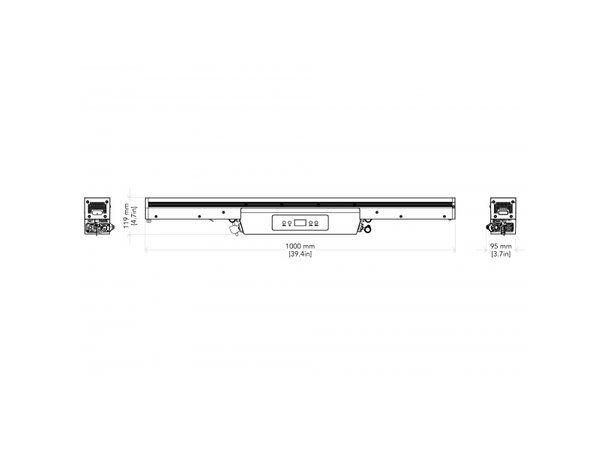

- Dimensions (WxHxD): 1000x143x87mm
- Weight: 7,1kg
(*)
- NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ECLSOFTLINEARIP
- 1 x ESLIPFILTERMD

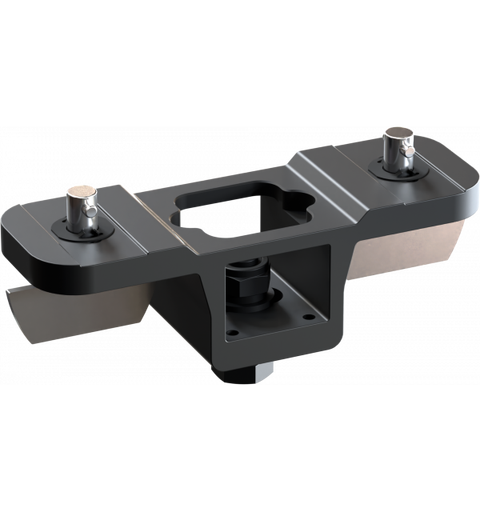

- 2 x OS27
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- User Manual
