NB! Demovare. Første revisjon, Samme funksjoner med oppfører litt anderledes.

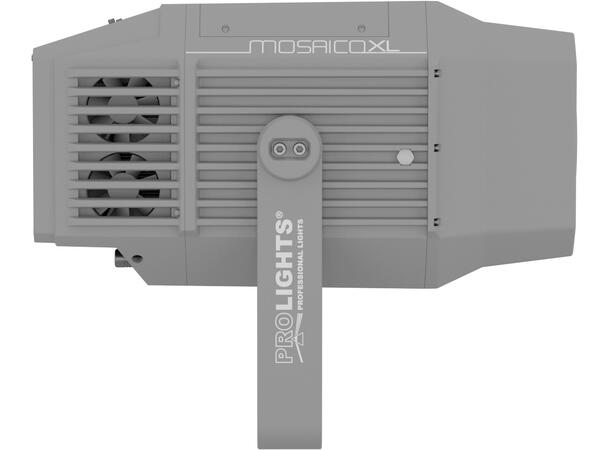

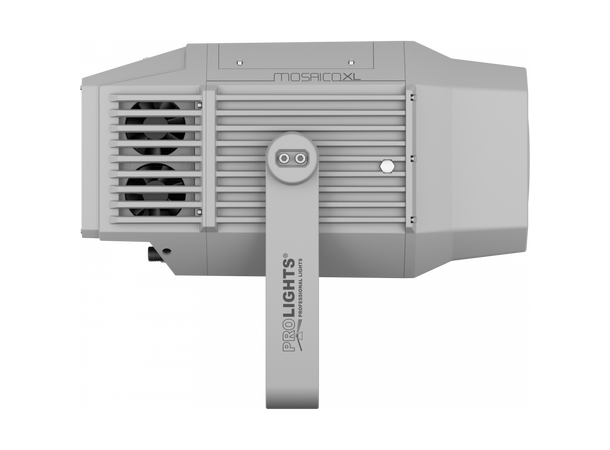

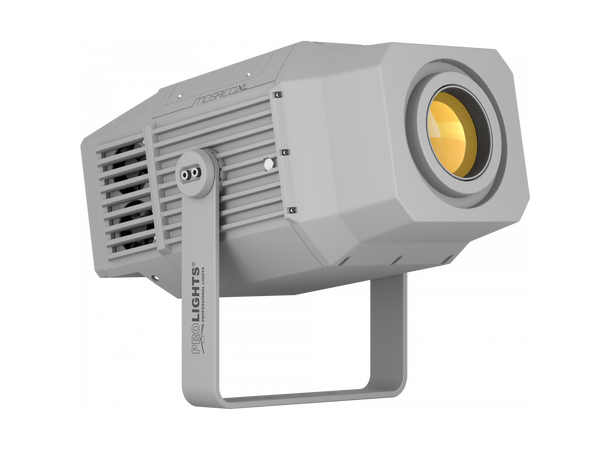

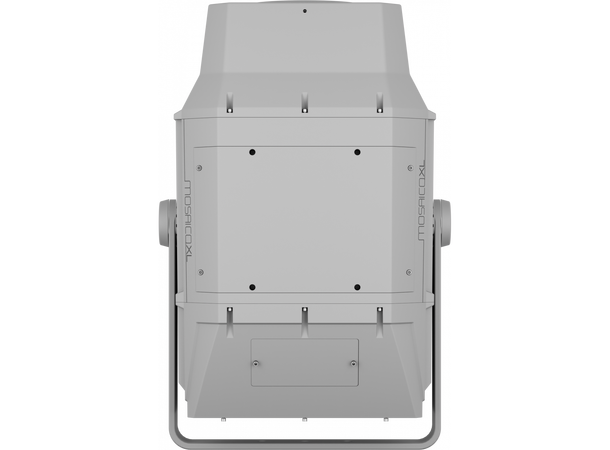

MOSAICOXL is an extremely powerful long-range outdoor LED
fixture for the projection of textures, images and logos onto buildings
and landscapes. Built in a durable IP66 die-cast housing, the
MOSAICO XL offers a phenomenal output of 17.000 lumens and
an extensive set of features including CMY colour mixing system
and profile to precisely shape the projection area. The exceptional
zoom ranges from 5° to 50° allowing this fixture to be installed at
any distance making it versatile in both near-field and long-throw
installations.

FEATURES

• 540W White LED engine with 6000K CT delivering 17.000-lumen
output
• IP66 and equipped with 5-50° linear zoom system to complete
any installation
• Extensive feature set including CMY, shutter frame and animation
wheel

LIGHT SOURCE
• Source: 540W high-power white LED
• CT: 6000K
• Luminous flux: (5°) 8361 lm - (50°) 17042lm
• Lux: (5°) 113888 lux - (50°) 3640lux @3m
• Other: TM-30-15RF/RG: 95/65 - TLCI: (5°) 44.2 - (50°) 42.8

OPTICS
• Zoom: 5° - 50° motorised linear zoom
• Lens diameter: 119mm
• Lens type: high-quality glass lens optics
• Focus: motorised

COLOUR SYSTEM
• Colour mixing: linear CMY
• CTC: linear CTO correction 2700~6000K
• Colour wheel: 6 dichroic filters + open

DYNAMIC EFFECTS
• Shutter system: 4 shutter blades with position and ±30° angle
adjustment, ±45° rotation of the complete framing system
• Animation wheel: animation wheel with CW and CCW rotation
• Rotating gobos: 7 rotating gobos + open, interchangeable,
indexing
• Circular prism: 4f with bi-directional rotation, indexing
• Frost: Dual frost filter system, 1° soft-edge frost gobo, 5° frost
wash, with linear 0-100% frost filter
• Iris: 5~100% motorised linear iris
• Special features: Record scenes and create chases and shows
throughout these scenes

CONTROL
• Protocols: DMX512, RDM, W-DMX
• DMX channels: 28 / 30 / 32channel
• W-DMX: included, wireless solution receiver

ELECTRONICS
• Dimmer: linear 0~100% electronic dimmer
• Dimmer curves: 4 different dimming curves available
• Strobe / shutter: 1 - 30 Hz, electronic

ELECTRICAL
• Power consumption (at 230V): (static) 571W - (dinamic) 587WW
• Output (at 230V): 3 units on a single power line

PHYSICAL
• Adaptors: XLR and Shuko 16A adaptors included

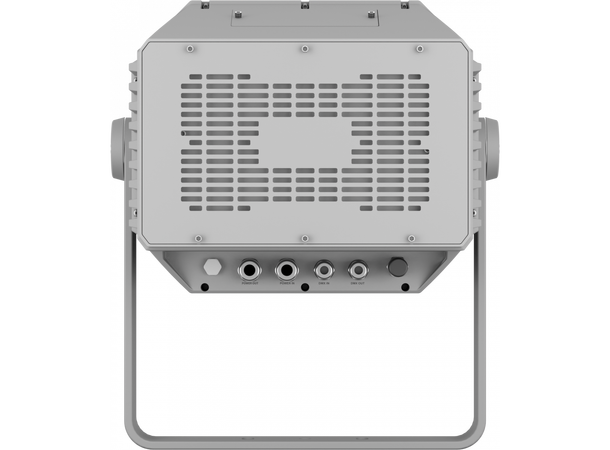

• Signal connection: moulded IP signal IN/OUT connectors
• Data connection: W-DMX receiver
• Power connection: moulded IP power IN/OUT connectors
• IP rating: 66 for outdoor installations

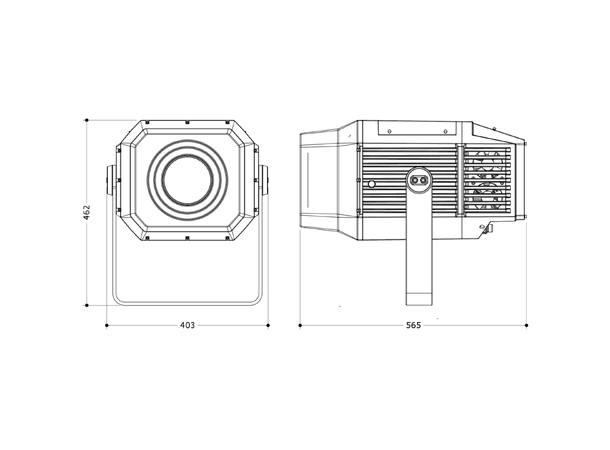

• Dimensions (WxHxD): 609x401x300mm
• Weight: 37kg
