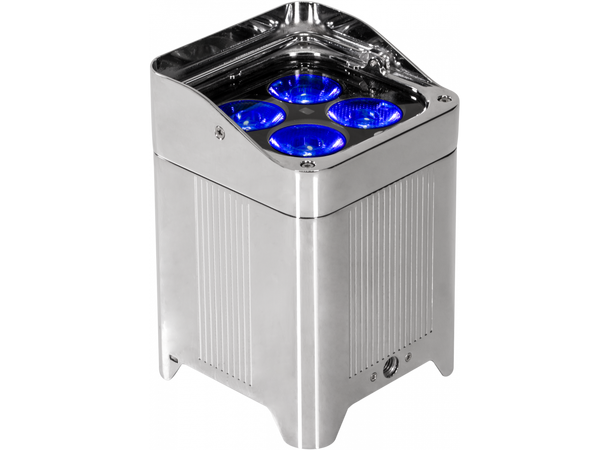

Smart BatPlus is the more advanced member of the successful Smart Bat range offering more advanced features such as W-DMX wireless card, waterproof housing, increased brightness, high-definition optics and fast-charge magnetic connector. It's packed in a super-slim compact housing with a mirror finish, useful when hiding the fixture from view.
Features:

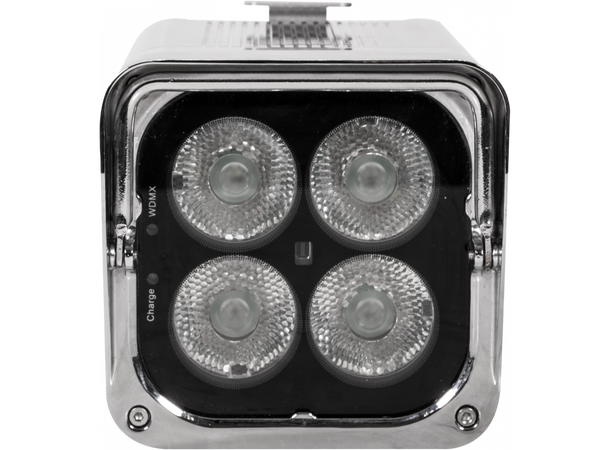

4x12 W RGBW CREE full colour LED with high efficiency collimator lens
Battery powered, IP65 rated and W-DMX wireless DMX control
Chrome finish and charging flight case option
LIGHT SOURCE
Source: 4x12W RGBW LEDs
Luminous flux: 1'162lm
Lux: 2'064lx @3 m
Source life expectancy: > 50.000 h
OPTICS
Beam angle: 11°
Field angle: 19°
COLOUR SYSTEM
Colour mixing: RGBW / FC
White presets: 3.200 K -9.000K
Colour wheel: virtual colour wheel with presets
Macros: built-in white presets
DYNAMIC EFFECTS
Static colour mode: selection of static colour
Manual colour mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment
BODY

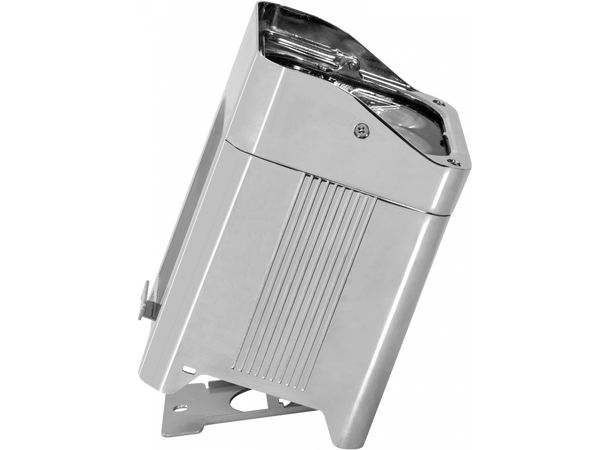

Tilt angle: 20° adjustable foot support for tilt regulation (up to 20°)
Body: sturdy die-cast aluminium body conceived for long-time durability
Body colour: mirror finishing
CONTROL
Protocols: W-DMX
DMX channels: 4 / 6 / 10channel
W-DMX: included, wireless solution receiver

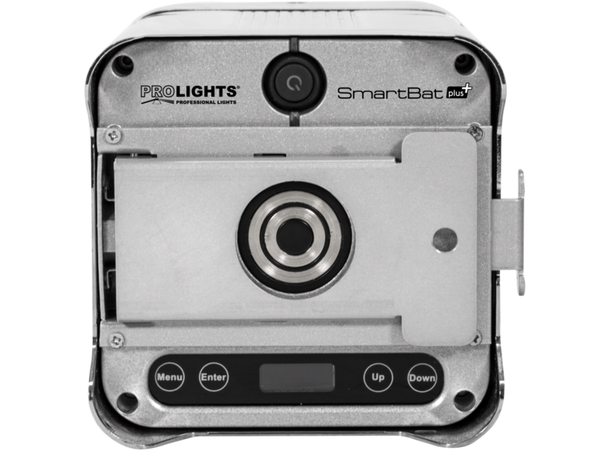

Display: black OLED touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
IR: infrared sensor controlled by remote
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 different dimming curves available
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: 0° ~ +35°
Flicker: flicker free operation
ELECTRICAL
Power supply: 100-240 V – 50/60 Hz (SBPLUSPOWER charger not included)
BATTERY
Battery: 16,8V lithium
Estimated battery life in colour change mode up to: 12h
Estimated battery life in full-mode up to: 8h
Re-charge connection: magnetic fast-charge in case
Re-charge time: 4h/max
Battery status: shown on display
PHYSICAL
Cooling: passive cooling and fan-free
Sospension and fixing: M12 threaded insert for easy clamp installation
Data connection: W-DMX receiver
IP rating: for temporary outdoor use - IP65 (front) - IP54 (bottom)
Dimensions (WxHxD): 138x202x145mm
Weight: 3,6kg
