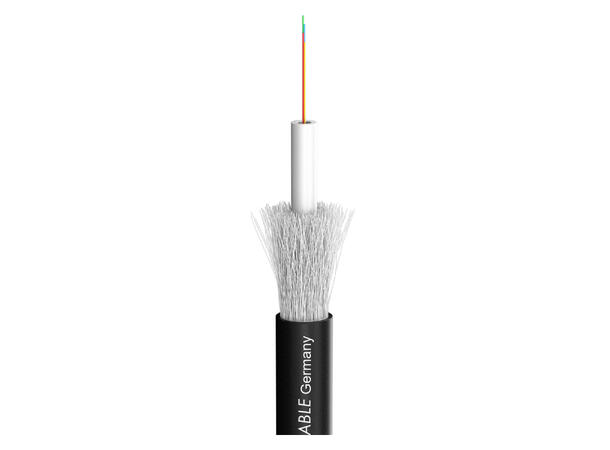

SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PUR-FRNC, sort SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, PUR-FRNC, sort

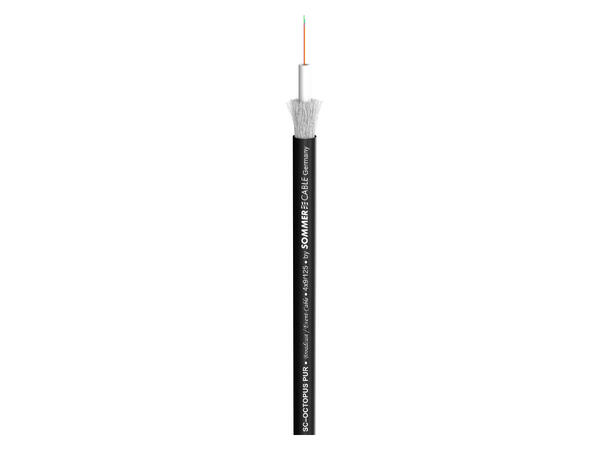

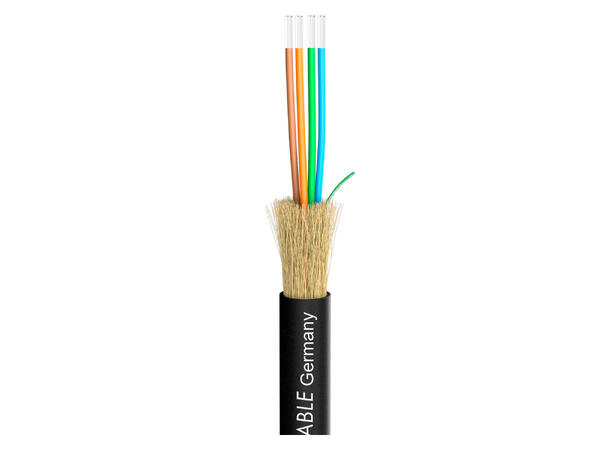

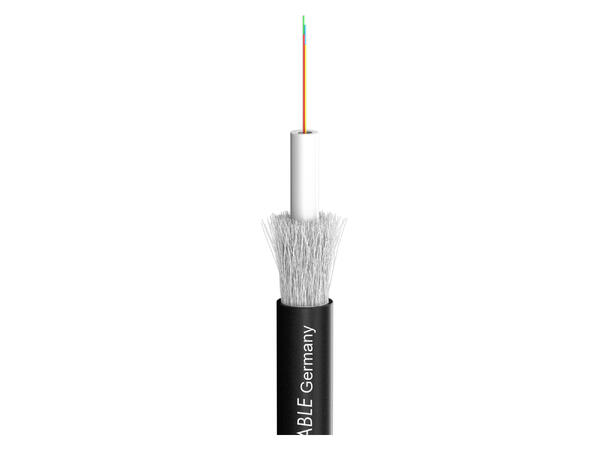

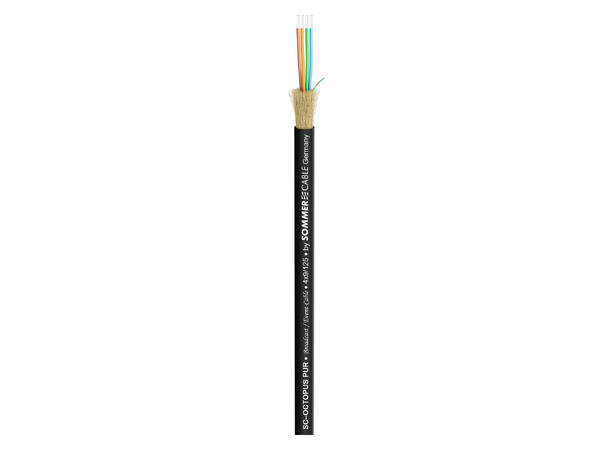

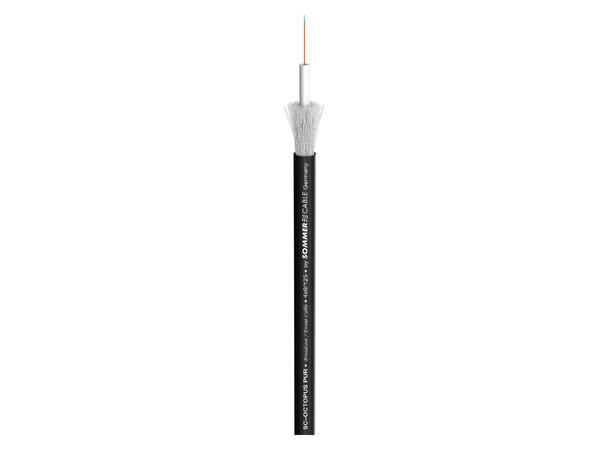

SOMMER Octopus-G Fiberkabel, OS2

4 x 9/125 µm OS2, PUR-FRNC, sort

Varenr: 141431
Alt. varenr: 590-0321-04
66,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
4 x 9/125 µm
4 x 9/125 µm
8 x 9/125 µm
8 x 9/125 µm

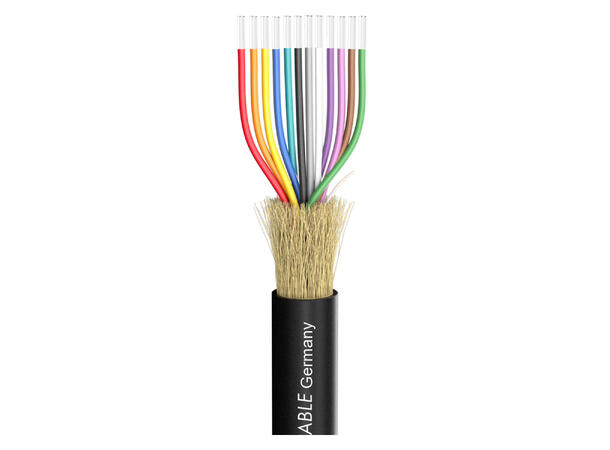

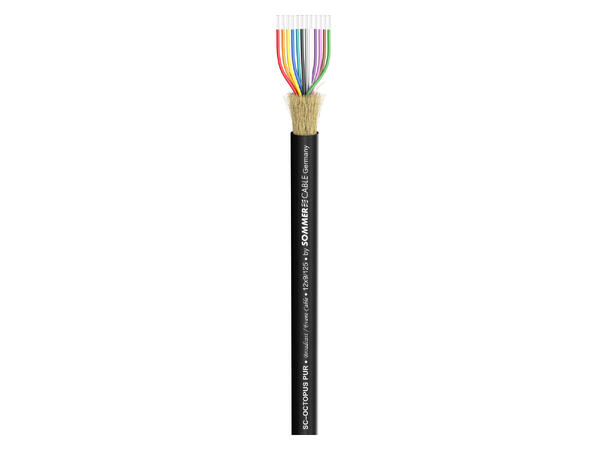

12 x 9/125 µm
12 x 9/125 µm
24 x 9/125 µm
24 x 9/125 µm

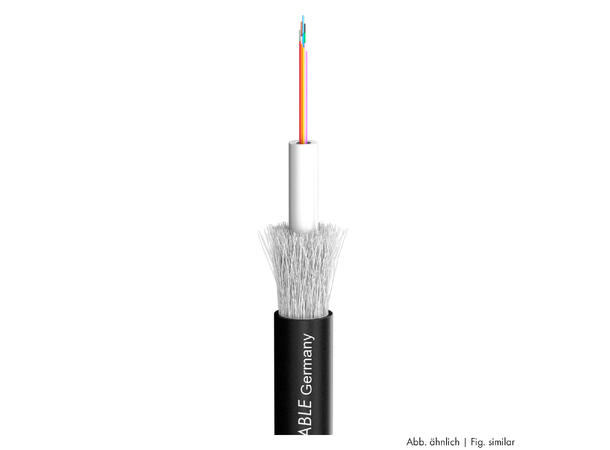

48 x 9/125 µm
48 x 9/125 µm
96 x 9/125 µm
96 x 9/125 µm
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

WARP 1...

or to be more precise, you will be able to reach the simple speed of
light with our SC-Octopus-G LWL cable.
The superfine single-mode/monomode fibre with 9/125 µm is ideal for greater running lengths, especially for permanent installation. Data rates of 50 Gbit/s can be transmitted here without the need for a repeater. The light coupling and fibre connection is more delicate than with the multimode fibre, which is why the multimode standard is more frequently used for mobile applications.

The SC-OCTOPUS-G PUR version is reelable, flame-retardant according to IEC332-1 and ideally suited for mobile applications.


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0321-04
NameSC-Octopus-G
EAN4049371005562
PropertiesPUR
PropertiesFRNC flame retardant
Application areaInstallation
Application areaStudio / Broadcast
Application areaMobile outdoor / indoor
ApplicationOptical fiber
Colourblack
Colour detailedblack

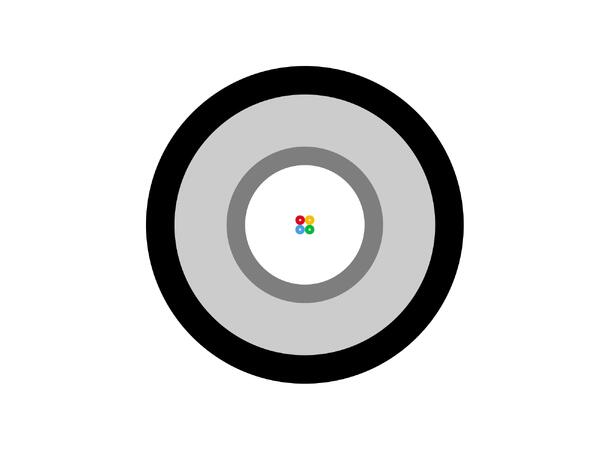

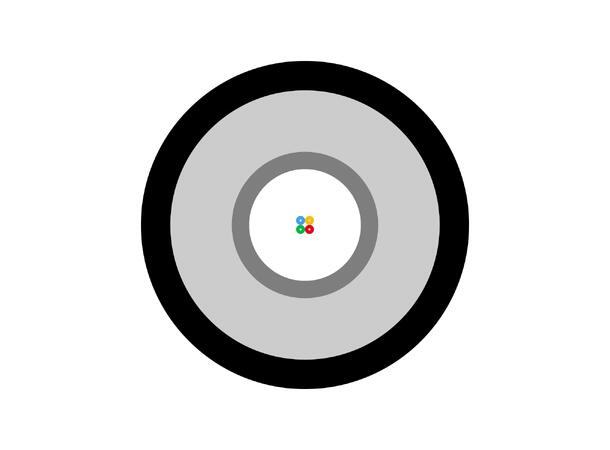

ConstructionA-V(ZN)11Y
Jacket materialPUR-FRNC
Jacket Ø mm5,50
Weight per 1 m g24
UV-resistantyes
Style variantround
Core (fiber) µm9
Cladding (fiber) µm125
Fibres4
QualityOS2
Temperature min. °C-40
Temperature max. °C85
Max. tensile force kN1
Width mm5,5
Height mm5,5
BPVo-EuroclassFca
