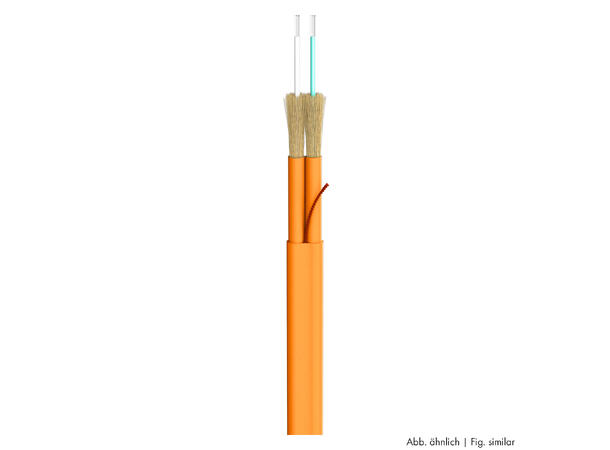

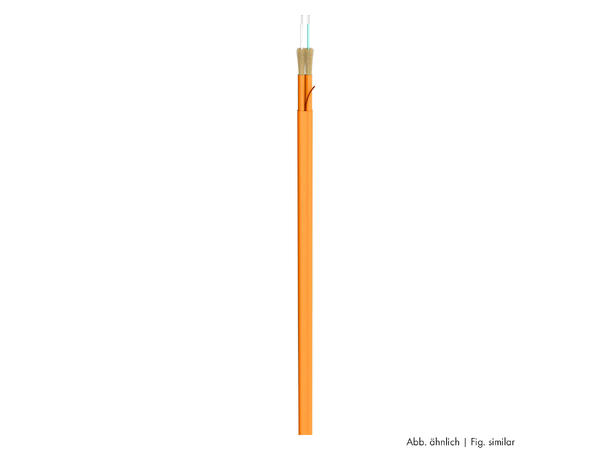

SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, LSZH , oransje SOMMER Octopus-G Fiberkabel, OS2 4 x 9/125 µm OS2, LSZH , oransje

SOMMER Octopus-G Fiberkabel, OS2

4 x 9/125 µm OS2, LSZH , oransje

Varenr: 141469
Alt. varenr: 590-0727-04
74,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Ledere
4 x 9/125 µm
4 x 9/125 µm
8 x 9/125 µm
8 x 9/125 µm
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

WARP 1...

or to be more precise, you will be able to reach the simple speed of
light with our SC-Octopus-G LWL cable.
The superfine single-mode/monomode fibre with 9/125 µm is ideal for greater running lengths, especially for permanent installation. Data rates of 50 Gbit/s can be transmitted here without the need for a repeater. The light coupling and fibre connection is more delicate than with the multimode fibre, which is why the multimode standard is more frequently used for mobile applications.

The Breakout LWL lines can be used for indoor floor applications and rack cabling.


Advantages:

  • Digital signal transmission over long distances
  • Compact, lightweight, robust and metal free
  • Die-electrical glass fibre armouring (rodent protection)

Application:

  • High-quality, fast connection for the transmission of digital signals
  • Powerful data network installation in complex buildings (e.g. from office buildings to airport facilities)
  • Indoor and outdoor transmissions with long transmission lengths


Specifications:

Article number590-0727-04
NameSC-Octopus-G
EAN4049371051378
Application areaMobile outdoor / indoor
Application areaInstallation
Application areaStudio / Broadcast
ApplicationOptical fiber
Colourorange
Colour detailedorange
ConstructionI-V(ZN)HH
Jacket materialLSZH
Jacket Ø mm8,50
Weight per 1 m g62
Style variantround
Core (fiber) µm9
Cladding (fiber) µm125
Fibres4
QualityOS2
Temperature min. °C-20
Temperature max. °C60
Max. tensile force kN0,4
Width mm6,8
Height mm8,5
Old article number590-0721-04
BPVo-EuroclassFca
Lenker & dokumenter
Produsentens hjemmesideDatablad
