SOMMER Transit 2 HD Videokabel 1 x 0,60/2,80, PVC Ø 10,20 mm, sort

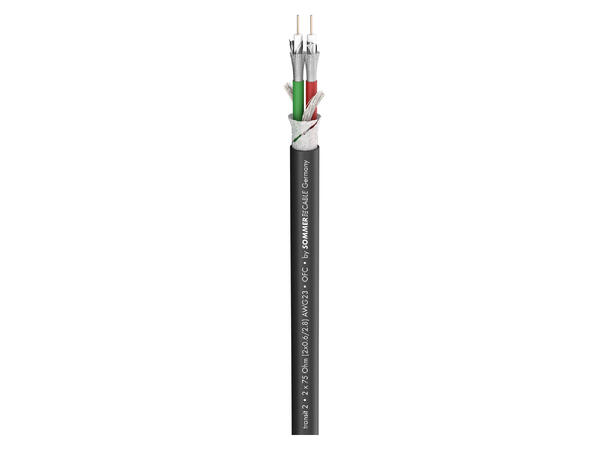

SOMMER Transit 2 HD Videokabel

1 x 0,60/2,80, PVC Ø 10,20 mm, sort

Varenr: 141761

Alt. varenr: 600-0851-02

66,-eks. mva

Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.

Ytterkappe, materiale

PVC

FRNC

Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.

Beskrivelse

For everyone needing a long line...

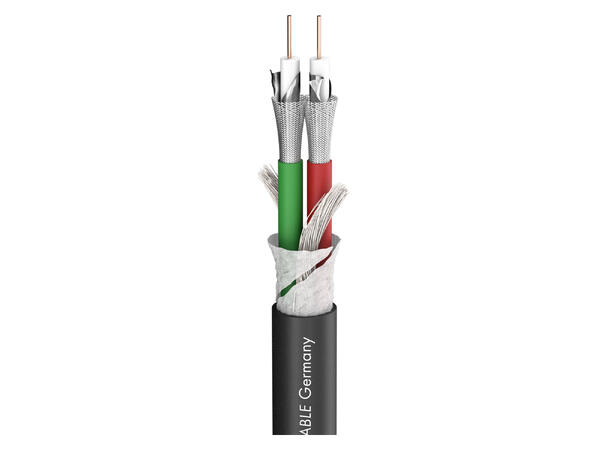

our however is recommenced for extreme lengths exceeding 40 m. But it is also preferred for short distances in professional video studios where it guarantees an image which is totally devoid of shadows and flickering. The Transit 2 HD impresses with its high flexibility, extended functionality and dual shielding (Cu mesh screen + AL/PT foil) of the single wires.

Advantages:

Dependable and very high-quality image transmission over long distances
Very good damping and transmission values even with excessive lengths

Application:

For permanent installation over long distances (theatres, sports arenas,
media & conference centres)

Specifications:

Article number	600-0851-02
Name	Transit 2 HD
EAN	4049371001656
Properties	SDI
Properties	Halogen-free / LSZH
Properties	Digital 75 O
Properties	HDTV
Properties	OFC oxygen free copper
Properties	Analog
Application area	Studio / Broadcast
Application area	Mobile outdoor / indoor
Application area	Installation
Application area	ELA 100 V
Application	video cable
Colour	black
Colour detailed	black
Construction	2x2YS(ST)CY0,6/2,8
Construction (video)	2YS(ST)CY0,6/2,8
Jacket material	PVC
Jacket Ø mm	10,20
Number of Channels (video)	1
Inner conductor (video)	2
Inner conductor (video) mm²	0,28
Inner conductor Ø (video) mm	0,60
AWG (video)	23
Shielding	Copper braiding tin-plated 90 % + AL / PT-foil
Shielding factor %	100
Copper strands (video)	1
Copper strand Ø (video) mm	0,60
Conductor insulation material	Gas-injected Foam / Skin-PE
Conductor insulation Ø (video) mm	2,80
Weight per 1 m g	30
UV-resistant	yes
Fire load per m kWh	0,101
Style variant	round
Packing	bulk stock
Temperature min. °C	-20
Temperature max. °C	80

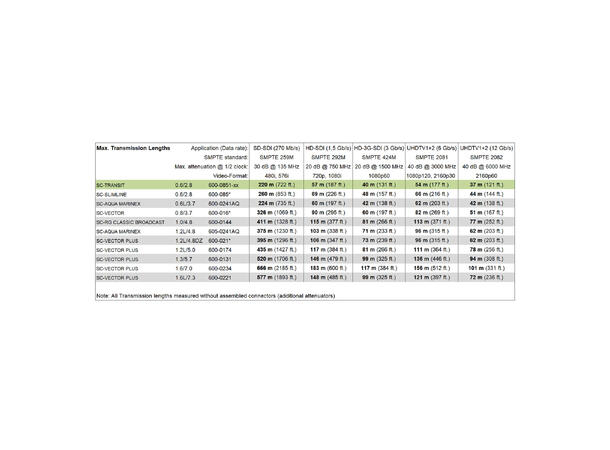

Max. transmission distance (SDI) m	180
Max. transmission distance (HD-SDI) m	120
Max. transmission distance (3G) m	60
Width mm	10,2
Height mm	10,2
Capacity wire/electic screen at 1m (video) pF	55
Capacity wire/electic screen at 1 ft. (video) pF	16,764

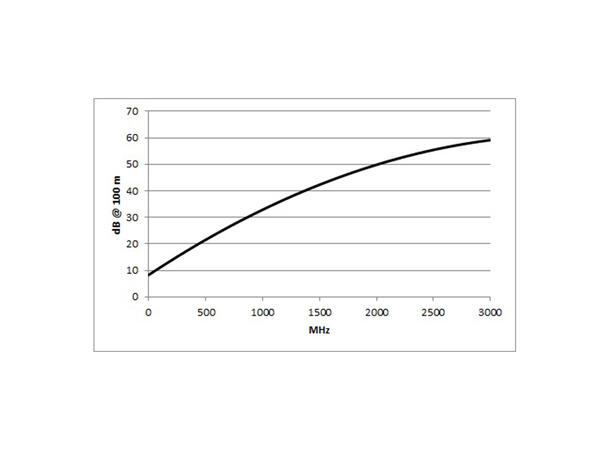

Damping at 5 MHz (100m & 20° C) dB	2,5
Damping at 5 MHz (100 ft. & 20 °C / 68 °F) dB	0,762
Damping at 50 MHz (100m & 20° C) dB	7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB	2,225
Damping at 100 MHz (100m & 20° C) dB	10,4
Damping at 100 MHz (100 ft. & 20 °C / 68 °F) dB	3,1699
Damping at 200 MHz (100m & 20° C) dB	14,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB	4,4196
Damping at 470 MHz (100m & 20° C) dB	22,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB	6,919
Damping at 862 MHz (100m & 20° C) dB	31,1
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB	9,4793
Damping at 1000 MHz (100m & 20° C) dB	33,6
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB	10,2413
Damping at 1485 MHz (100m & 20° C) dB	41,5
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB	12,6492
Damping at 1750 MHz (100m & 20° C) dB	45,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB	13,777
Damping at 2150 MHz (100m & 20° C) dB	50,9
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB	15,5143
Damping at 3000 MHz (100m & 20° C) dB	60
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB	18,288
Impedance O	75
BPVo-Euroclass	Fca
