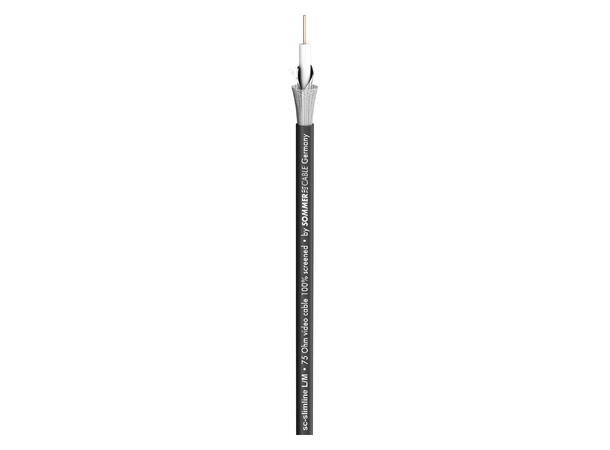

SOMMER Slimline Videokabel

1 x 0,60, FRNC Ø 4,20 mm, sort

Varenr: 141767
Alt. varenr: 600-0851F
27,-eks. mva
Logg inn for å se dine nettopriser.
Ikke kunde? Søk om forhandlerstatus.
Farge
Sort
Sort
Grønn
Grønn
Gul
Gul
Oransje
Oransje
Lilla
Lilla

Dette produktet selges kun i hele ruller.

Tilgjengelige lengder:
SommerPacking
  • 100m
  • 500m
  • 1000m
Bestillingsvare, bestilles ved ordre. Ta kontakt for leveringstid.
BeskrivelseLenker & dokumenter
Beskrivelse

Looking for the superstar...

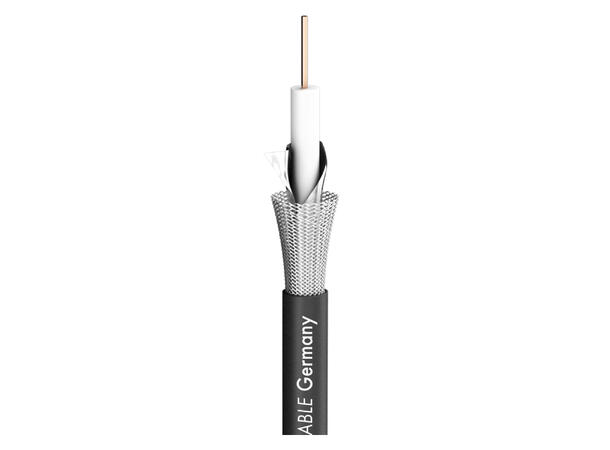

among the video and sat cables? The SC-Slimline RCB meets all requirements put on high-quality HD-SDI/HDTV cables these days and, owing to the use of high-grade materials, promises a long service life. To achieve super low damping values, we have fitted the cable with a massive OFC (oxygen-free copper) wire, a gas-injected insulation and a dual screen (Cu mesh screen + AL/PT foil).


Advantages:

  • Long life due to non-aging jacket
  • Consistent, optimised electrical values due to the use of a massive
    OFC wire
  • Gas-injected insulation for best damping values

Application:

  • HD-SDI-video transmission in the professional broadcasting/studio sector
  • OB van technology
  • Permanent installation, HF technology and antenna construction


Specifications:

Article number600-0851F
NameSC-Slimline
EAN4049371051422
PropertiesAnalog
PropertiesFRNC flame retardant
PropertiesSDI
PropertiesHDTV
PropertiesDigital 75 O
PropertiesHalogen-free / LSZH
PropertiesOFC oxygen free copper
Application areaELA 100 V
Application areaInstallation
Applicationvideo cable
Colourblack
Colour detailedblack

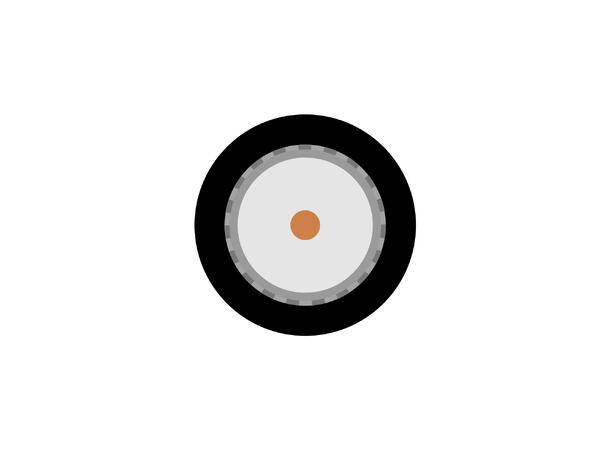

Construction02YS(ST)CH0,6/2,8 HD-SDI
Jacket materialFRNC
Jacket Ø mm4,20
Number of Channels (video)1
Inner conductor (video)1
Inner conductor (video) mm²0,28
Inner conductor Ø (video) mm0,60
AWG (video)23
ShieldingCopper braiding tin-plated + AL / PT foil
Shielding factor %100
Copper strands (video)1
Copper strand Ø (video) mm0,60
Conductor insulation materialGas Injected-PE
Conductor insulation Ø mm2,80
Weight per 1 m g22
UV-resistantyes
Fire load per m kWh0,06
Style variantround
Packing500 m spool
Packing1000 m spool
Packing100 m spool
Velocity factor0,82
Temperature min. °C-30
Temperature max. °C70

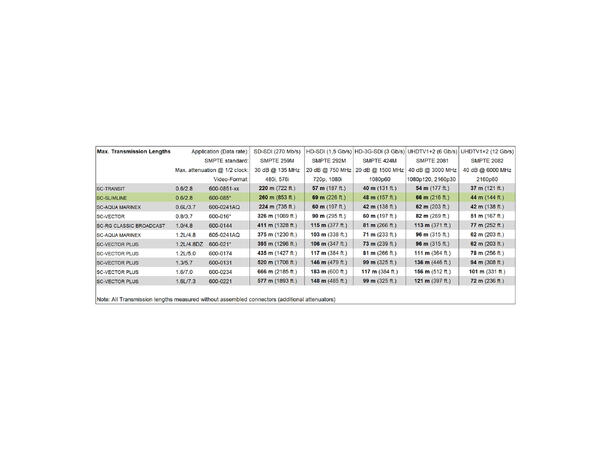

Max. transmission distance (SDI) m120
Max. transmission distance (HD-SDI) m100
Max. transmission distance (3G) m30
Width mm4,2
Height mm4,2
Capacity wire/wire at 1m (video) pF53
Capacity wire/wire at 1 ft. (video) pF16,1544
Damping at 50 MHz (100m & 20° C) dB7,3
Damping at 50 MHz (100 ft. & 20 °C / 68 °F) dB2,225
Damping at 200 MHz (100m & 20° C) dB14,5
Damping at 200 MHz (100 ft. & 20 °C / 68 °F) dB4,4196
Damping at 470 MHz (100m & 20° C) dB22,7
Damping at 470 MHz (100 ft. & 20 °C / 68 °F) dB6,919
Damping at 862 MHz (100m & 20° C) dB31,1
Damping at 862 MHz (100 ft. & 20 °C / 68 °F) dB9,4793
Damping at 1000 MHz (100m & 20° C) dB33,6
Damping at 1000 MHz (100 ft. & 20 °C / 68 °F) dB10,2413
Damping at 1485 MHz (100m & 20° C) dB41,2
Damping at 1485 MHz (100 ft. & 20 °C / 68 °F) dB12,5578
Damping at 1750 MHz (100m & 20° C) dB45,2
Damping at 1750 MHz (100 ft. & 20 °C / 68 °F) dB13,777
Damping at 2150 MHz (100m & 20° C) dB50,9
Damping at 2150 MHz (100 ft. & 20 °C / 68 °F) dB15,5143
Damping at 3000 MHz (100m & 20° C) dB89,8
Damping at 3000 MHz (100 ft. & 20 °C / 68 °F) dB27,371
Impedance O75
Shield. resistance per 1 km O90
Shield. resistance per 1000 ft. O27,432
BPVo-EuroclassFca
