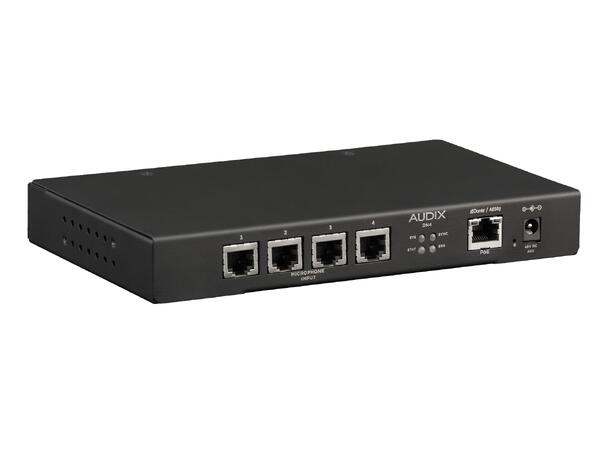

AUDIX DN4 Dante microphone interface

The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions – including on-off contact closure and LED status indicators – are available through a single CAT5 – CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost.

• Compatible with all Audix RJ45-equipped, single-element, analog microphones
• High-fidelity 24-bit, 48kHz audio
• Balanced audio inputs with RFI filtering
• 48V phantom power output
• Each channel has eight selectable pre-amp gain levels, as well as low- and high-pass filters
• All channels controlled independently
• Flash memory prevents loss of settings in the event of power loss
• Supports AES67 audio streams
• Dante Domain Manager (DDM) ready
• Dynamic or static IP address
• Evaluated to the requirement of UL2043 and is suitable for use in above-ceiling applications
